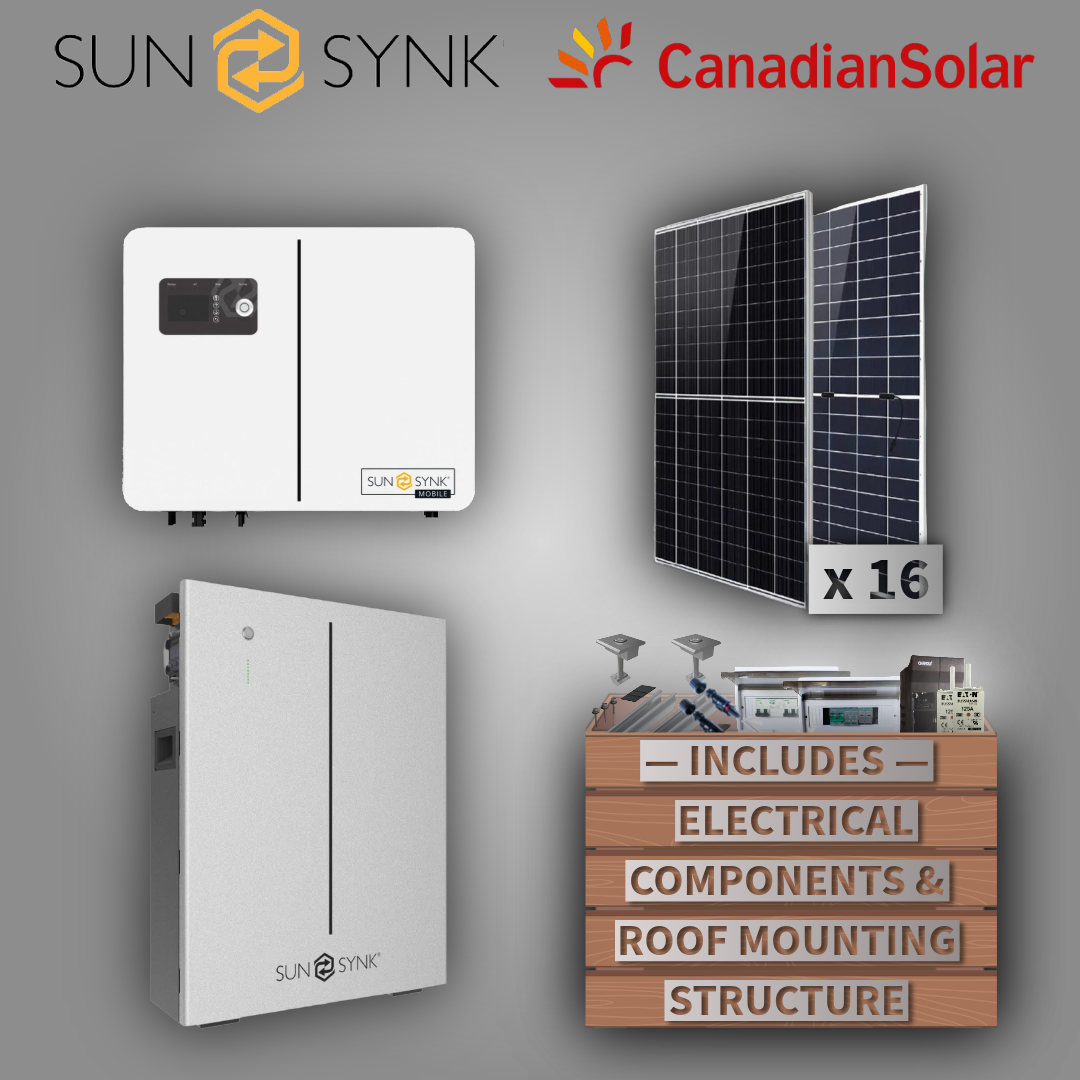

Sunsynk 8kW Lynks Inverter + Sunsynk 10.24kWh W Series + 16 Canadian Solar Panels
Couldn't load pickup availability
Sunsynk 8kW Lynks Inverter + Sunsynk 10.24kWh W Series Battery + 16 Canadian Solar Panels
🆔 Models
Inverter: Sunsynk 8kW Lynks Hybrid Inverter
Battery: Sunsynk 10.24 kWh Lithium Iron Phosphate Battery — W Series (51.2V)
Panels: 16 × Canadian Solar Panels (high-efficiency monocrystalline)
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X16
250A Battery Fuse Disconnector X1
🏷️ Brand
Sunsynk
🔌 Type
Hybrid Solar Inverter + Lithium Battery + Solar Panel Kit
Designed for medium–large homes, businesses, and high-demand backup or solar systems.
⚡ Key Features
🔆 Sunsynk 8kW Lynks Hybrid Inverter
-
8kW continuous output — handles larger homes & higher load demands
-
Dual MPPT for powerful solar harvesting
-
Ultra-fast switching (<10ms) — ideal for loadshedding
-
Supports Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Smart load control & fully programmable charging
-
Sunsynk Connect app included — Wi-Fi monitoring
-
Parallel-capable for bigger systems
-
Generator integration supported
-
Durable & efficient even under daily heavy usage
🔋 Sunsynk 10.24 kWh Battery — W Series
-
10.24 kWh storage (≈9.7 kWh usable at 95% DoD)
-
Premium LiFePO₄ chemistry — maximum safety & long lifespan
-
Intelligent BMS with CAN/RS485 communication
-
Can be wall-mounted or floor-mounted
-
High discharge capability ideal for 8kW systems
-
Long life (6000+ cycles)
-
Expandable — add more W Series units as needed
☀️ Canadian Solar Panels (16 Units)
-
High-efficiency monocrystalline modules
-
Excellent durability & strong energy yield
-
Suitable for homes, businesses, and hybrid solar setups
📐 Specifications
Inverter — Sunsynk 8kW Lynks
| Specification | Value |
|---|---|
| Rated Power | 8 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ± 10.4 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Sunsynk 10.24 kWh W Series
| Specification | Value |
|---|---|
| Nominal Energy | 10.24 kWh |
| Usable Energy | ± 9.7 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ |
| Nominal Capacity | 200 Ah |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | 100 A |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| Parallel Capability | Yes |
| Mounting | Wall/Floor |
| Operating Temp | –20 °C to +55 °C |
🏷️ Quality & Support
This high-performance Sunsynk kit is designed for users who need strong daily solar production and reliable backup during loadshedding. The 8kW Lynks inverter delivers excellent power output and advanced hybrid functionality, while the 10.24kWh W Series battery provides long-lasting, safe energy storage. Paired with 16 Canadian Solar panels, this kit ensures exceptional solar generation and long-term reliability.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
