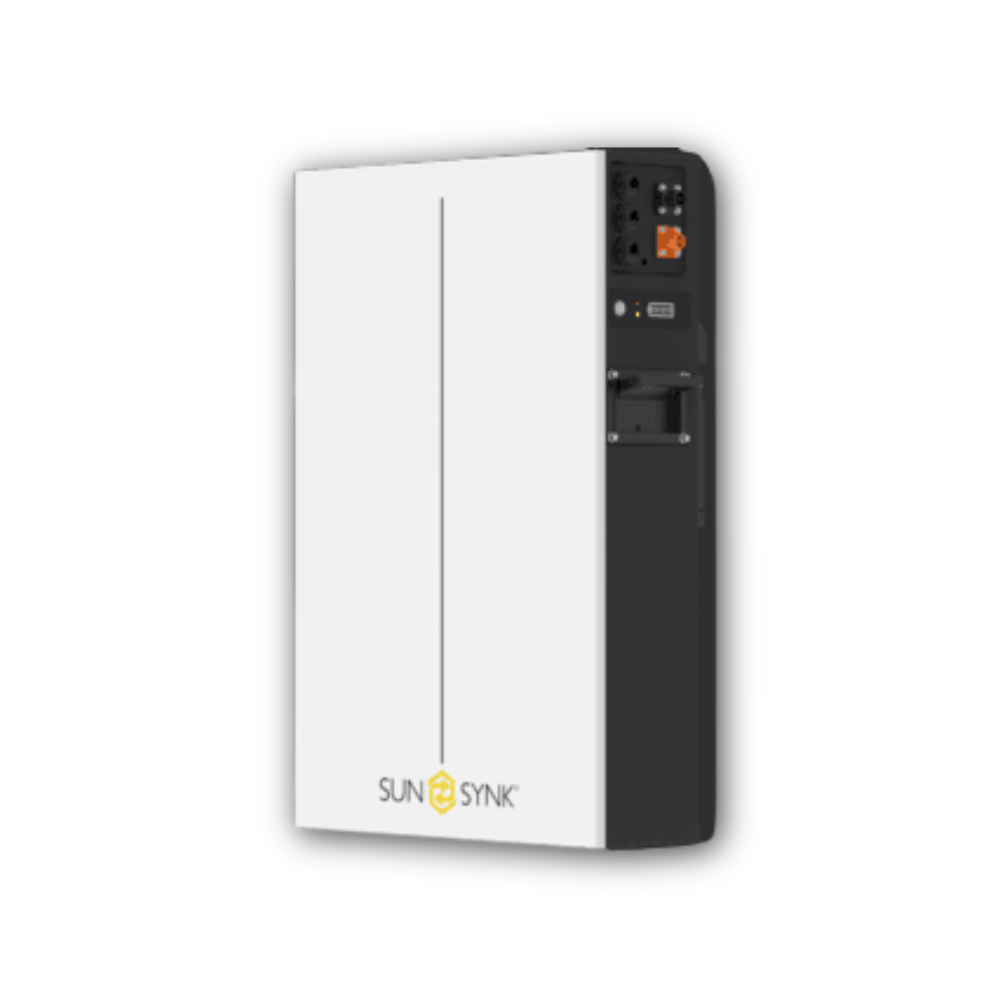

Sunsynk X-Series 10.24 kWh 51.2 V Battery
Couldn't load pickup availability
Model: X-Series 10.24 kWh
Brand: Sunsynk
Type: LiFePO₄ (Lithium Iron Phosphate) Battery Module
Nominal Voltage: 51.2 V
⚡ Key Features
-
10.24 kWh usable capacity — ample storage for home solar systems, backup power, or hybrid installations
-
LiFePO₄ chemistry — safe, stable, and long-life battery cells
-
High cycle life — designed for many charge/discharge cycles, ideal for daily use or backup requirements
-
Integrated Battery Management System (BMS) — ensures balanced charging, over/under-voltage protection, temperature and over-current safety
-
Scalable & modular design — stack or parallel multiple units to expand storage capacity as needed
-
Compatible with 48 V / 51.2 V hybrid inverters — great match for a variety of inverter brands and setups
-
Compact & rack-mount friendly form factor — suitable for homes, cabins, or small commercial installations
📐 Specifications (Typical for 10.24 kWh module)
| Specification | Value / Description |
|---|---|
| Nominal Energy | 10.24 kWh |
| Nominal Voltage | 51.2 V DC |
| Battery Type | LiFePO₄ (LFP) |
| Usable Capacity | ~10.24 kWh (depending on Depth of Discharge) |
| Rated Capacity (Ah) | ~200 Ah (approximate, based on 51.2 V × 200 Ah ≈ 10.24 kWh) |
| Chemistry Benefits | Thermal stability, safety under load, long cycle life |
| BMS Protection | Over-voltage, under-voltage, over-current, temperature, cell-balancing |
| Scalability | Multiple modules can be linked / paralleled |
| Mounting Options | Rack-mount or cabinet, suitable for indoor battery enclosures |
| Application Use | Solar + battery systems, backup power, hybrid inverters, self-consumption setups |
🏡 Use Cases & Support
The Sunsynk X-Series 10.24 kWh battery is ideal for homeowners or small businesses looking for a robust, safe energy storage solution. It works well for solar-plus-storage systems, backup supply during load shedding, and hybrid solar + grid installs. Its modular design lets you expand capacity over time as energy needs grow.
