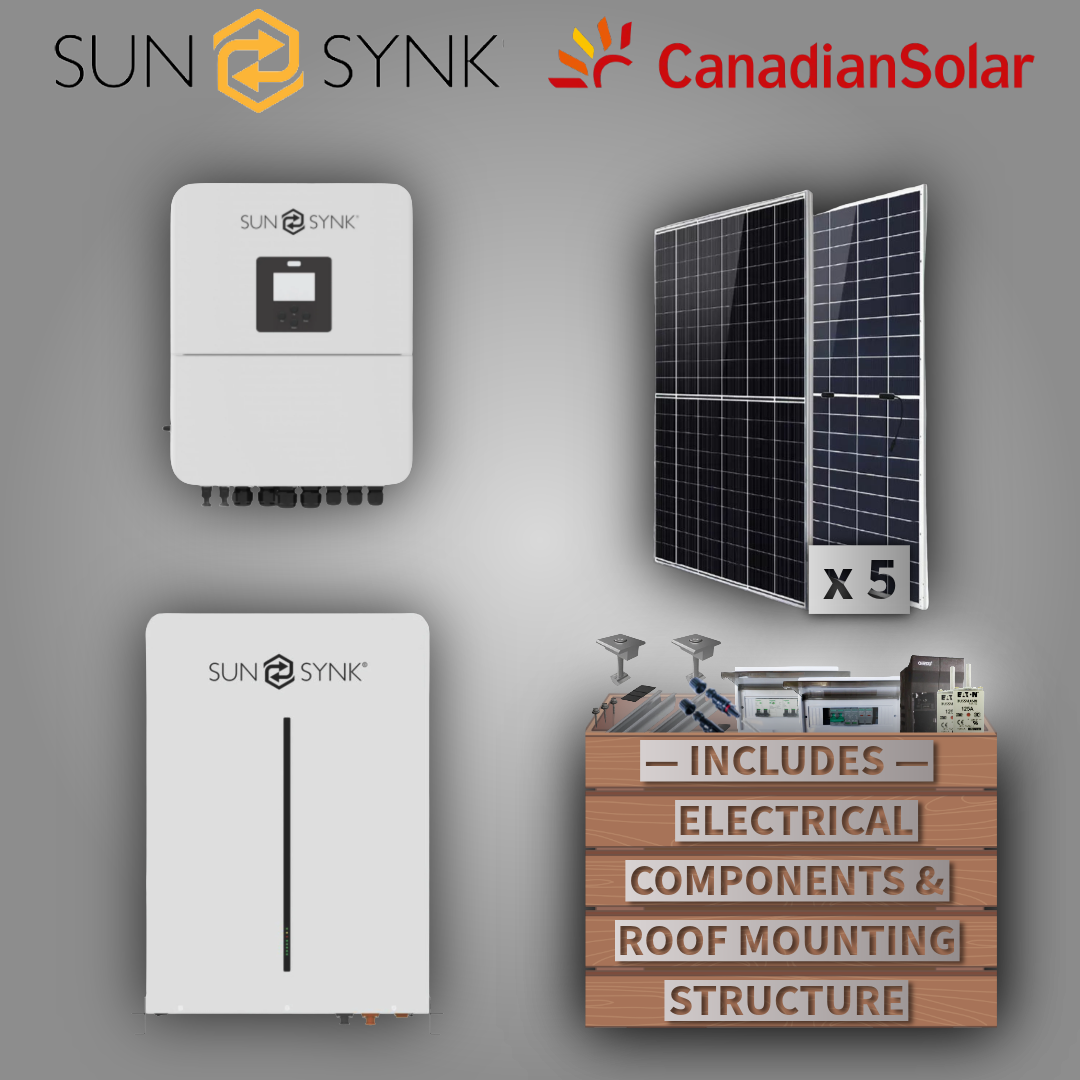

Sunsynk 5kW 1P Inverter + Sunsynk 5,12 kWh G Series + 5 Canadian Solar Panels
Couldn't load pickup availability
Sunsynk 5kW 1P Inverter + Sunsynk 5.12kWh G Series Battery + 5 Canadian Solar Panels
🆔 Models
Inverter: Sunsynk 5kW 1-Phase Hybrid Inverter (LV)
Battery: Sunsynk 5.12 kWh Lithium Iron Phosphate Battery — G Series (51.2V)
Panels: 5 × Canadian Solar Panels (high-efficiency monocrystalline)
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X5
160A Battery Fuse Disconnector X1
🏷️ Brand
Sunsynk
🔌 Type
Hybrid Solar Inverter + Lithium Battery + Solar Panel Kit
Perfect for medium homes, backup systems, and solar energy optimisation.
⚡ Key Features
NB: 10 YEAR MANUFACTURER WARRANTY FOR SUNSYNK INVERTERS AND BATTERIES WHEN USED TOGETHER
🔆 Sunsynk 5kW 1P Hybrid Inverter
-
5kW continuous output — ideal for medium-sized households
-
Dual MPPT for efficient solar power harvesting
-
Ultra-fast switching (<10 ms) — excellent for loadshedding
-
Supports Grid-Tie, Hybrid, Off-Grid & Zero-Export modes
-
Programmable charging, smart load control & advanced scheduling
-
Built-in Wi-Fi for Sunsynk Connect remote monitoring
-
Supports generator integration
-
Parallel-ready for larger systems
🔋 Sunsynk 5.12 kWh Battery — G Series
-
5.12 kWh total capacity (±4.8 kWh usable @ 95% DoD)
-
Long-lasting LiFePO₄ chemistry for safety & durability
-
Smart BMS with CAN/RS485 communication
-
Compact, wall-mounted design ideal for residential spaces
-
Supports high cycle life (6000+ cycles)
-
Expandable — add multiple G Series batteries as needed
☀️ Canadian Solar Panels (5 Units)
-
High-efficiency monocrystalline modules
-
Excellent long-term power performance
-
Suitable for rooftop or ground-mount systems
📐 Specifications
Inverter — Sunsynk 5kW 1P
| Specification | Value |
|---|---|
| Rated Power | 5 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ± 6.5 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Sunsynk 5.12 kWh G Series
| Specification | Value |
|---|---|
| Nominal Energy | 5.12 kWh |
| Usable Energy | ± 4.8 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ |
| Nominal Capacity | 100 Ah |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | 50–100 A (model dependent) |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| Parallel Capability | Yes |
| Mounting | Wall-Mount |
| Operating Temp | –20 °C to +55 °C |
🏷️ Quality & Support
This Sunsynk power kit is a dependable and efficient solution for homes looking to reduce electricity costs and maintain backup power during loadshedding. The 5kW inverter offers strong daily performance, while the 5.12kWh G Series battery provides reliable storage and long cycle life. With 5 Canadian Solar panels included, this kit offers a balanced and scalable solar-ready energy solution.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
