Sunsynk 5kW 1P Hybrid Inverter (LV) (New Gen)
Couldn't load pickup availability

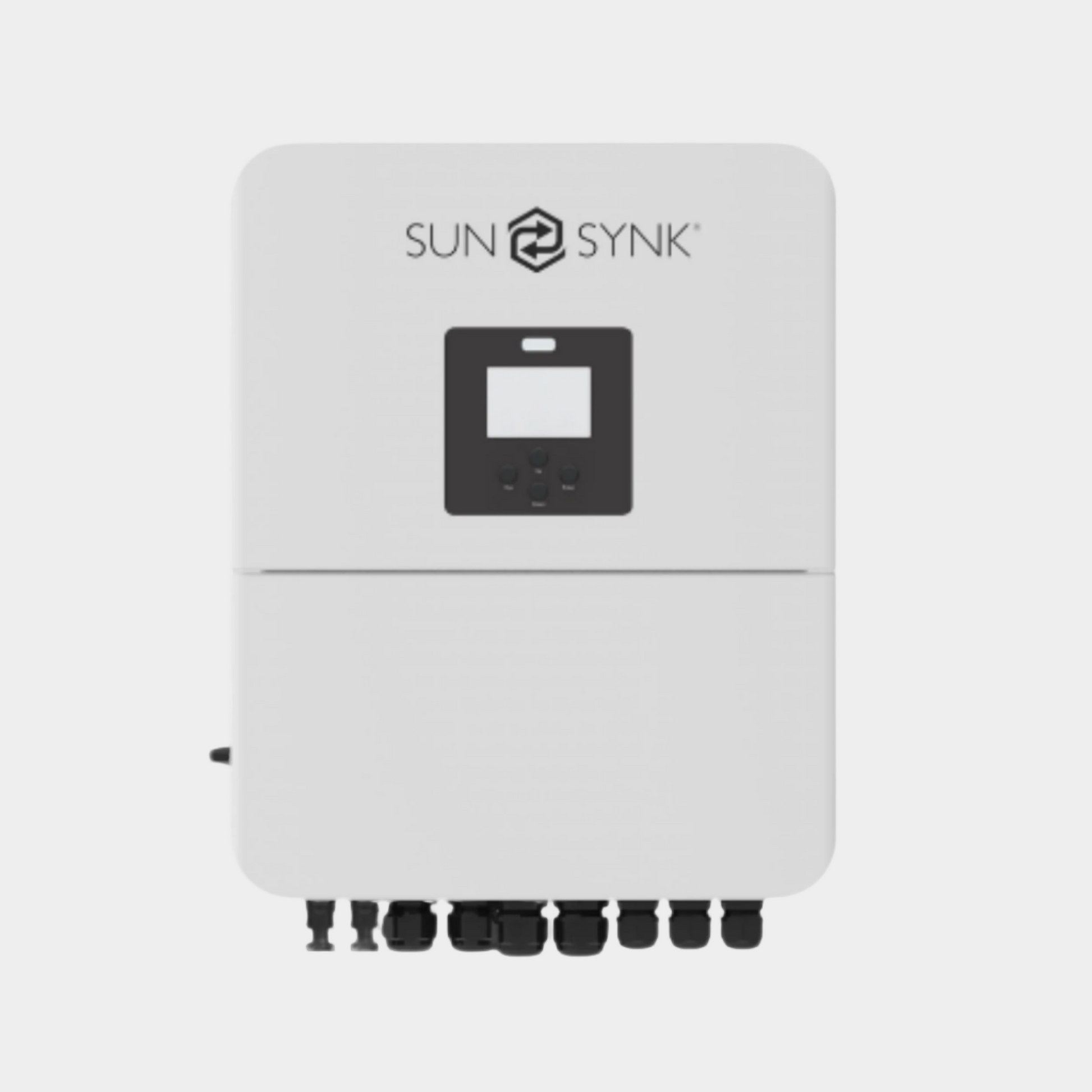

🔌 Sunsynk 5kW 1P Hybrid Inverter (SYK-SG04LP1-5KW-L)
Brand: Sunsynk
Model: SYK-SG04LP1-5KW-L
Type: Single-Phase Low-Voltage Hybrid Inverter (Solar + Battery + Grid)
⚡ Key Features
• 5 kW rated AC output — ideal for residential solar and load-shedding backup systems
• Low-voltage battery support (40–60 V) — compatible with most 48 V lithium battery systems
• Hybrid functionality — integrates solar PV generation, battery storage and grid interaction
• Dual MPPT trackers — optimises solar generation from multiple roof orientations
• High PV input capacity — supports oversizing of the solar array for improved energy harvest
• Outdoor-ready IP65 enclosure — suitable for indoor or outdoor installation
• Smart monitoring — WiFi, RS485 and CAN communication options for system monitoring and control
• Parallel capability — allows multiple units to operate together for larger system capacity
📐 Technical Specifications (SPEC SHEET)
| Specification | Value |
|---|---|
| Model | SYK-SG04LP1-5KW-L |
| Rated AC Output Power | 5 kW |
| Battery Voltage Range | 40 – 60 V |
| Max Battery Charge / Discharge Current | 120 A |
| Number of MPPTs | 2 |
| Max PV Input Power | ~8 kW DC |
| MPPT Voltage Range | 150 – 425 V |
| Max PV Input Voltage | ~500 V DC |
| Maximum Efficiency | ~97.6% |
| Protection Rating | IP65 |
| Communication | WiFi / RS485 / CAN |
| Dimensions (W × H × D) | 330 × 433 × 238 mm |
| Weight | ~19 kg |
| Warranty | 5 Years (installation dependent) |
🏷️ Quality & Support
The Sunsynk 5 kW Single-Phase Hybrid Inverter is designed for reliable residential solar installations with integrated battery storage. Its dual MPPT inputs, high PV capacity, and flexible hybrid operation make it ideal for maximising solar energy use while providing dependable backup during power outages. The inverter’s IP65-rated enclosure and smart monitoring capabilities ensure durability, control, and long-term system performance.
