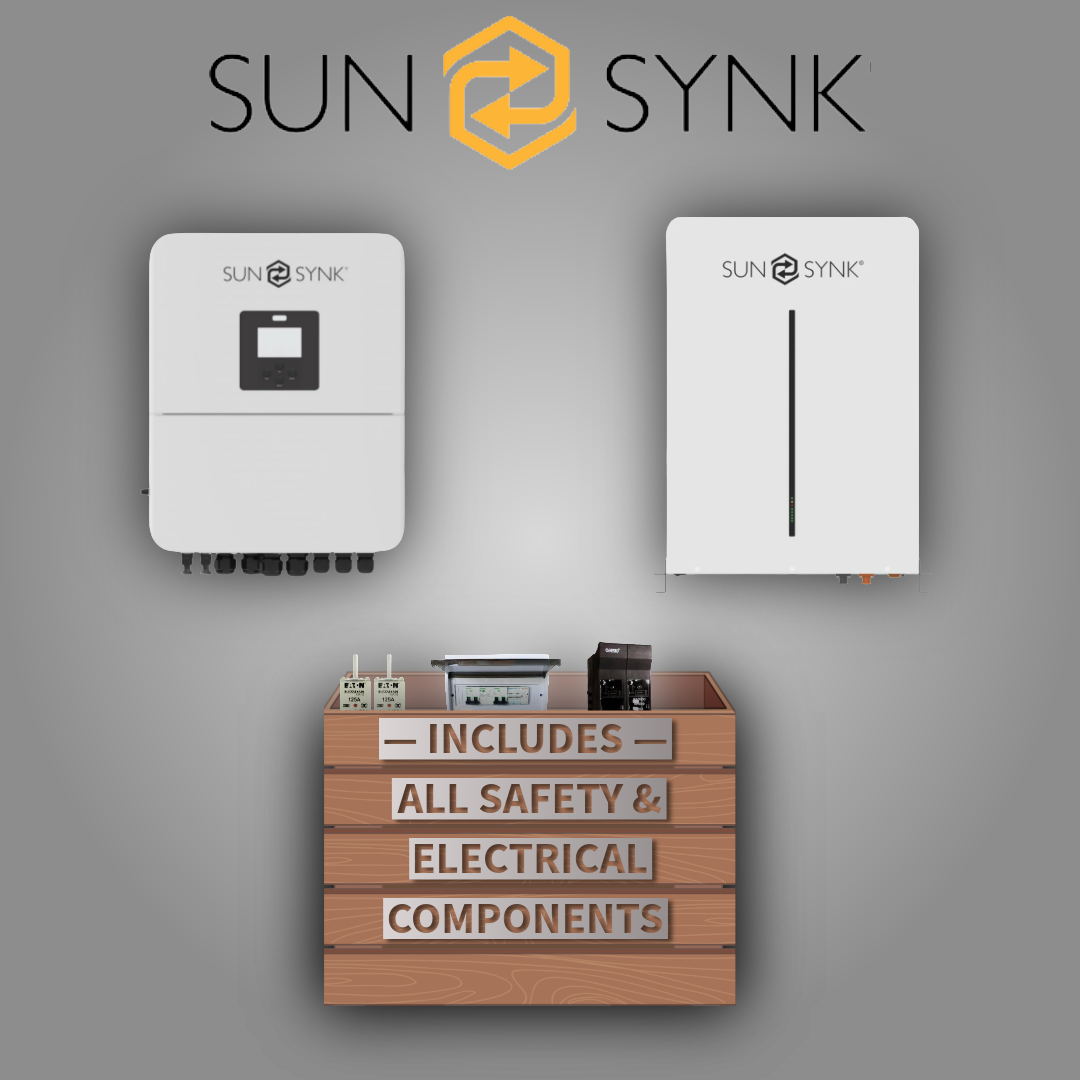

Sunsynk 5kW Inverter + Sunsynk 5,12 kWh Li-Ion Battery G Series
Couldn't load pickup availability
Sunsynk 5kW LV Hybrid Inverter (SYK-SG04LP1-5KW-L) + Sunsynk 5.12kWh Li-Ion Battery G Series
🆔 Models
160A Battery Fuse Disconnector X1
🏷️ Brand
Sunsynk
🔌 Type
Hybrid Inverter + Low-Voltage Lithium Battery Storage System
⚙️ Key Features
🔆 Sunsynk 5kW LV Hybrid Inverter (SYK-SG04LP1-5KW-L)
-
5kW rated output for home energy systems
-
Low-voltage 48V battery compatibility
-
Dual MPPT for efficient solar harvesting
-
Fast switchover for backup applications
-
Supports time-of-use control, load shifting, and zero-export
-
Wi-Fi enabled monitoring via Sunsynk App
-
Supports parallel expansion for higher power systems
🔋 Sunsynk 5.12kWh LiFePO₄ Battery (G Series)
-
True 5.12kWh capacity (approx. 4.86 kWh usable @95% DoD)
-
Long lifespan — 6000+ cycle life
-
High-safety LiFePO₄ (LFP) chemistry
-
Intelligent BMS with CAN/RS485 communication
-
Modular & expandable — ideal for growing systems
-
Compact rack-mount or wall-mount design
📐 Specifications
Inverter — SYK-SG04LP1-5KW-L
| Parameter | Value |
|---|---|
| Rated Power | 5kW |
| Battery Voltage | 48V LV |
| Phase | Single-Phase |
| MPPT | 2 × MPPT |
| Max PV Input | ± 6.5–7kW |
| Max Efficiency | ~97.6% |
| Switching Time | <10ms |
| Communications | CAN / RS485 / Wi-Fi |
| Modes | Hybrid, Off-Grid, Grid-Tie |
| Parallel | Yes (multiple units) |
Battery — Sunsynk 5.12kWh G Series
| Parameter | Value |
|---|---|
| Nominal Energy | 5.12 kWh |
| Usable Energy | ± 4.86 kWh |
| Nominal Voltage | 51.2V |
| Chemistry | LiFePO₄ |
| Rated Capacity | 100Ah |
| Cycle Life | 6000+ |
| Max Charge/Discharge | 100A |
| Communication | CAN / RS485 |
| Mounting | Rack / Wall-Mounted |
| Expandable | Yes (parallel) |
🏷️ Quality & Support
This Sunsynk bundle delivers dependable hybrid power performance, combining the stable 5kW LV inverter with Sunsynk’s durable 5.12kWh G-Series battery. Suitable for homes needing reliable backup, solar optimisation, and expandable storage — all backed by Sunsynk’s ecosystem and support.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
