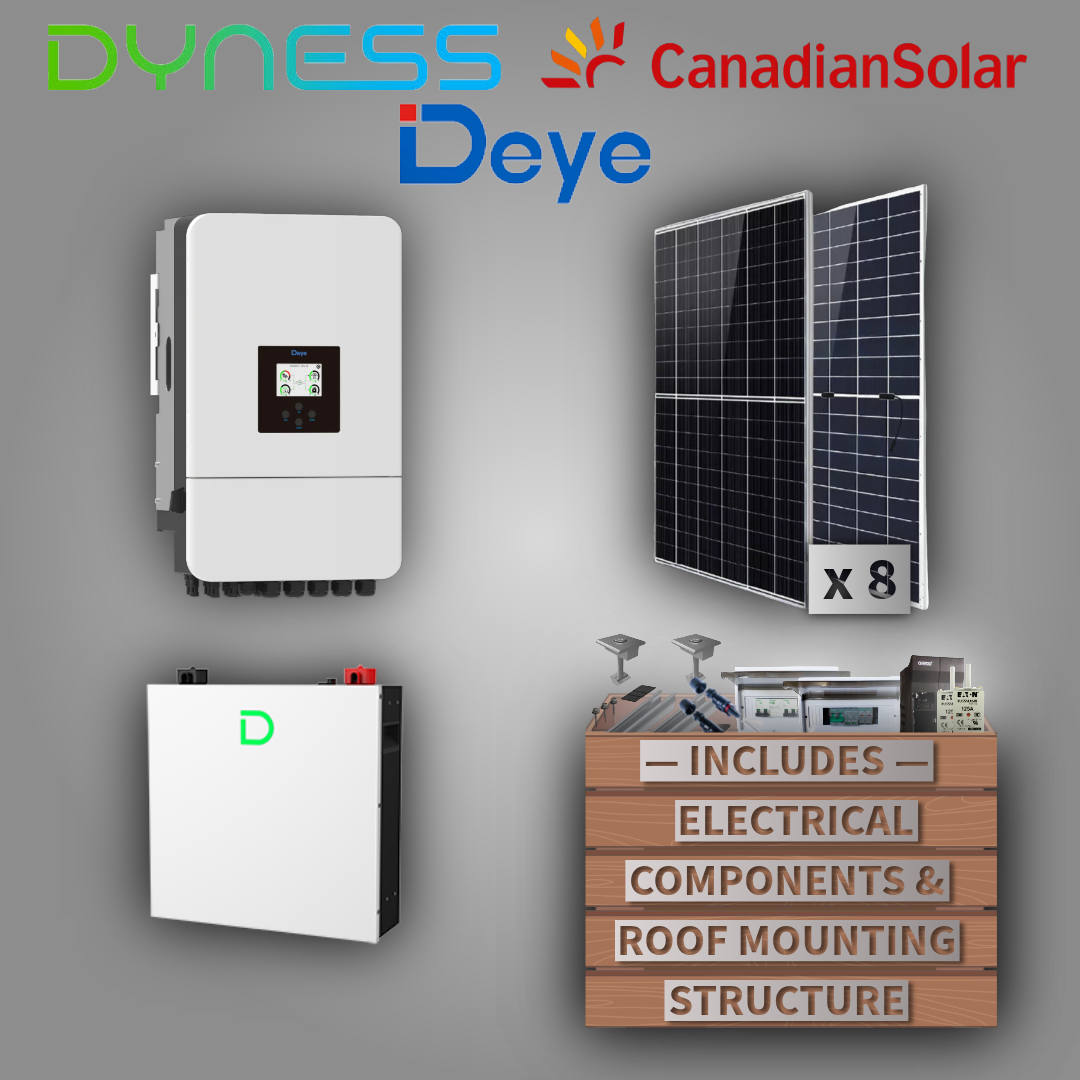

Deye 8kW 1P Inverter + Dyness DL5.0C Pro 5.12 kWh Battery + 8 Canadian Solar Panels
Couldn't load pickup availability
Deye 8kW 1P Hybrid Inverter + Dyness DL5.0C Pro 5.12 kWh Battery + 8 Canadian Solar Panels
🆔 Models
Inverter: Deye 8kW 1P Low-Voltage Hybrid Inverter
Battery: Dyness DL5.0C Pro 5.12 kWh LiFePO₄ Battery
Panels: 8 × Canadian Solar Panels
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X8
160A Battery Fuse Disconnector X1
🏷️ Brand
Deye / Dyness
🔌 Type
Hybrid Inverter + Lithium Battery + Solar Panel Kit
Ideal for larger homes, medium commercial setups, and reliable backup during loadshedding.
⚡ Key Features
🔆 Deye 8kW 1P Hybrid Inverter
-
8kW continuous output — supports high-demand residential loads
-
Dual MPPT for efficient solar energy capture
-
Ultra-fast switchover (<10 ms) for uninterrupted backup
-
Operates in Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Intelligent load management and scheduling
-
Wi-Fi monitoring via Deye mobile app
-
Generator integration supported
-
Parallel-ready for system expansion
-
High efficiency and durability for daily cycling
🔋 Dyness DL5.0C Pro 5.12 kWh Battery
-
5.12 kWh total capacity (≈ 4.8 kWh usable)
-
Long-life LiFePO₄ chemistry for safety and stability
-
Integrated BMS with CAN/RS485 communication
-
Stackable, modular design for future expansion
-
High discharge capability for 8kW inverter loads
-
6000+ cycle lifespan
-
Wall-mount or rack-mount installation options
☀️ Canadian Solar Panels
-
High-efficiency monocrystalline modules
-
Durable and reliable energy production for residential PV systems
📐 Specifications
Inverter — Deye 8kW 1P
| Specification | Value |
|---|---|
| Rated Power | 8 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ~10 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Dyness DL5.0C Pro 5.12 kWh
| Specification | Value |
|---|---|
| Nominal Energy | 5.12 kWh |
| Usable Energy | ± 4.8 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ |
| Nominal Capacity | 100 Ah |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | 50 A |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| Parallel Capability | Yes |
| Mounting | Wall / Rack |
| Operating Temp | –20 °C to +55 °C |
🏷️ Quality & Support
This Deye + Dyness bundle provides a robust hybrid solar solution for larger homes or medium commercial applications. The 8kW inverter delivers reliable performance for high-demand loads, while the DL5.0C Pro battery ensures safe, long-lasting energy storage. Combined with 8 Canadian Solar panels, this system offers dependable solar production and consistent backup power.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
