Ideal for residential and small commercial applications
Supports up to 50 units in parallel for scalable energy storage

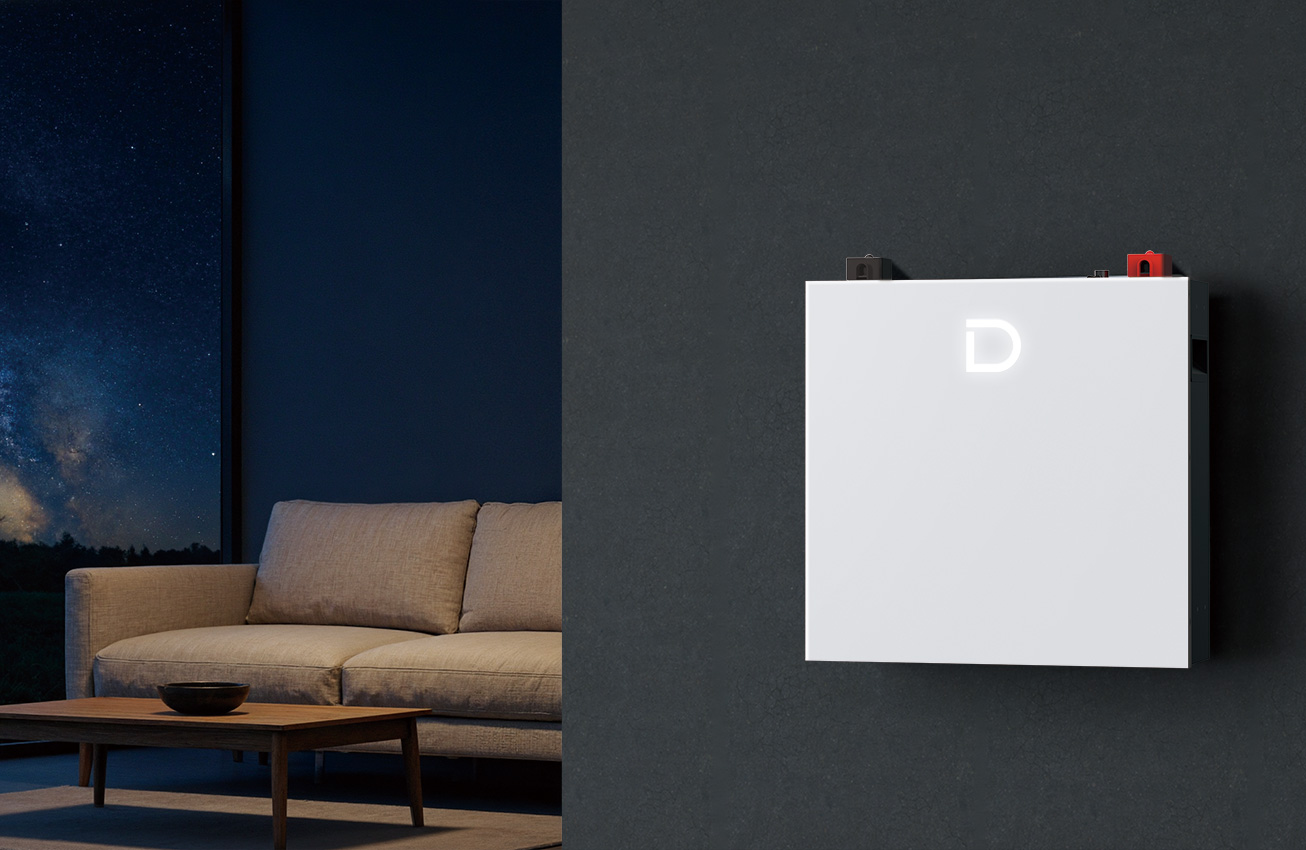

Flexible installation options: wall-mounted, floor-standing, or stacked
Built-in Battery Management System (BMS) for enhanced safety
Compatible with leading inverter brands
Remote monitoring and firmware updates available via app
Compact design with a net weight of 54 kg
Protection level: IP20
Warranty: 10 years
General Data:
Battery Type: Lithium Iron Phosphate (LiFePO₄)
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Energy Storage Capacity: 5.12kWh
Cycle Life: ≥6000 cycles
Weight: 54 kg
Dimensions (W × D × H): 558 mm × 545 mm × 150 mm
Operating Temperature Range: Charging: 0°C to 55°C; Discharging: -20°C to 55°C
Protection Level: IP20
Certification & Safety Standards: UN38.3, CE-EMC, IEC62619, CEI-021
Electrical Data:
Maximum Charge Current: 75A
Maximum Discharge Current: 100A
Peak Power Charge/Discharge Current: 110A (15s)
Recommended Charge/Discharge Current: 50A
Depth of Discharge (DOD): 95%
Operating Voltage Range: 44.8V to 57.6V
Nominal Battery Energy: 5.12kWh
Features:
-
High Energy Density – Compact and lightweight compared to lead-acid batteries
-
Long Lifespan – Up to 6000 cycles at 95% DOD
-
Built-in Battery Management System (BMS) – Protects against overcharge, over-discharge, overcurrent, and short circuits
-
Deep Cycle Performance – Supports full charge and discharge cycles without affecting battery health
-
Fast Charging Capability – Charges quicker than lead-acid batteries
-
Maintenance-Free – No need for water refilling or regular maintenance
-
Wide Operating Temperature Range – Performs efficiently in extreme temperatures
-
Eco-Friendly & Safe – Uses non-toxic LiFePO₄ chemistry, eliminating risks of thermal runaway and fire hazards
Applications:
-
Residential Solar Systems
-
Small Commercial Solar Installations
-
Backup Power Supply
-
Off-Grid Systems
-
Hybrid Solar Systems
-
Energy Storage for Load Shifting
-
Emergency Power Backup
