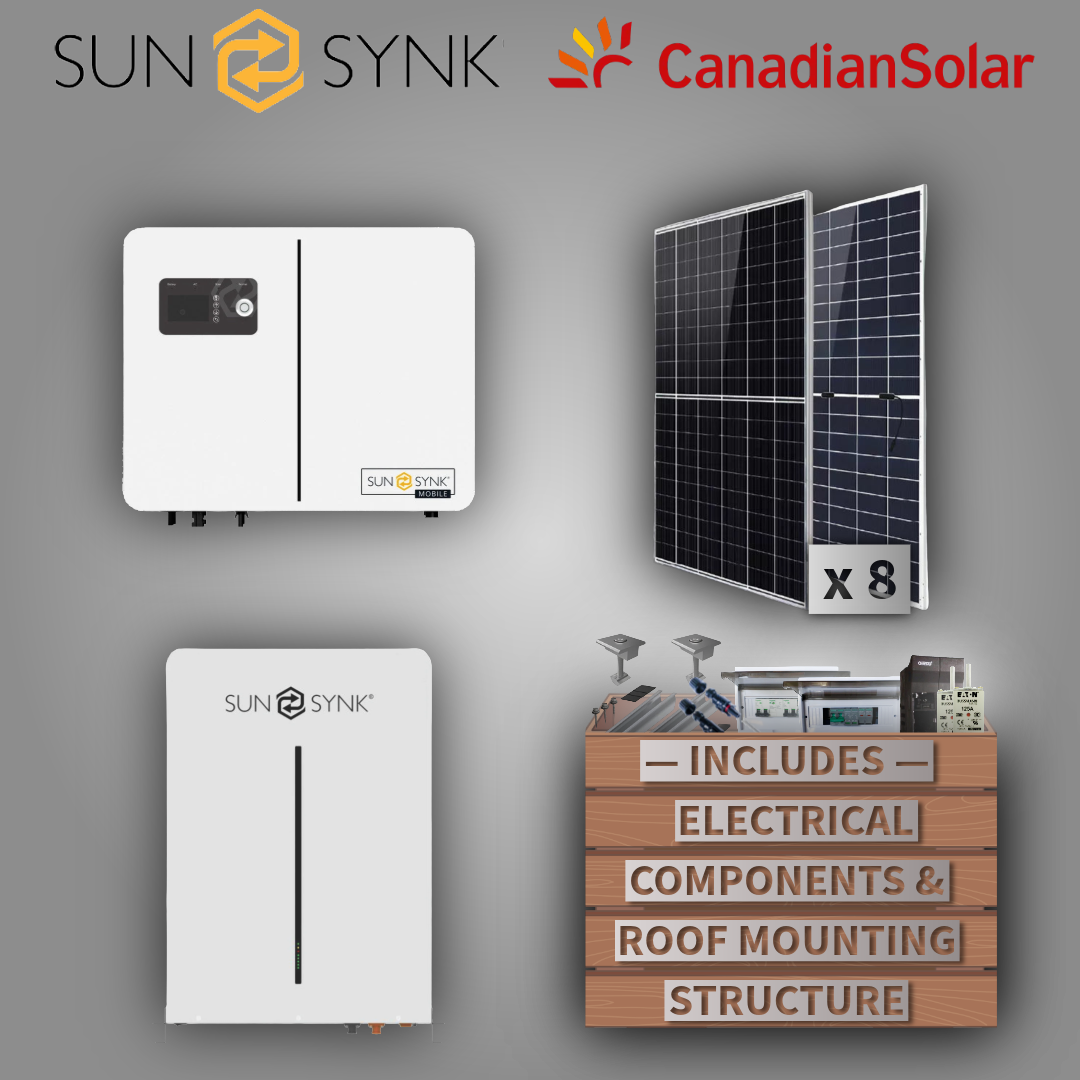

Sunsynk 8kW Lynks Inverter + Sunsynk 5,12 kWh G Series + 8 Canadian Solar Panels
Couldn't load pickup availability
Sunsynk 8kW Lynks Inverter + Sunsynk 5.12kWh G Series Battery + 8 Canadian Solar Panels
🆔 Models
Inverter: Sunsynk 8kW Lynks Hybrid Inverter
Battery: Sunsynk 5.12 kWh Lithium Iron Phosphate Battery — G Series (51.2V)
Panels: 8 × Canadian Solar Panels (high-efficiency monocrystalline)
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X8
160A Battery Fuse Disconnector X1
🏷️ Brand
Sunsynk
🔌 Type
Hybrid Solar Inverter + Lithium Battery + Solar Panel Kit
Designed for medium–large homes, high-demand backup systems, and energy-saving hybrid solar setups.
⚡ Key Features
🔆 Sunsynk 8kW Lynks Hybrid Inverter
-
8kW continuous output — ideal for large homes and heavier loads
-
Dual MPPT for highly efficient solar power harvesting
-
Ultra-fast transfer (<10ms) for seamless loadshedding protection
-
Operates in Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Smart load scheduling & programmable charging
-
Built-in Wi-Fi for Sunsynk Connect app monitoring
-
Generator support included
-
Can run in parallel for larger systems
-
High durability and strong daily performance
🔋 Sunsynk 5.12 kWh Battery — G Series
-
5.12 kWh total capacity (≈4.8 kWh usable at 95% DoD)
-
Safe and stable LiFePO₄ chemistry
-
Integrated intelligent BMS with CAN/RS485 communication
-
Compact, wall-mounted design — perfect for homes
-
Long lifespan: 6000+ cycles
-
Expandable — add more G Series units as needed
-
Cost-effective entry-level storage paired with 8kW inverter setups
☀️ Canadian Solar Panels (8 Units)
-
High-efficiency monocrystalline design
-
Durable, long-lasting energy production
-
Suitable for residential hybrid solar installations
📐 Specifications
Inverter — Sunsynk 8kW Lynks
| Specification | Value |
|---|---|
| Rated Power | 8 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ± 10.4 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Sunsynk 5.12 kWh G Series
| Specification | Value |
|---|---|
| Nominal Energy | 5.12 kWh |
| Usable Energy | ± 4.8 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ |
| Nominal Capacity | 100 Ah |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | 50–100 A (model-dependent) |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| Parallel Capability | Yes |
| Mounting | Wall-Mount |
| Operating Temp | –20 °C to +55 °C |
🏷️ Quality & Support
This Sunsynk bundle offers a powerful hybrid solar solution suitable for homes that require high inverter output with moderate battery storage. The 8kW Lynks inverter provides strong performance and advanced energy management, while the 5.12kWh G Series battery gives reliable, cost-effective backup capacity. Paired with 8 Canadian Solar panels, this kit delivers efficient solar production and dependable day-to-day performance.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
