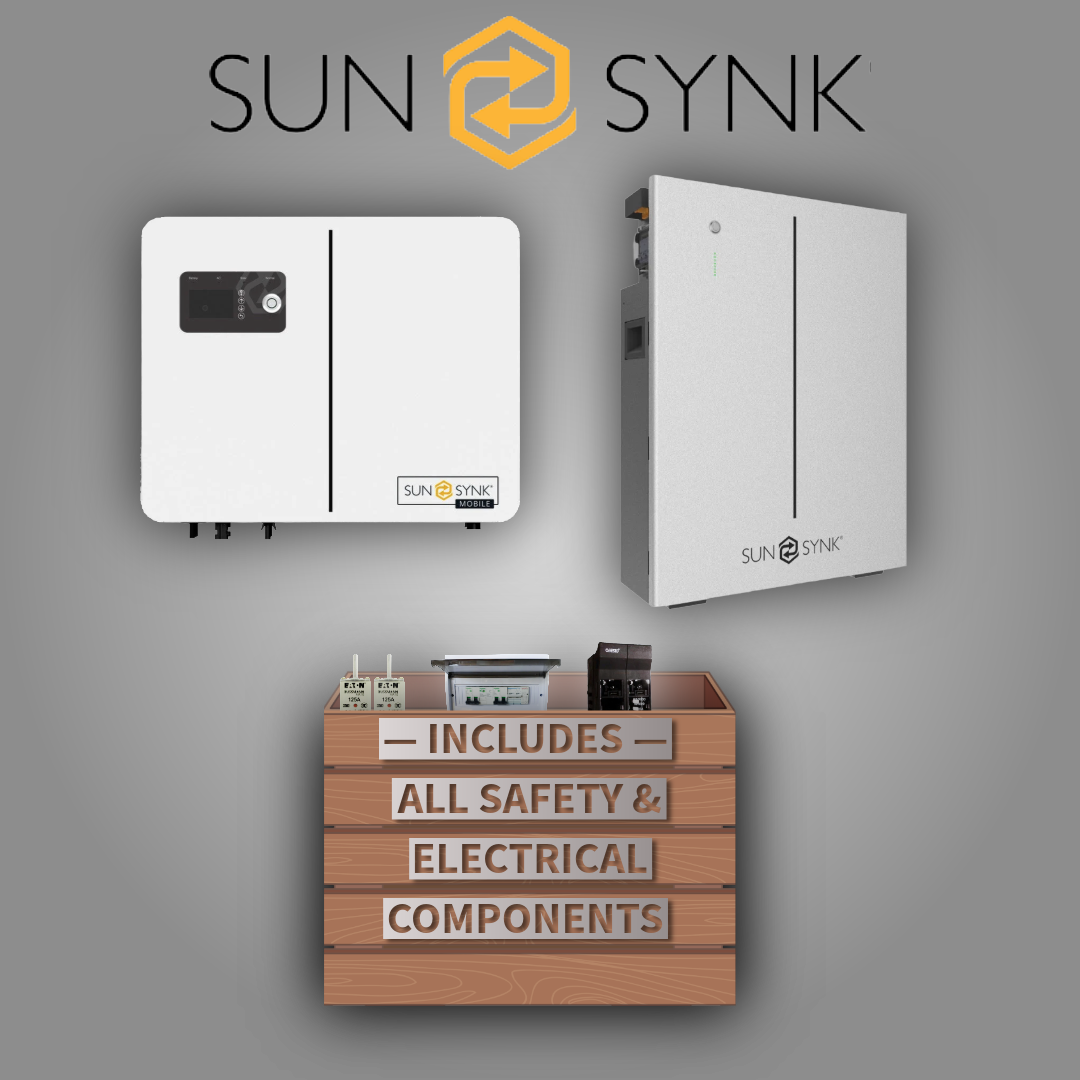

Sunsynk 8kW Lynks Inverter + Sunsynk 10.24kWh W Series Battery
Couldn't load pickup availability
Sunsynk 8kW Lynks Inverter + Sunsynk 10.24 kWh W Series Battery
🆔 Models
-
Inverter: Sunsynk 8kW Lynks Hybrid Inverter
-
Battery: Sunsynk 10.24 kWh Lithium Iron Phosphate Battery — W Series (51.2V)
Includes:
🏷️ Brand:
🏷️ Brand
Sunsynk
🔌 Type
Hybrid Inverter + Low-Voltage Lithium Battery Storage System
Ideal for residential, SME, and backup power applications.
⚡ Key Features
🔆 Sunsynk 8kW Lynks Hybrid Inverter
-
8kW continuous output — handles larger homes and high-demand loads
-
Dual MPPT for maximum solar harvest
-
Ultra-fast switching (<10ms) — seamless loadshedding protection
-
Supports Grid-Tie, Hybrid, Off-Grid, and Zero-Export modes
-
Fully programmable charging and load scheduling
-
Advanced monitoring via Sunsynk Connect (Wi-Fi enabled)
-
Parallel-ready for system expansion
-
Supports generators and smart load control
-
Excellent efficiency and reliability under heavy daily use
🔋 Sunsynk 10.24 kWh Battery — W Series
-
True 10.24 kWh storage (≈ 9.7 kWh usable @ 95% DoD)
-
High-quality LiFePO₄ chemistry — long lifespan & exceptional safety
-
Internal smart BMS with CAN/RS485 communication
-
Floor-standing or wall-mounted modular design
-
High discharge capability — suitable for 8kW systems
-
Long cycle life (6000+ cycles)
-
Expandable — parallel multiple units
-
Ideal for homes, solar-hybrid systems, and backup energy applications
📐 Specifications
Inverter — Sunsynk 8kW Lynks
| Specification | Value |
|---|---|
| Rated Power | 8 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ± 10.4 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Sunsynk 10.24 kWh W Series
| Specification | Value |
|---|---|
| Nominal Energy | 10.24 kWh |
| Usable Energy | ± 9.7 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ |
| Nominal Capacity | 200 Ah |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | 100 A |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| Parallel Capability | Yes (multiple units) |
| Mounting | Wall or Floor |
| Operating Temp | –20 °C to +55 °C |
🏷️ Quality & Support
This premium Sunsynk bundle provides a powerful, scalable hybrid energy solution. The 8kW Lynks inverter delivers high-output performance for demanding households, while the 10.24kWh W Series battery offers long-lasting, safe, and intelligent energy storage. Designed for solar optimisation, backup power, and long-term reliability.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
