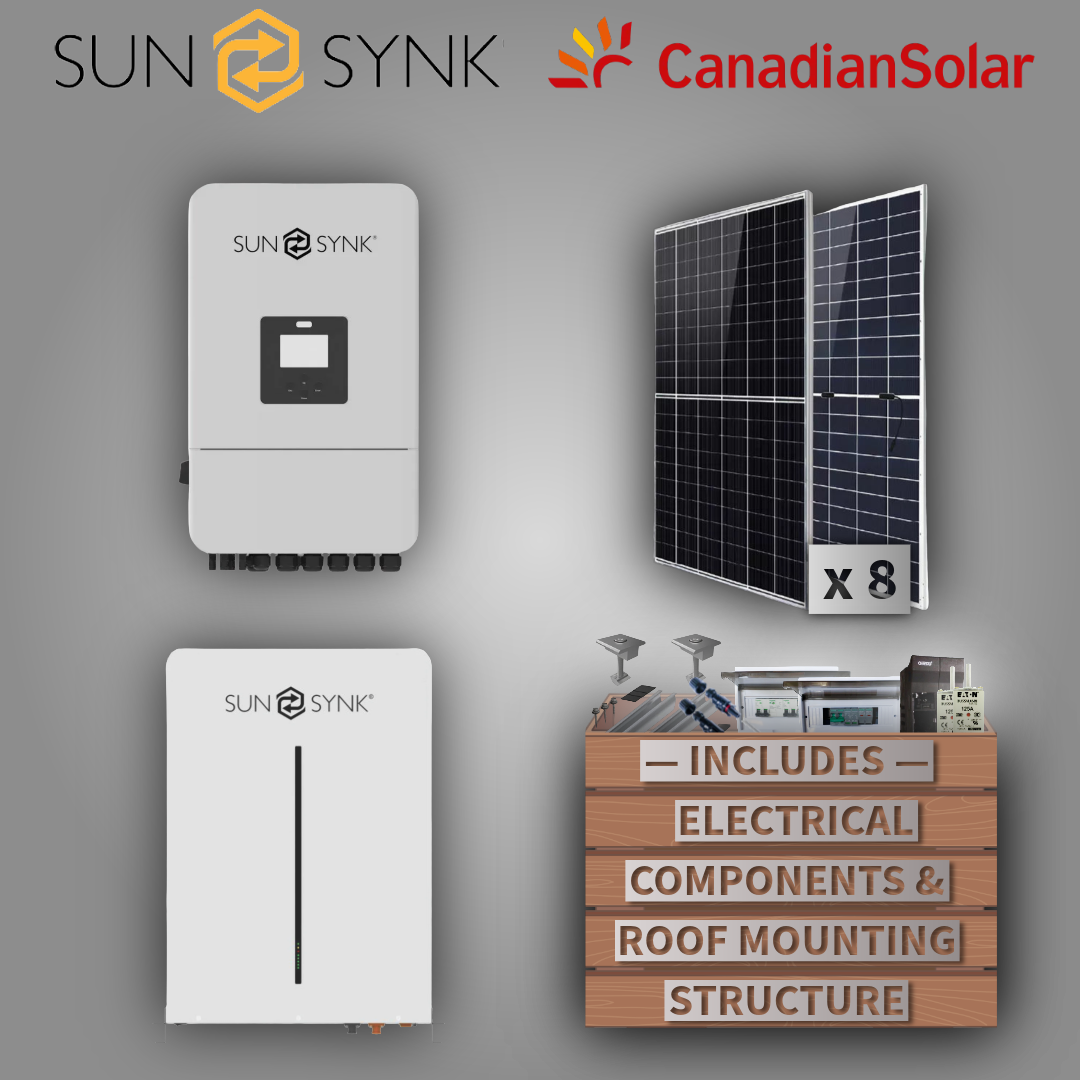

Sunsynk 8kW 1P Inverter (New Gen) + Sunsynk 5,12 kWh G Series + 8 Canadian Solar Panels
Couldn't load pickup availability
Sunsynk 8kW 1P Inverter (New Gen) + Sunsynk 5.12 kWh G Series Battery + 8 Canadian Solar Panels
🆔 Models
Inverter: Sunsynk 8kW 1P LV Hybrid Inverter (New Generation)
Battery: Sunsynk 5.12 kWh Lithium Iron Phosphate Battery — G Series
Panels: 8 × Canadian Solar Panels
Includes:
Sunsynk 8kW Inverter (2025 Model) X1
Sunsynk 5,12kW G-Series Battery X1
Canadian Solar Panels 600w-620w X8
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X8
160A Battery Fuse Disconnector X1
🏷️ Brand
Sunsynk
🔌 Type
Hybrid Inverter + Low-Voltage Lithium Battery + Solar Panel Kit
Ideal for residential and SME hybrid systems with daily cycling and backup capability.
⚡ Key Features
🔆 Sunsynk 8kW 1P Hybrid Inverter — New Generation
-
8kW continuous power — suitable for medium to large homes
-
Dual MPPT for efficient solar harvesting
-
Ultra-fast switchover (<10ms) for loadshedding protection
-
Supports Grid-Tie, Hybrid, Off-Grid & Zero-Export
-
Smart load control and generator integration
-
Fully programmable charge/discharge scheduling
-
Wi-Fi enabled monitoring via Sunsynk Connect
-
Parallel-ready for system expansion
-
Robust performance under daily cycling
🔋 Sunsynk 5.12 kWh Battery — G Series
-
5.12 kWh total storage (≈ 4.8 kWh usable @95% DoD)
-
Durable LiFePO₄ chemistry for long lifespan
-
Intelligent BMS with CAN/RS485 communication
-
Scalable — parallel multiple units for larger systems
-
Compact, safe, and ideal for hybrid/backup applications
-
6000+ cycle life for long-term reliability
-
High discharge capability to support 8kW systems
☀️ Canadian Solar Panels
-
High-efficiency solar panels suitable for residential rooftops
-
Reliable energy yield for hybrid solar systems
-
Durable construction for long-term performance
📐 Specifications
Inverter — Sunsynk 8kW 1P (New Gen)
| Specification | Value |
|---|---|
| Rated Power | 8 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ± 10.4 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Sunsynk 5.12 kWh G Series
| Specification | Value |
|---|---|
| Nominal Energy | 5.12 kWh |
| Usable Energy | ± 4.8 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ |
| Nominal Capacity | 100 Ah |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | 50 A |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| Parallel Capability | Yes |
| Mounting | Wall or Floor |
| Operating Temp | –20 °C to +55 °C |
🏷️ Quality & Support
This Sunsynk hybrid solar kit provides a balanced, reliable energy solution. The 8kW New Gen inverter delivers strong performance with advanced control features, while the G Series battery offers safe and stable storage for daily cycling and backup power. Paired with 8 Canadian Solar panels, this system is designed for efficient solar energy production, long-term durability, and consistent operation under South African conditions.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
