Sunsynk 8kW 1P LV Hybrid Inverter
Couldn't load pickup availability

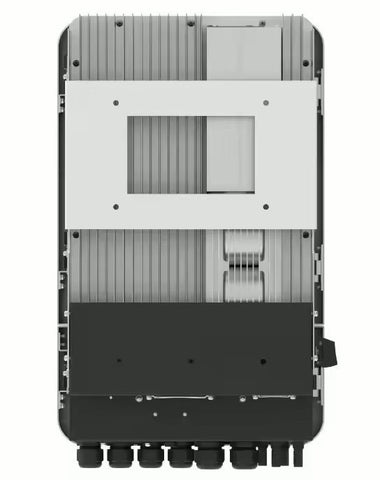

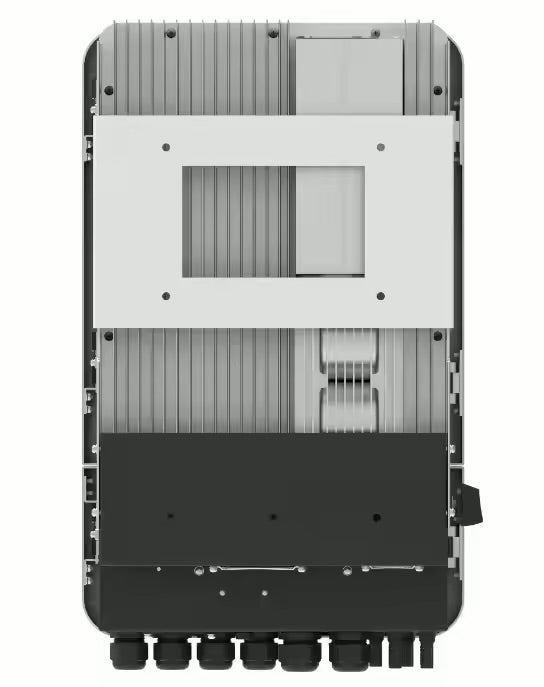

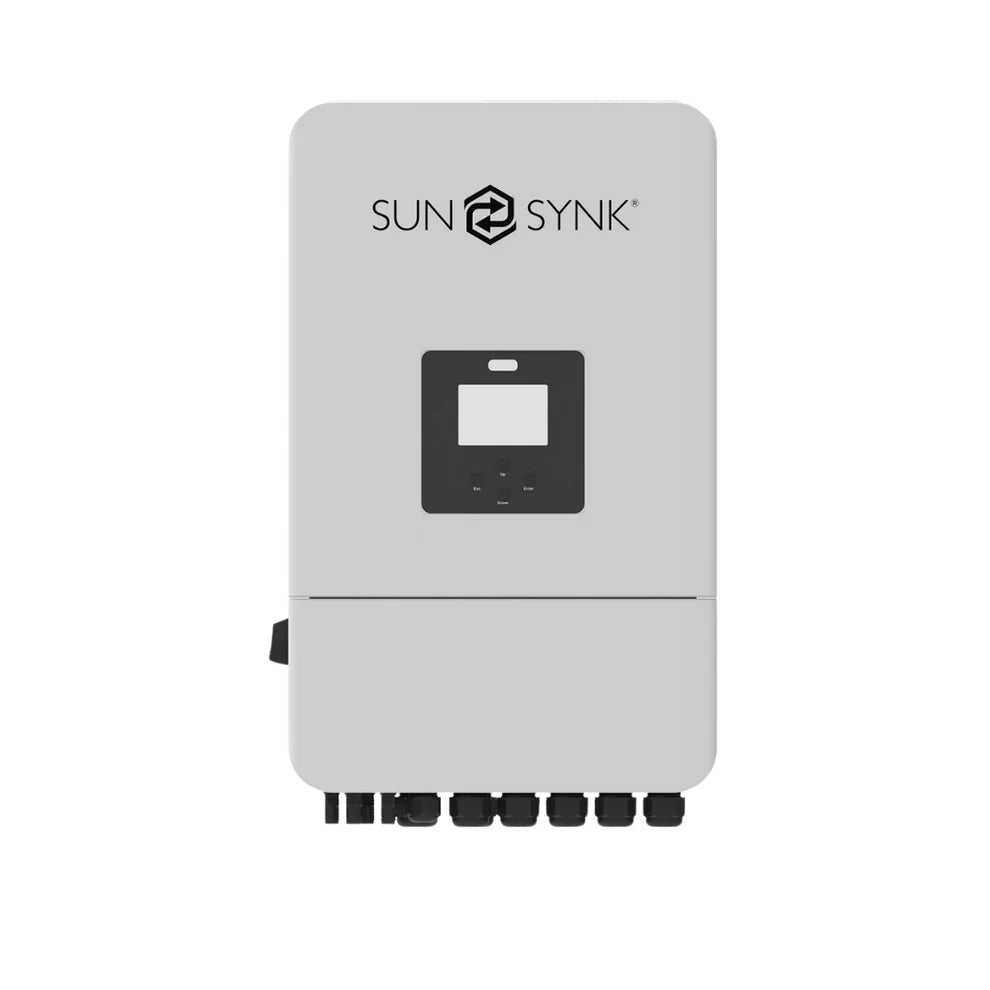

🔌 Sunsynk 8 kW 1-Phase Low Voltage Hybrid Inverter
Model: SUNSYNK-8K-SG04LP1-LV
Brand: Sunsynk
Type: Single-Phase Hybrid Inverter (Solar + Battery + Grid Integration)
⚡ Key Features
-
8 kW rated AC output — ideal for medium to large residential solar systems with low-voltage battery integration.
-
Hybrid operation — integrates solar PV, low-voltage battery storage, and grid supply for optimized energy management.
-
Dual MPPT system — allows multiple PV string configurations for maximum energy harvest.
-
High battery current support — up to 140 A charge/discharge for efficient storage cycling.
-
Parallel-ready — supports connection of multiple inverters for scalable energy systems.
-
Smart energy management — programmable modes for self-use, backup, and peak-shaving.
-
Durable IP65 enclosure — suitable for indoor or outdoor installation.
-
Smart monitoring — built-in touchscreen, Wi-Fi connectivity, and portal integration.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUNSYNK-8K-SG04LP1-LV |
| Rated AC Output Power | 8 kW |
| Max PV Input Power | ~10.4 kW |
| Max PV Input Voltage | 500 V |
| MPPT Voltage Range | 125 – 425 V |
| Number of MPPTs | 2 |
| Max PV Input Current | 18 A per MPPT |
| Battery Voltage Range | 40 – 60 V (48 V nominal) |
| Max Charge/Discharge Current | ~140 A |
| Max Efficiency | ~97.6 % |
| Protection Rating | IP65 |
| Communication Interfaces | RS485, CAN, Wi-Fi |
| Dimensions (W × H × D) | ~460 × 515 × 190 mm |
| Weight | ~25 kg |
| Warranty | Standard manufacturer warranty |
🏷️ Quality & Support
The Sunsynk 8 kW 1-Phase Low Voltage Hybrid Inverter provides reliable, efficient energy management for residential systems with low-voltage batteries. With dual MPPT tracking, robust hybrid functionality, and parallel scalability, it ensures optimized self-consumption, backup capability, and long-term reliability.
