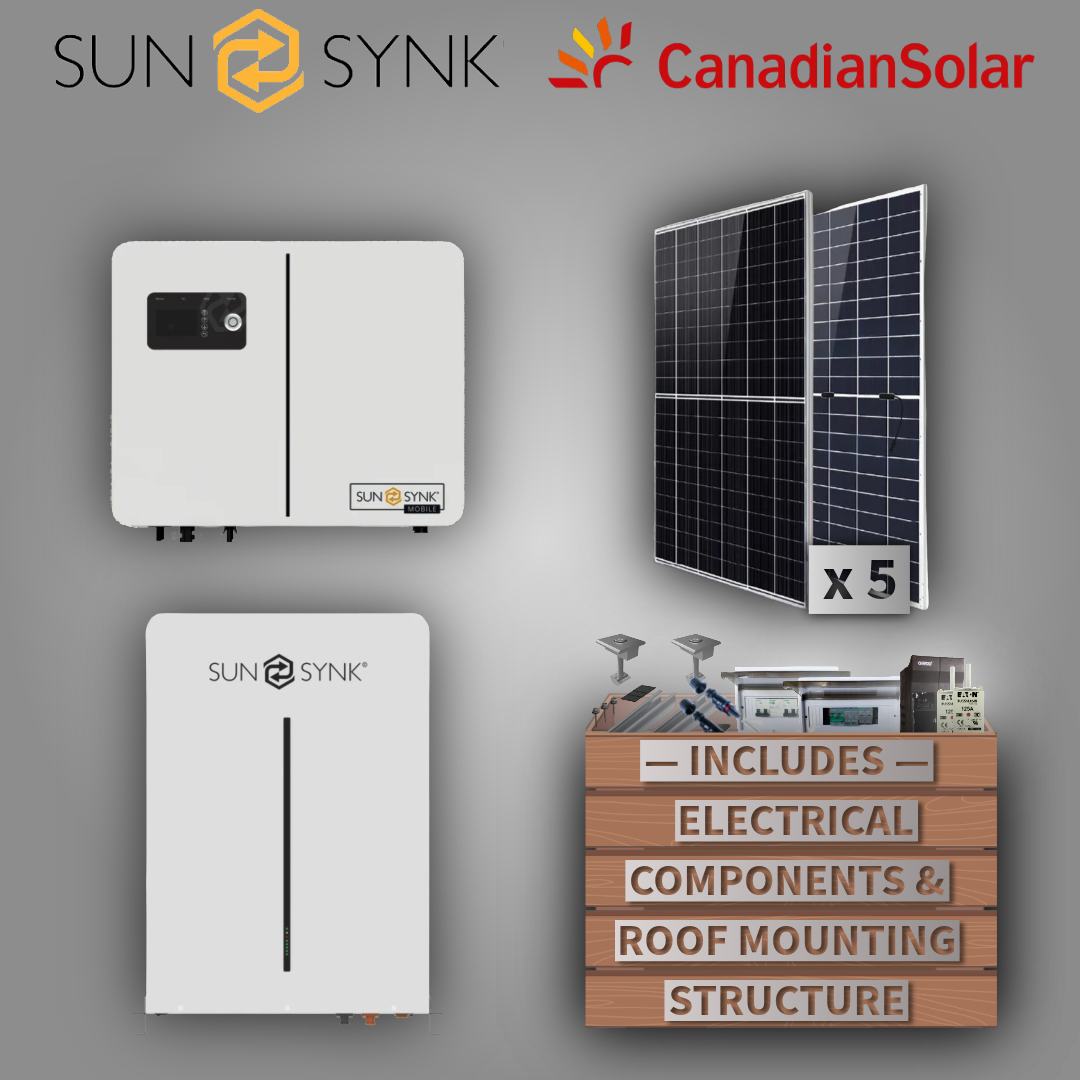

Sunsynk 6kW Lynks Inverter + Sunsynk 5,12 kWh G Series + 5 Canadian Solar Panels
Couldn't load pickup availability
Sunsynk 6kW Lynks Inverter + Sunsynk 5.12 kWh G Series Battery + 5 Canadian Solar Panels
🆔 Models
-
Inverter: Sunsynk 6kW Lynks Hybrid Inverter
-
Battery: Sunsynk 5.12 kWh Lithium Iron Phosphate Battery — G Series (51.2 V)
-
Solar Panels: 5 x Canadian Solar Panels
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X5
160A Battery Fuse Disconnector X1
🏷️ Brand
Sunsynk
🔌 Type
Hybrid Inverter + Low-Voltage Lithium Battery Storage System + Solar Panels
Ideal for residential, small commercial, and backup power applications.
⚡ Key Features
🔆 Sunsynk 6kW Lynks Hybrid Inverter
-
6 kW continuous output — suitable for medium to large homes
-
Dual MPPT for maximum solar harvest
-
Ultra-fast switching (<10 ms) — seamless loadshedding protection
-
Supports Grid-Tie, Hybrid, Off-Grid, and Zero-Export modes
-
Fully programmable charging and load scheduling
-
Advanced monitoring via Sunsynk Connect (Wi-Fi enabled)
-
Parallel-ready for system expansion
-
Supports generators and smart load control
-
Excellent efficiency and reliability under daily use
🔋 Sunsynk 5.12 kWh Battery — G Series
-
True 5.12 kWh storage (≈ 4.9 kWh usable @ 95% DoD)
-
High-quality LiFePO₄ chemistry — long lifespan & exceptional safety
-
Internal smart BMS with CAN/RS485 communication
-
Floor-standing or wall-mounted modular design
-
High discharge capability — compatible with 6 kW inverter systems
-
Long cycle life (6000+ cycles)
-
Expandable — parallel multiple units
-
Ideal for homes, solar-hybrid systems, and backup energy applications
📐 Specifications
Inverter — Sunsynk 6kW Lynks
| Specification | Value |
|---|---|
| Rated Power | 6 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ± 7.2 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.5% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Sunsynk 5.12 kWh G Series
| Specification | Value |
|---|---|
| Nominal Energy | 5.12 kWh |
| Usable Energy | ± 4.9 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ |
| Nominal Capacity | 100 Ah |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | 100 A |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| Parallel Capability | Yes (multiple units) |
| Mounting | Wall or Floor |
| Operating Temp | –20 °C to +55 °C |
🏷️ Quality & Support
This Sunsynk bundle provides a complete residential or small commercial energy solution. The 6 kW Lynks inverter delivers reliable high-output performance, while the 5.12 kWh G Series battery ensures safe, intelligent energy storage. Perfect for solar optimisation, backup power, and daily energy management.
