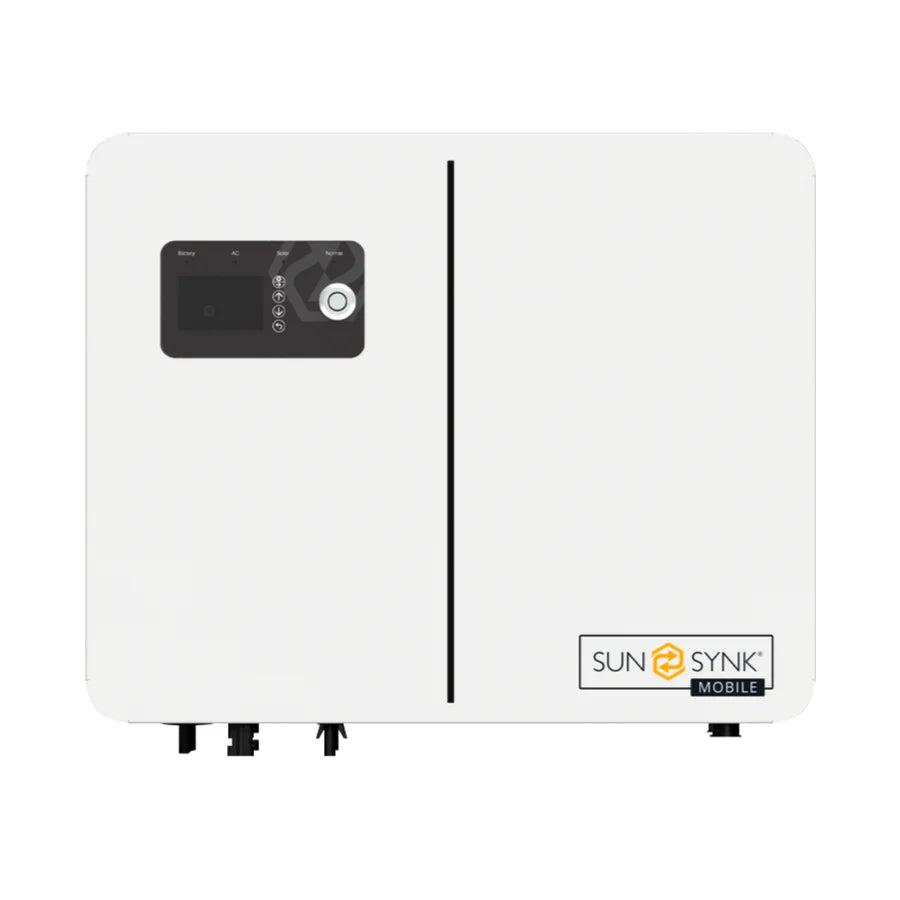

🔌 Sunsynk 6kW Lynks Hybrid Inverter
Brand: Sunsynk
Model: SM6.0kWPLL
Type: Single-Phase Hybrid Inverter (Solar PV + Battery + Grid Integration)
⚡ Key Features
• 6 kW rated AC output — ideal for residential solar systems with battery storage and backup capability
• Hybrid functionality — integrates solar PV generation, battery charging/discharging, and grid interaction
• Supports on-grid, off-grid and backup modes for flexible system operation
• Dual MPPT trackers — allows multiple PV string orientations for improved solar harvesting
• 48 V battery compatibility — supports lithium-ion and lead-acid battery systems
• High efficiency (up to ~97.6%) for improved energy conversion and system performance
• Compact wall-mount design — lightweight and easy to install
• Smart monitoring capability — supports WiFi and communication interfaces for remote system tracking
• Durable enclosure — designed for indoor or protected installation environments
📐 Technical Specifications (SPEC SHEET)
| Specification | Value |
|---|---|
| Model | SM6.0kWPLL |
| Rated AC Output Power | 6 kW |
| Battery Voltage | 48 V nominal |
| Max PV Input Power | ~8 – 10 kW DC |
| MPPT Voltage Range | 120 – 450 V |
| Number of MPPTs | 2 |
| Maximum Efficiency | ~97.6% |
| Grid Type | Single-Phase |
| Protection Rating | IP41 / IP65 (model dependent) |
| Display | LCD / Smart monitoring interface |
| Dimensions (W × H × D) | ~460 × 550 × 190 mm |
| Weight | ~18 – 20 kg |
| Warranty | 5 Years (extendable depending on installation) |
🏷️ Quality & Support
The Sunsynk Lynks 6 kW Hybrid Inverter provides efficient solar power conversion with integrated battery and grid management for residential energy systems. With dual MPPT inputs, flexible battery compatibility, and smart monitoring capabilities, it enables homeowners to maximise solar self-consumption while maintaining reliable backup power during outages. Its compact design and durable construction make it suitable for modern hybrid solar installations.
