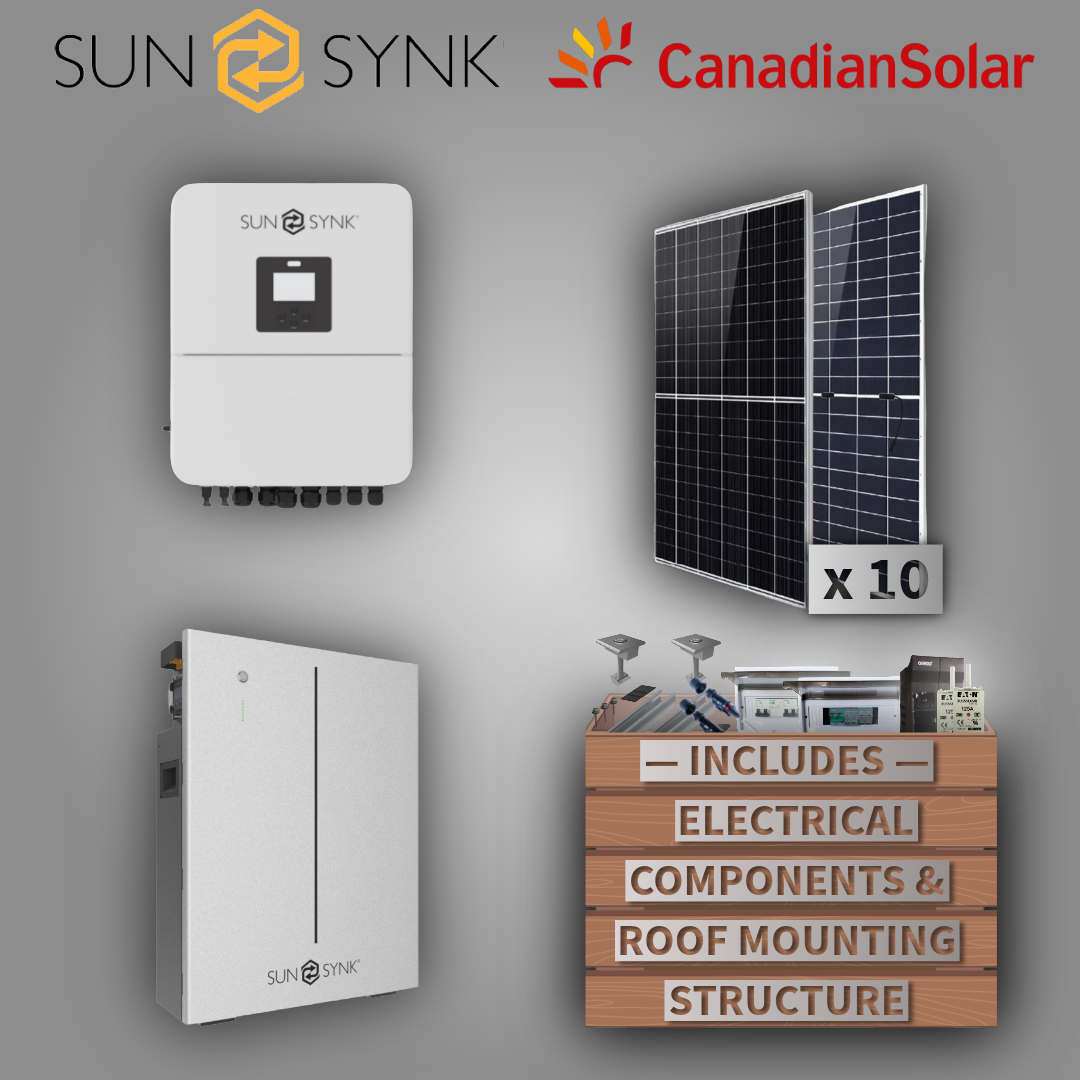

Sunsynk 5kW 1P Inverter + Sunsynk 10.24kWh W Series + 10 Canadian Solar panels
Couldn't load pickup availability
Sunsynk 5kW 1P Inverter + Sunsynk 10.24kWh W Series Battery + 10 Canadian Solar Panels
🆔 Models
Inverter: Sunsynk 5kW 1-Phase Hybrid Inverter (LV)
Battery: Sunsynk 10.24 kWh Lithium Iron Phosphate Battery — W Series (51.2V)
Panels: 10 × Canadian Solar Panels (high-efficiency monocrystalline)
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X10
250A Battery Fuse Disconnector X1
🏷️ Brand
Sunsynk
🔌 Type
Hybrid Solar Inverter + Lithium Battery + Solar Panel Kit
Ideal for residential solar, backup systems, and energy-saving installations.
⚡ Key Features
NB: 10 YEAR MANUFACTURER WARRANTY FOR SUNSYNK INVERTERS AND BATTERIES WHEN USED TOGETHER
🔆 Sunsynk 5kW 1P Hybrid Inverter
-
5kW continuous power output — ideal for medium-sized homes
-
Dual MPPT for efficient solar harvesting
-
Ultra-fast switching (<10ms) for loadshedding protection
-
Supports Grid-Tie, Hybrid, Off-Grid, and Zero-Export modes
-
Smart load management and programmable charge schedules
-
Built-in Wi-Fi for Sunsynk Connect remote monitoring
-
Generator-ready and supports parallel installation
-
Highly efficient and stable under daily operational loads
🔋 Sunsynk 10.24 kWh Battery — W Series
-
True 10.24 kWh storage (≈ 9.7 kWh usable at 95% DoD)
-
Premium LiFePO₄ chemistry — long life, stable, and safe
-
Smart BMS with CAN/RS485 communication
-
Wall-mounted or floor-standing modular design
-
High discharge rate — perfectly matched to a 5kW inverter
-
Long lifespan: 6000+ cycles
-
Parallel-capable for future expansion
☀️ Canadian Solar Panels (10 Units)
-
High-efficiency monocrystalline modules
-
Excellent performance in low-light and high-heat conditions
-
Durable and reliable for long-term rooftop or ground-mount use.
📐 Specifications
Inverter — Sunsynk 5kW 1P
| Specification | Value |
|---|---|
| Rated Power | 5 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ± 6.5 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Sunsynk 10.24 kWh W Series
| Specification | Value |
|---|---|
| Nominal Energy | 10.24 kWh |
| Usable Energy | ± 9.7 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ |
| Nominal Capacity | 200 Ah |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | 100 A |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| Parallel Capability | Yes |
| Mounting | Wall/Floor |
| Operating Temp | –20 °C to +55 °C |
🏷️ Quality & Support
This Sunsynk bundle offers a perfectly balanced residential power solution. The 5kW hybrid inverter delivers dependable performance for homes, while the 10.24kWh W Series battery ensures stable, long-lasting energy storage. Combined with 10 high-efficiency Canadian Solar panels, this kit provides strong solar generation, seamless backup, and long-term reliability.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
