Deye 8kW 1P Inverter + Dyness 14.3kW Powerbrick + 16 Canadian Solar Panels
Couldn't load pickup availability

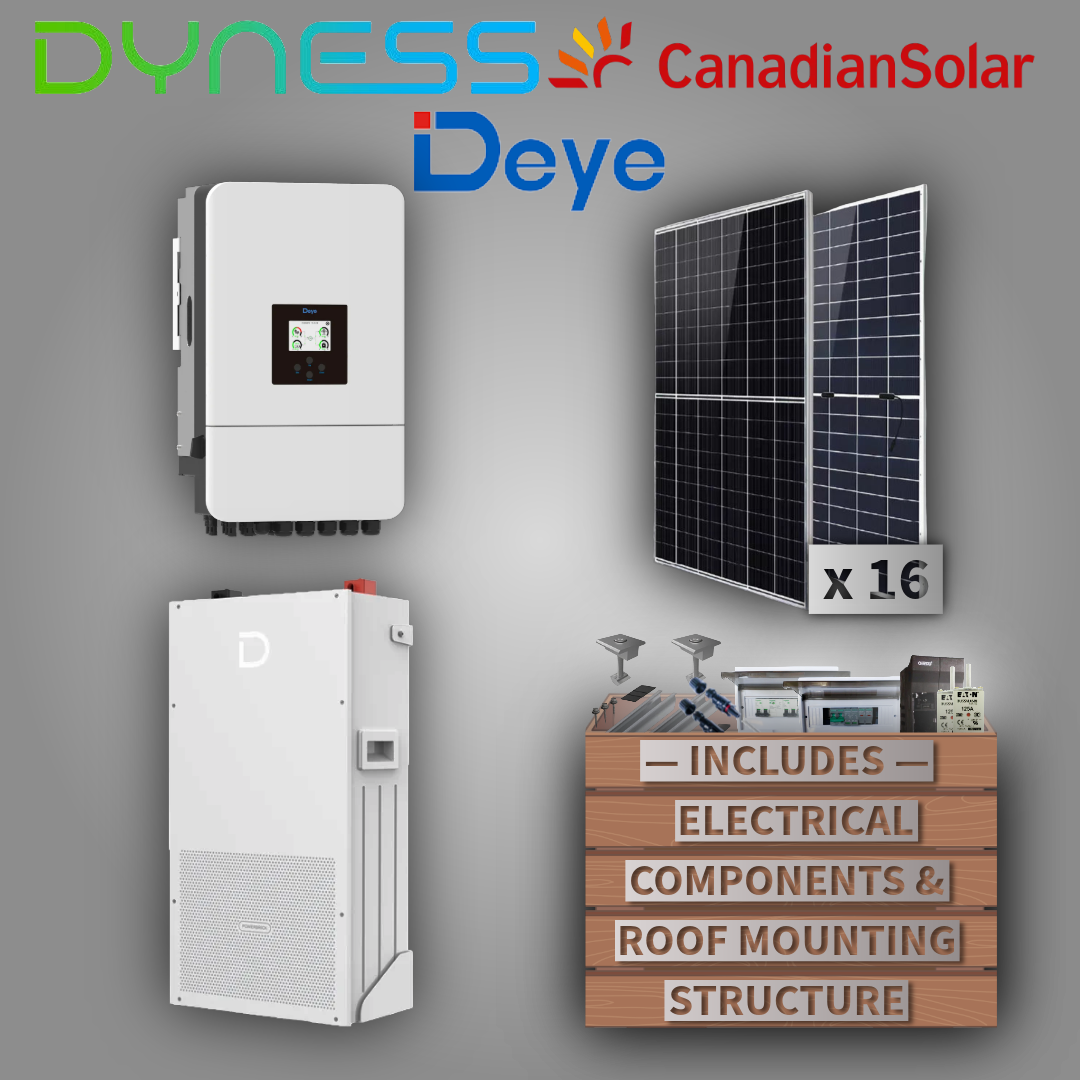

Deye 8kW 1P Hybrid Inverter + Dyness PowerBrick 14.3 kWh + 16 Canadian Solar Panels
🆔 Models
Inverter: Deye 8kW 1P Low-Voltage Hybrid Inverter
Battery: Dyness PowerBrick 14.3 kWh LiFePO₄ Battery
Panels: 16 × Canadian Solar Panels
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X16
250A Battery Fuse Disconnector X1
🏷️ Brand
Deye + Dyness
🔌 Type
Hybrid Inverter + Lithium-Ion Battery + Solar Panel Kit
Ideal for large homes, commercial sites, and high-demand backup systems.
⚡ Key Features
🔆 Deye 8kW 1P Hybrid Inverter
-
8kW continuous output — handles high household and commercial loads
-
Dual MPPT for efficient solar harvesting
-
Ultra-fast switchover (<10 ms) for seamless backup
-
Supports Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Smart load management and programmable schedules
-
Wi-Fi monitoring via mobile app
-
Generator support included
-
Parallel-ready for future system expansion
-
Reliable and efficient under heavy daily cycling
🔋 Dyness PowerBrick 14.3 kWh Battery
-
14.3 kWh total storage — ideal for extended backup periods
-
Safe LiFePO₄ chemistry with integrated smart BMS
-
High discharge capability compatible with 8kW inverters
-
Modular and expandable for larger energy needs
-
6000+ cycle lifespan for long-term reliability
-
Floor-standing, compact design for clean installation
-
CAN/RS485 communication for inverter integration
☀️ Canadian Solar Panels
-
High-efficiency monocrystalline PV modules
-
Durable and reliable energy production for hybrid solar systems
📐 Specifications
Inverter — Deye 8kW 1P
| Specification | Value |
|---|---|
| Rated Power | 8 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ~10 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Dyness PowerBrick 14.3 kWh
| Specification | Value |
|---|---|
| Nominal Energy | 14.3 kWh |
| Usable Energy | Model-dependent (~90–95% DoD) |
| Nominal Voltage | 48 V class |
| Chemistry | LiFePO₄ |
| Cycle Life | 6000+ cycles |
| Communication | CAN / RS485 |
| Max Charge/Discharge | Model dependent, supports 8kW systems |
| Installation | Floor-standing module |
🏷️ Quality & Support
This Deye + Dyness bundle is a high-capacity hybrid solution for homes or commercial applications needing extended backup and robust solar utilisation. The 8kW inverter provides strong hybrid performance, while the 14.3 kWh PowerBrick delivers safe, reliable energy storage. Combined with 16 Canadian Solar panels, the system ensures efficient solar generation, long-term reliability, and dependable power security.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
