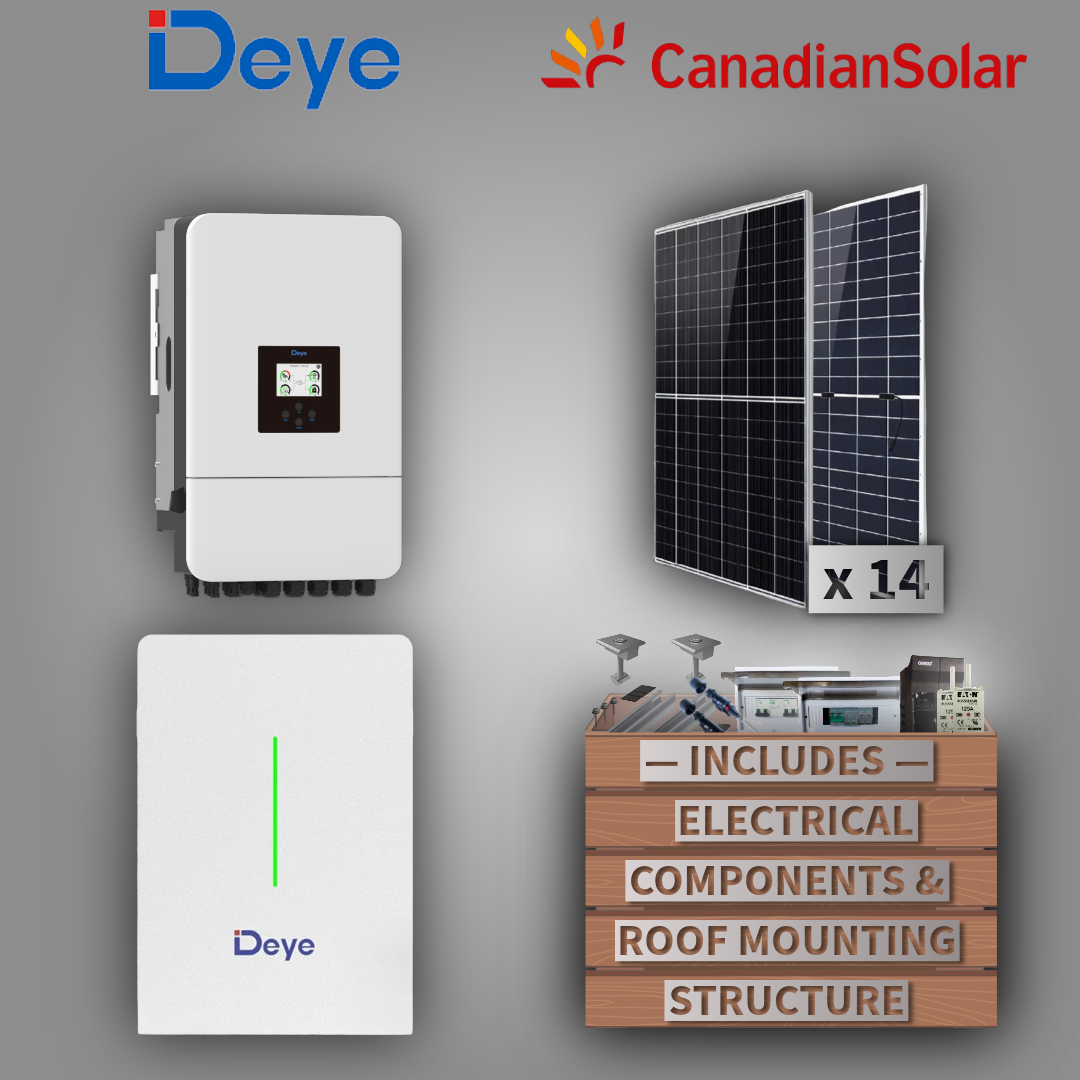

Deye 8kW 1P Hybrid Inverter + Deye 10.6 kWh Lithium Battery + 14 Canadian Solar Panels
🆔 Models
Inverter: Deye 8kW 1P Low-Voltage Hybrid Inverter
Battery: Deye 10.6 kWh Lithium Iron Phosphate Battery
Panels: 14 × Canadian Solar Panels
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X14
250A Battery Fuse Disconnector X1
🏷️ Brand
Deye
🔌 Type
Hybrid Inverter + Lithium Battery + Solar Panel Kit
Ideal for large homes, commercial spaces, and high-demand backup applications.
⚡ Key Features
🔆 Deye 8kW 1P Hybrid Inverter
-
8kW continuous output — supports heavy household and small commercial loads
-
Dual MPPT for efficient solar harvesting
-
Ultra-fast switchover (<10 ms) for uninterrupted backup
-
Operates in Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Intelligent load management and programmable schedules
-
Wi-Fi monitoring and app integration
-
Generator support included
-
Parallel-capable for system expansion
-
Reliable daily performance under heavy cycling
🔋 Deye 10.6 kWh Lithium Battery
-
10.6 kWh total storage — suitable for extended backup or high-demand loads
-
Long-life LiFePO₄ chemistry for safety and durability
-
Integrated smart BMS with CAN/RS485 communication
-
High discharge capability compatible with 8kW inverters
-
Modular and expandable for future growth
-
6000+ cycle lifespan
-
Floor-standing or wall-mounted installation
☀️ Canadian Solar Panels
-
High-efficiency monocrystalline modules
-
Durable and reliable energy production for hybrid solar systems
📐 Specifications
Inverter — Deye 8kW 1P
| Specification | Value |
|---|---|
| Rated Power | 8 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ~10 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Deye 10.6 kWh
| Specification | Value |
|---|---|
| Nominal Energy | 10.6 kWh |
| Usable Energy | ± 10 kWh (model-dependent) |
| Chemistry | LiFePO₄ |
| Nominal Voltage | 48 V class |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | Typically 100–120 A |
| Communication | CAN / RS485 |
| Parallel Capability | Yes |
| Installation | Floor-standing / Wall-mounted |
🏷️ Quality & Support
This Deye bundle offers a high-capacity hybrid solar solution for large homes or small commercial applications. The 8kW inverter delivers strong, reliable performance while the 10.6 kWh battery provides safe, durable energy storage. Combined with 14 Canadian Solar panels, this kit ensures efficient solar generation, dependable backup, and long-term reliability.
