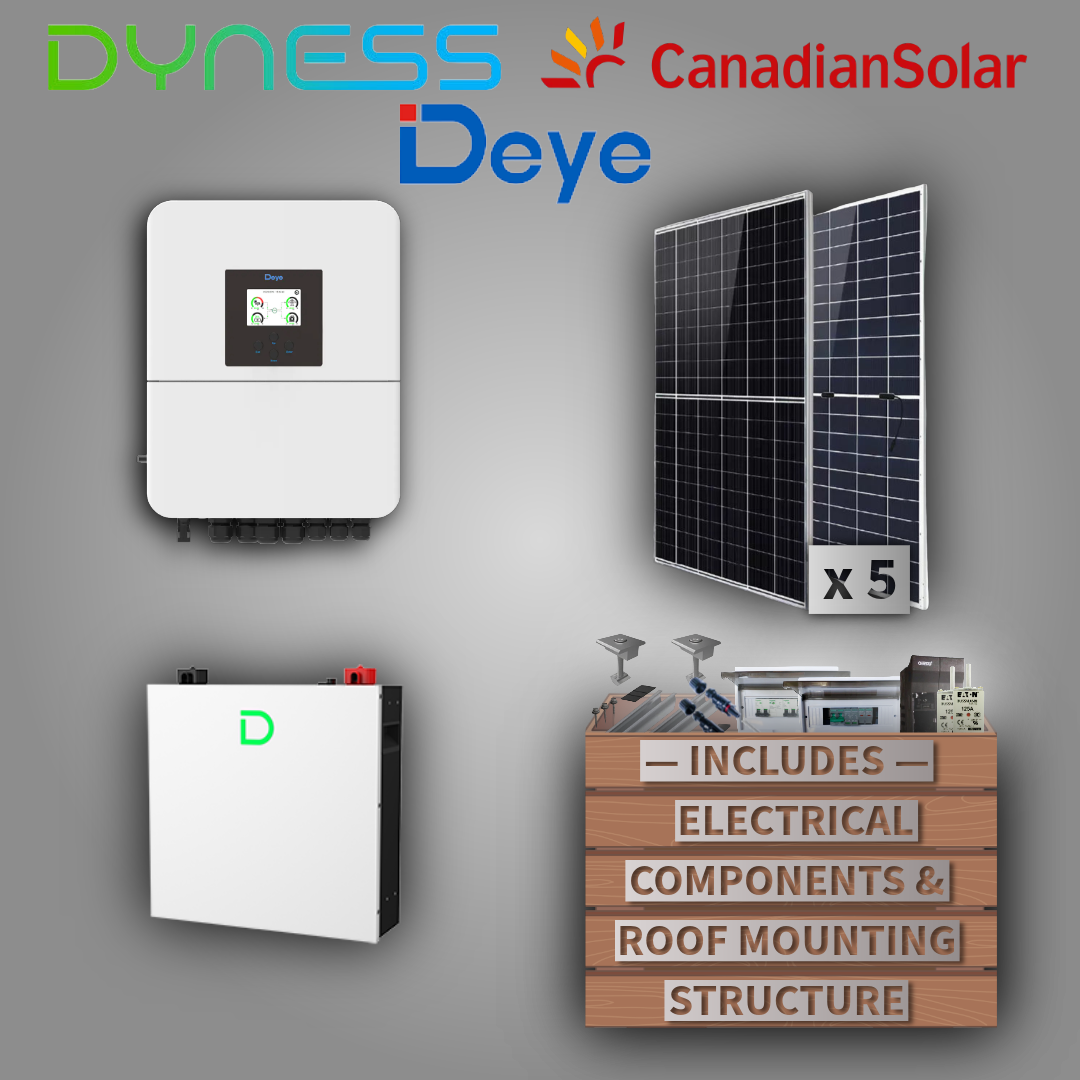

Deye 5kW 1P Inverter (LV) + Dyness DL5.0C Pro 5.12 kWh Battery + 5 Canadian Solar Panels
Couldn't load pickup availability
Deye 5kW 1P Inverter (LV) + Dyness DL5.0C Pro 5.12 kWh Battery + 5 Canadian Solar Panels
🆔 Models
Inverter: Deye 5kW 1P Low-Voltage Hybrid Inverter
Battery: Dyness DL5.0C Pro 5.12 kWh Lithium Iron Phosphate Battery
Panels: 5 × Canadian Solar Panels
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X5
160A Battery Fuse Disconnector X1
🏷️ Brand
Deye / Dyness
🔌 Type
Hybrid Inverter + Low-Voltage Lithium Battery + Solar Panel Kit
Ideal for residential hybrid setups, daily cycling, and dependable loadshedding backup.
⚡ Key Features
🔆 Deye 5kW 1P Hybrid Inverter (LV)
-
5kW continuous output — perfect for medium-sized households
-
Dual MPPT for stable and efficient solar production
-
Fast switchover time (<10 ms) for uninterrupted backup
-
Supports Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Intelligent load management and time-of-use scheduling
-
Built-in monitoring with Wi-Fi and app support
-
Supports generator input and smart load prioritisation
-
Parallel-ready for system expansion
-
Highly reliable for daily solar utilisation and backup power
🔋 Dyness DL5.0C Pro 5.12 kWh LiFePO₄ Battery
-
5.12 kWh total capacity (≈ 4.8 kWh usable)
-
Strong, safe LiFePO₄ chemistry with long cycle life
-
Advanced BMS with CAN/RS485 communication
-
Stackable, modular design for easy expansion
-
High discharge capability — suitable for 5kW hybrid systems
-
6000+ cycles for long-term durability
-
Wall-mounted or rack-mounted installation options
-
Stable performance in high-frequency cycling applications
☀️ Canadian Solar Panels
-
High-efficiency solar panels ideal for residential solar roofs
-
Reliable, durable, and designed for stable long-term energy production
📐 Specifications
Inverter — Deye 5kW 1P (LV)
| Specification | Value |
|---|---|
| Rated Power | 5 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ~6.5 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Dyness DL5.0C Pro 5.12 kWh
| Specification | Value |
|---|---|
| Nominal Energy | 5.12 kWh |
| Usable Energy | ± 4.8 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ |
| Nominal Capacity | 100 Ah |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | 50 A |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| Parallel Capability | Yes |
| Mounting | Wall / Rack |
| Operating Temp | –20 °C to +55 °C |
🏷️ Quality & Support
This hybrid kit offers a dependable and efficient solar solution for residential applications. The Deye 5kW inverter provides robust hybrid functionality and responsive backup performance, while the Dyness DL5.0C Pro battery ensures safe, durable, and stable energy storage. Paired with 5 Canadian Solar panels, this package delivers reliable solar generation and consistent day-to-day operation.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
