Deye 20kW 3P Inverter + 2x Dyness 14.3kW Powerbrick + 32 Canadian Solar Panel
Couldn't load pickup availability

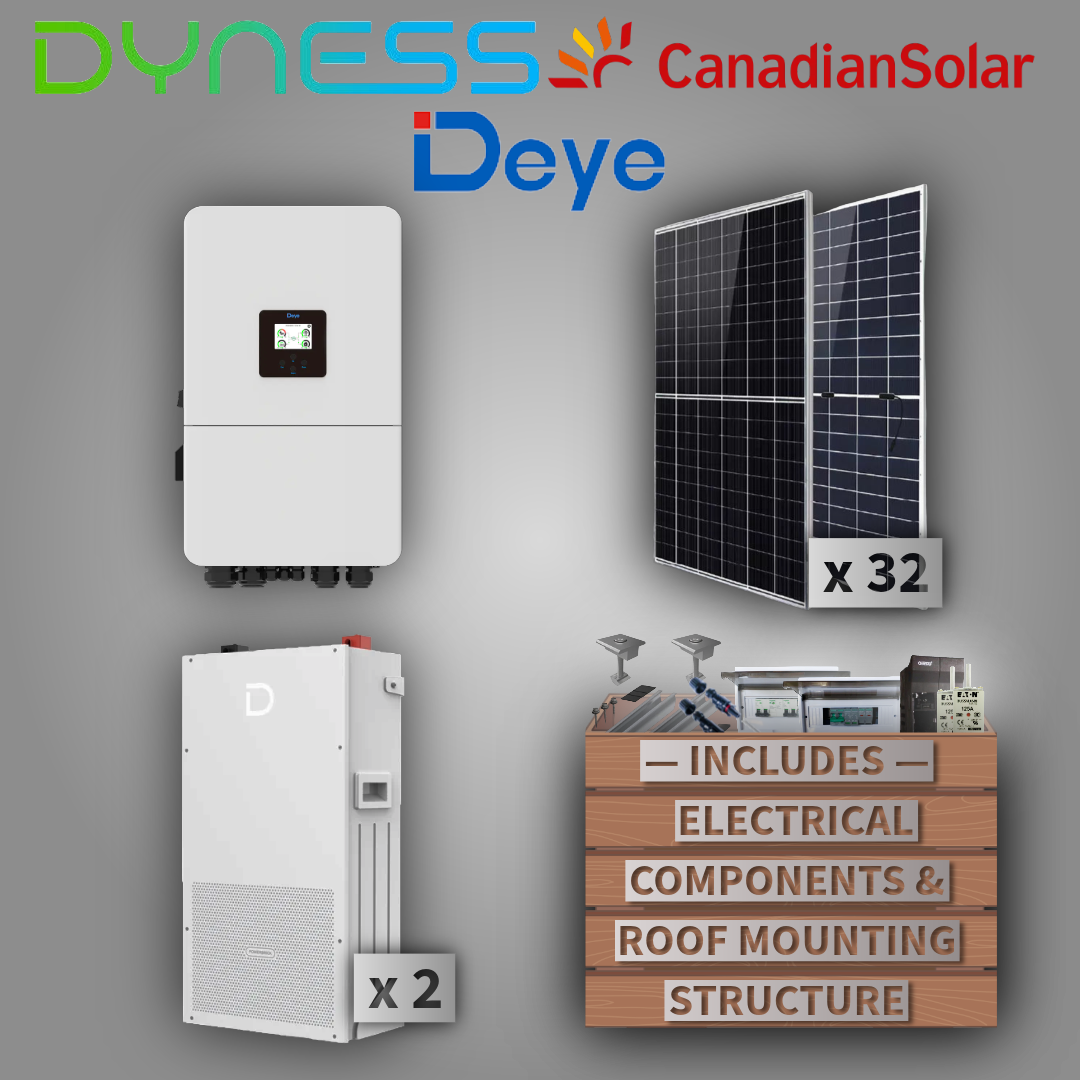

Deye 20kW 3P Hybrid Inverter + 2× Dyness PowerBrick 14.3 kWh + 32 Canadian Solar Panels
🆔 Models
Inverter: Deye 20kW 3-Phase Hybrid Inverter
Battery: 2 × Dyness PowerBrick 14.3 kWh LiFePO₄ Batteries
Panels: 32 × Canadian Solar Panels
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X32
250A Battery Fuse Disconnector X1
🏷️ Brand
Deye + Dyness
🔌 Type
Three-Phase Hybrid Inverter + Lithium-Ion Battery + Solar Panel Kit
Designed for large homes, commercial buildings, and industrial backup energy systems.
⚡ Key Features
🔆 Deye 20kW 3P Hybrid Inverter
-
20kW continuous three-phase output — supports large commercial and industrial loads
-
2 MPPT channels for optimal solar energy harvest
-
Fast switchover for uninterrupted backup
-
Operates in Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Advanced load management and scheduling features
-
Wi-Fi enabled monitoring and app integration
-
Generator support and parallel operation for future expansion
-
High reliability under heavy daily cycling and peak loads
🔋 Dyness PowerBrick 14.3 kWh Batteries (×2)
-
Total of 28.6 kWh storage — ideal for extended backup or heavy load applications
-
Safe LiFePO₄ chemistry with integrated smart BMS
-
High discharge capability to support 20kW inverter load
-
Modular design allows scalable expansion
-
6000+ cycle lifespan for long-term energy reliability
-
Floor-standing modules with CAN/RS485 communication for inverter integration
☀️ Canadian Solar Panels (×32)
-
High-efficiency monocrystalline PV modules
-
Reliable long-term energy production for commercial and industrial systems
📐 Specifications
Inverter — Deye 20kW 3P
| Specification | Value |
|---|---|
| Rated Power | 20 kW |
| Phase | Three-Phase |
| Battery Voltage | 48–60 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ~25 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Dyness PowerBrick 14.3 kWh (×2)
| Specification | Value |
|---|---|
| Nominal Energy | 28.6 kWh (2 units) |
| Usable Energy | ~90–95% DoD |
| Nominal Voltage | 48 V class |
| Chemistry | LiFePO₄ |
| Cycle Life | 6000+ cycles |
| Communication | CAN / RS485 |
| Max Charge/Discharge | Supports 20kW system |
| Installation | Floor-standing modules |
🏷️ Quality & Support
This Deye + Dyness bundle provides a robust hybrid solar solution for commercial and industrial applications. The 20kW three-phase inverter delivers high-output performance, while the dual 14.3 kWh PowerBrick batteries ensure safe, reliable, and expandable energy storage. Combined with 32 Canadian Solar panels, the system offers efficient solar generation, long-term durability, and dependable backup for large-scale energy needs.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
