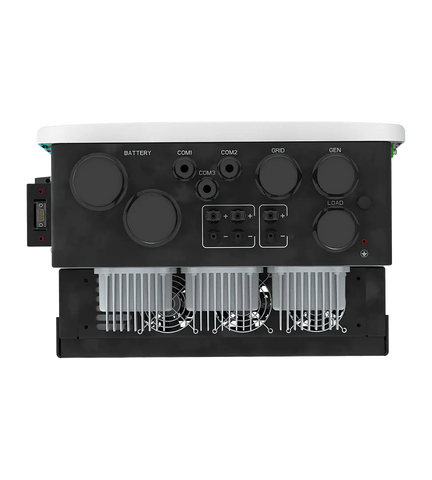

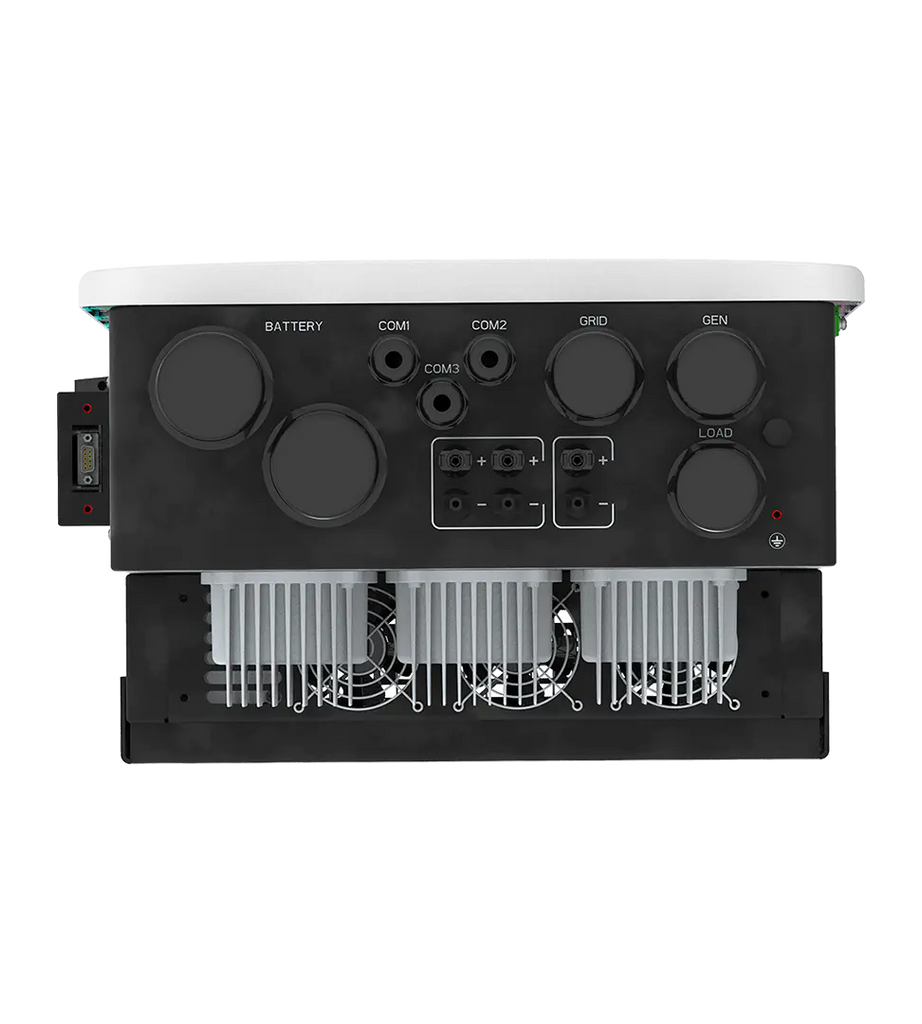

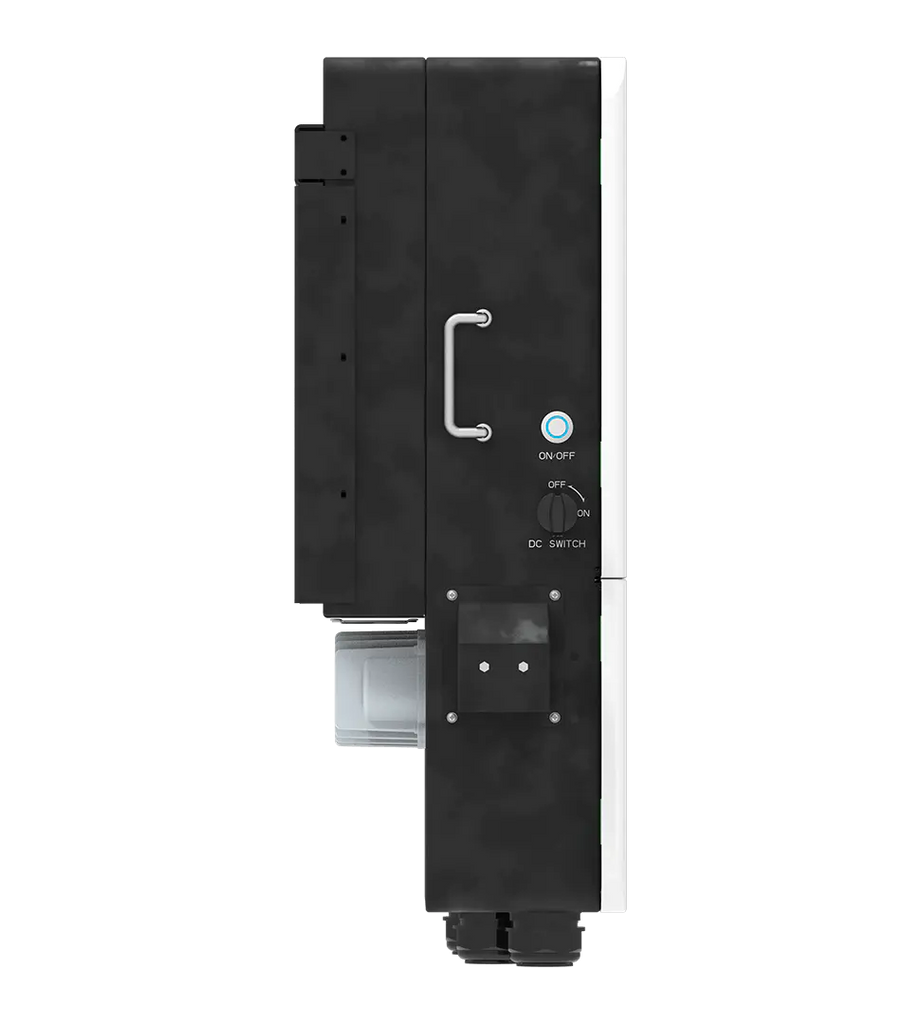

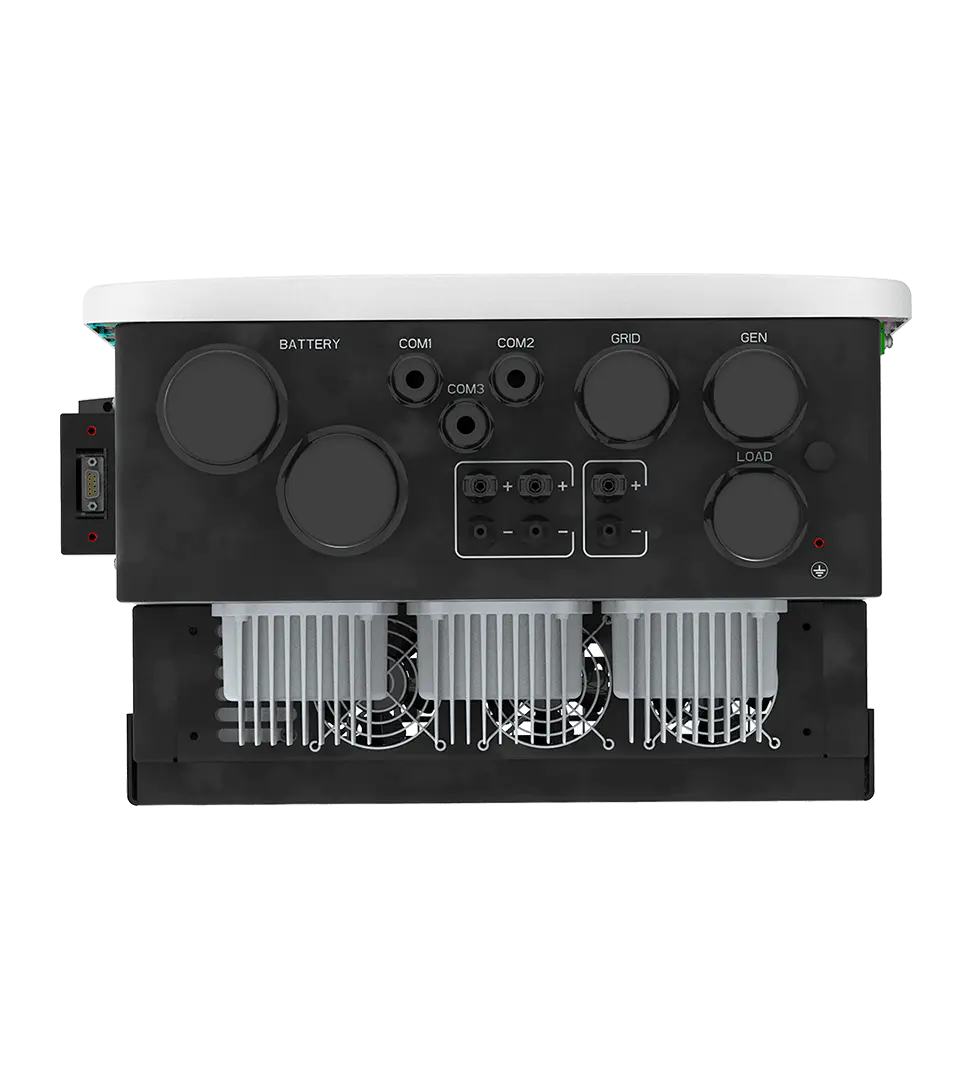

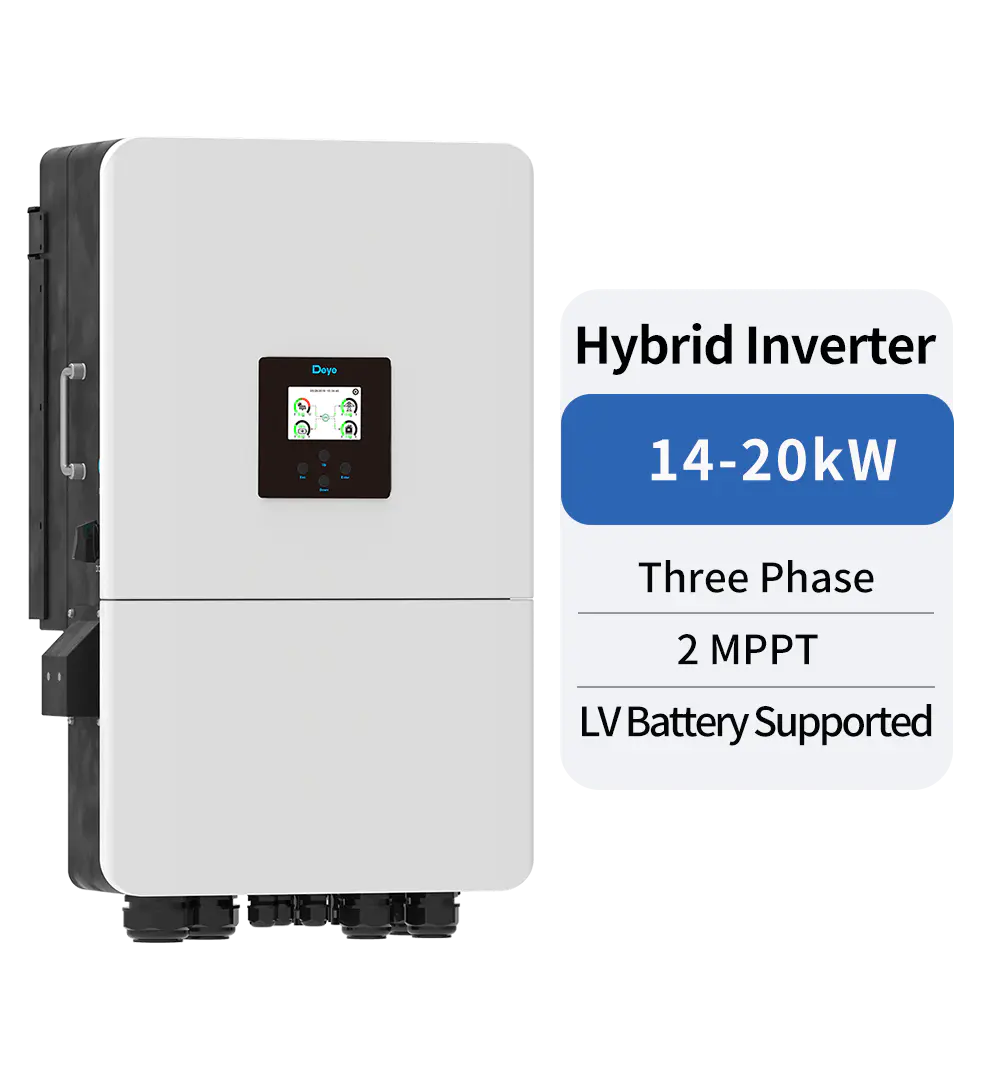

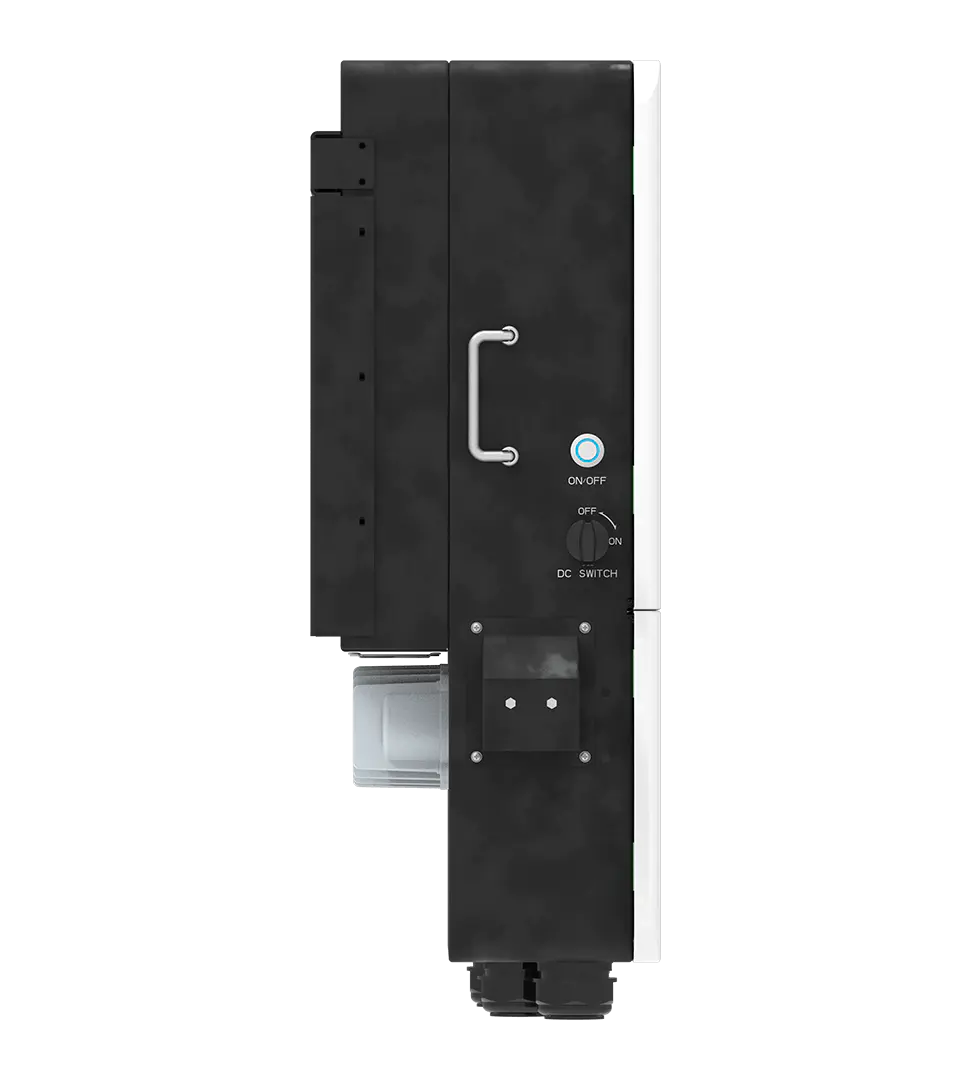

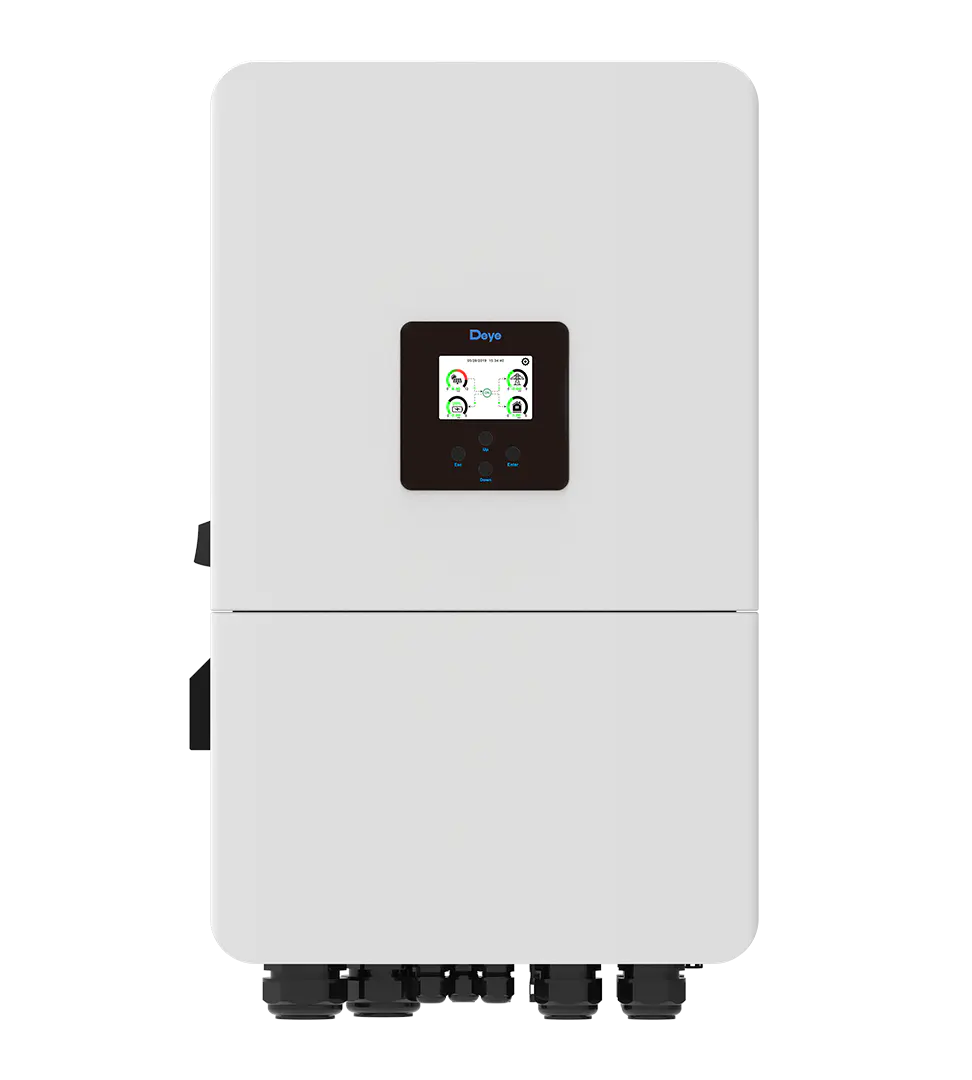

Deye 20kW 3P LV Hybrid Inverter
Couldn't load pickup availability
🔌 Deye SUN‑20K‑SG05LP3‑EU‑SM2 – 20 kW 3-Phase Low-Voltage Hybrid Inverter
Brand: Deye
Type: Three-Phase Hybrid Inverter (Solar + Low-Voltage Battery + Grid Integration)
⚡ Key Features
-
20 kW rated AC output in a three-phase configuration — well-suited for larger residential, commercial or industrial three-phase solar + storage systems.
-
Supports low-voltage battery systems (typically ~40-60 V) with high charge/discharge currents for rapid energy cycling.
-
Dual MPPT trackers for flexible solar string configuration and maximised yield.
-
Wide PV string voltage range (start-up from ~160 V up to ~650-V MPPT) — accommodates large PV arrays.
-
100% unbalanced output capability — each phase can output up to half the rated power independently, offering load flexibility.
-
Parallel operation supported — up to multiple units in parallel for increased capacity and scalability.
-
IP65 rated enclosure — suitable for indoor or sheltered outdoor installation, designed for harsh environments.
📐 Specifications (indicative)
| Specification | Value |
|---|---|
| Model | SUN-20K-SG05LP3-EU-SM2 |
| Rated AC Output Power | 20 kW |
| Number of MPPTs | 2 |
| Battery Voltage Range | ~40-60 V |
| Max Battery Charge/Discharge Current | ~350 A |
| Max PV Input Power | Up to ~26-40 kW (depending on site) |
| Max DC Input Voltage / MPPT Range | ~800 V / ~160-650 V |
| Efficiency (Max) | ~97.6% |
| Protection Degree | IP65 |
| Grid Type | Three-phase (3L+N+PE) |
| Unbalanced Load Support | 100% per phase (up to ~50% rated) |
| Parallel Units Supported | Up to ~10 (or more depending on config) |
| Operating Temperature Range | ~–40 °C to +60 °C |
| Dimensions / Weight (approx.) | ~456 × 750 × 268.5 mm / ~50.6 kg |
| Warranty | Standard (typically 5 years, extendable) |
🏷️ Quality & Support
This Deye 20 kW three-phase low-voltage hybrid inverter integrates solar PV generation, a low-voltage battery storage system, and grid interaction into a single robust unit. With high efficiency, broad PV input range, flexible battery support, and unbalanced output capability, it’s a strong solution for three-phase systems needing backup, storage and self-consumption. The IP65 rating makes it suitable for installations in challenging environments such as Johannesburg where durability and reliability matter.
