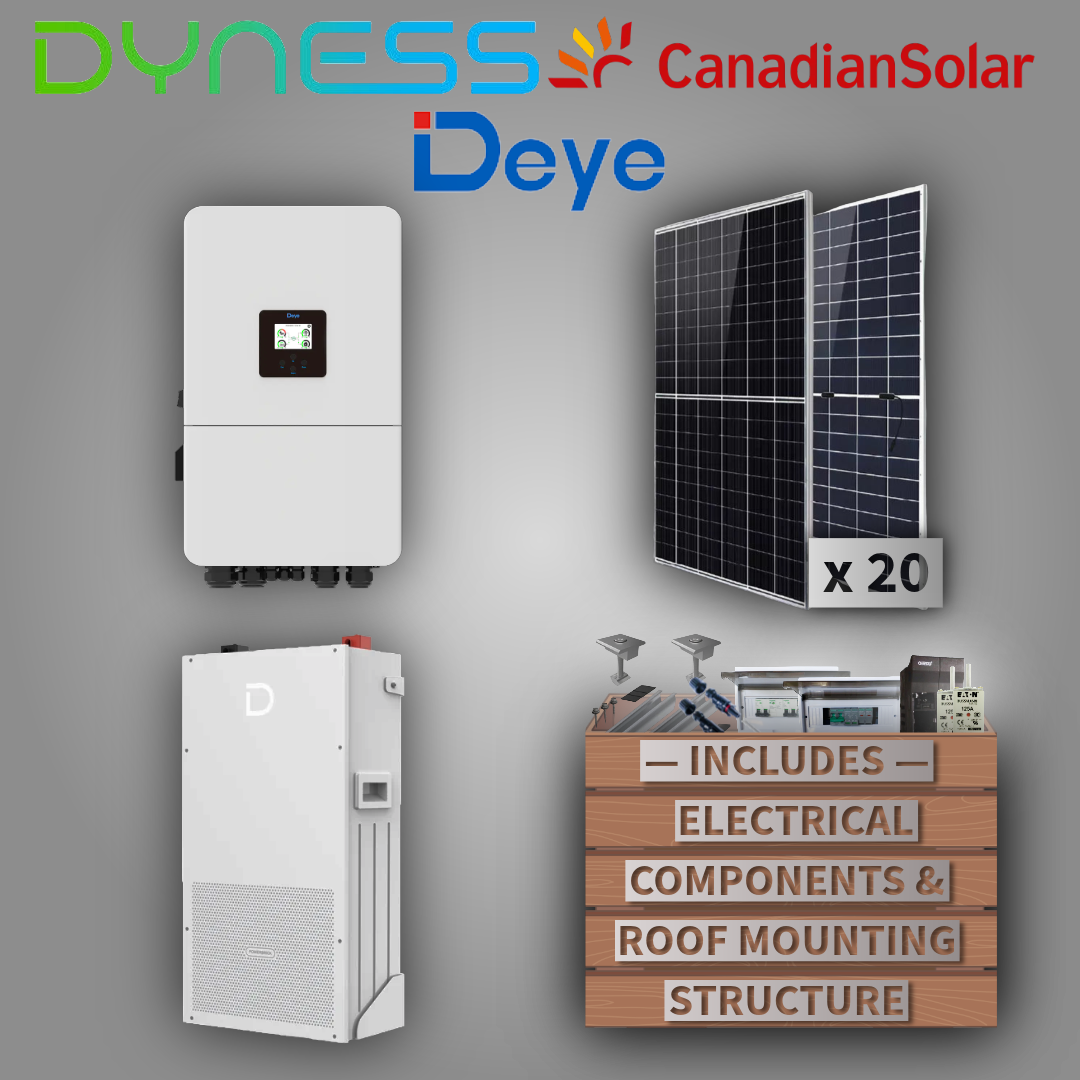

Deye 12kW 3P Inverter + Dyness 14.3kW Powerbrick + 20 Canadian Solar Panels
Couldn't load pickup availability
Deye 12kW 3P Hybrid Inverter + Dyness PowerBrick 14.3 kWh + 20 Canadian Solar Panels
🆔 Models
Inverter: Deye 12kW 3-Phase Hybrid Inverter
Battery: Dyness PowerBrick 14.3 kWh LiFePO₄ Battery
Panels: 20 × Canadian Solar Panels
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X20
10kW-16kW Inverter AC DB Kit Box X1
250A Battery Fuse Disconnector X1
🏷️ Brand
Deye + Dyness
🔌 Type
Three-Phase Hybrid Inverter + Lithium-Ion Battery + Solar Panel Kit
Designed for commercial, industrial, and large residential applications requiring reliable backup.
⚡ Key Features
🔆 Deye 12kW 3P Hybrid Inverter
-
12kW continuous output — supports commercial or high-demand residential loads
-
Multiple MPPT channels for optimal solar energy harvesting
-
Ultra-fast switchover for uninterrupted backup power
-
Operates in Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Advanced load management and programmable schedules
-
Wi-Fi monitoring and mobile app integration
-
Generator support and parallel-ready for system expansion
-
High reliability under heavy daily cycling
🔋 Dyness PowerBrick 14.3 kWh Battery
-
14.3 kWh storage — ideal for extended backup or high-demand usage
-
Safe LiFePO₄ chemistry with integrated smart BMS
-
High discharge capability compatible with 12kW inverter loads
-
Modular and expandable for future growth
-
6000+ cycle lifespan for long-term reliability
-
Floor-standing module with CAN/RS485 communication for inverter integration
☀️ Canadian Solar Panels
-
High-efficiency monocrystalline PV modules
-
Durable, long-lasting energy production for commercial and residential hybrid systems
📐 Specifications
Inverter — Deye 12kW 3P
| Specification | Value |
|---|---|
| Rated Power | 12 kW |
| Phase | Three-Phase |
| Battery Voltage | 48–60 V (LV) |
| MPPT Trackers | Multiple |
| Max PV Input | ~15–18 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Dyness PowerBrick 14.3 kWh
| Specification | Value |
|---|---|
| Nominal Energy | 14.3 kWh |
| Usable Energy | ~90–95% DoD |
| Nominal Voltage | 48 V class |
| Chemistry | LiFePO₄ |
| Cycle Life | 6000+ cycles |
| Communication | CAN / RS485 |
| Max Charge/Discharge | Supports 12kW system |
| Installation | Floor-standing module |
🏷️ Quality & Support
This Deye + Dyness bundle delivers a reliable hybrid solar solution for commercial or large residential setups. The 12kW three-phase inverter ensures robust performance under heavy loads, while the 14.3 kWh PowerBrick provides safe, expandable, and long-lasting energy storage. Paired with 20 Canadian Solar panels, this system guarantees efficient solar generation and dependable backup power.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
