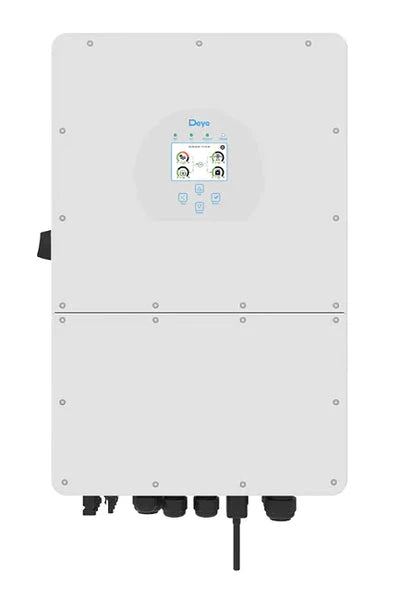

Colorful touch LCD, IP65 protection degree
AC‑couple to retrofit existing solar system
Max. 16 pcs parallel for on‑grid and off‑grid operation; Support multiple batteries parallel
Max. charging/discharging current of 290 A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Hybrid functionality with UPS, peak‑shaving, and self‑consumption/export control
PV String Input Data:
Max. PV Access Power : 19 200–24 000 W
Max PV Input Power : ~19 200–24 000 W
Max PV Input Voltage : 500 V
Start‑up Voltage : 125 V
MPPT Voltage Range : 150–425 V
No. of MPPTs / Strings : 3 MPPTs (each with 2 strings)
Max Input Current : up to ~54 A + ~54 A + ~54 A
Max Short‑Circuit Current : ~? (aligned with input current)
Battery Input Data:
Battery Type : Lead‑acid or Lithium‑ion
Battery Voltage Range : 40–60 V
Max. Charging/Discharging Current : 250–290 A
Charging Strategy : Self‑adaptation to BMS
Number of Battery Inputs : 1
AC Input/Output Data:
Rated AC Input/Output Active Power : 12 000 W
Max AC Input/Output Apparent Power : 13 200 VA
Rated AC Input/Output Current : ~54.5 A / ~52.2 A
Max AC Input/Output Current : ~60 A / ~57.4 A
Max Continuous AC Passthrough : ~50 A
Peak Off‑Grid Power : 2× rated for 10 s
Voltage/Frequency: 230 V, 50/60 Hz; PF programmable
