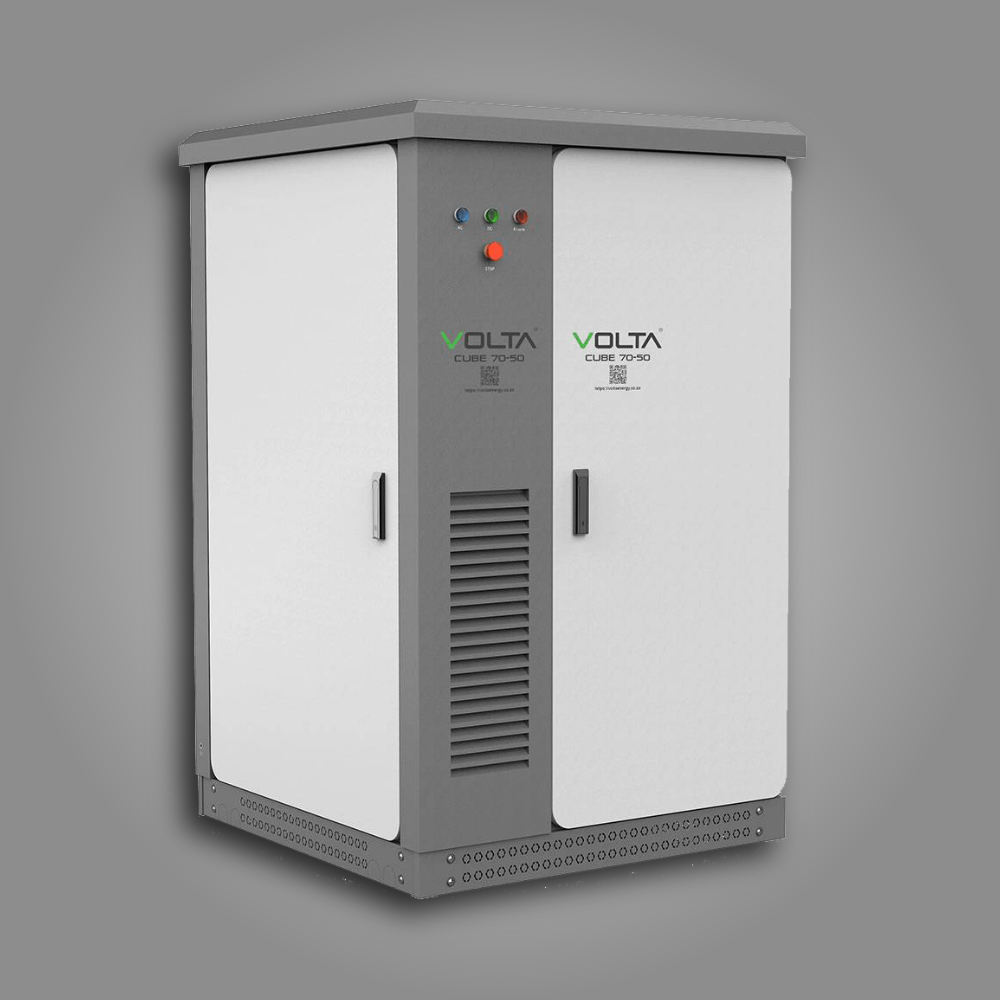

Volta Cube 70-50 70kWh Battery Energy Storage System
Couldn't load pickup availability
🔋 Volta Cube 70-50 Commercial Battery Energy Storage System
Model: CUBE 70-50
Brand: Volta
Type: Integrated High-Voltage LiFePO₄ Commercial & Industrial Battery Energy Storage System (ESS)
⚡ Key Features
- High-capacity 71 kWh integrated energy storage system designed for commercial, industrial, and large-scale backup power applications.

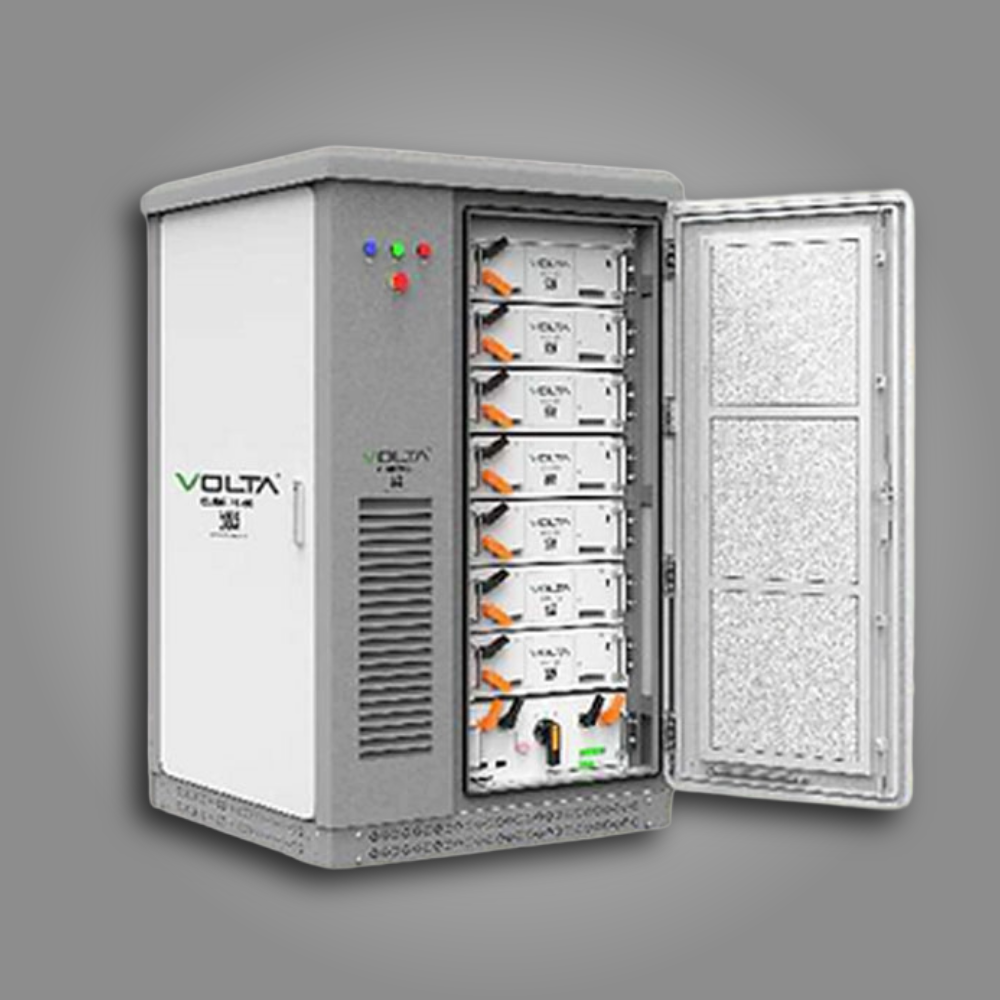

- Complete all-in-one cabinet integrating LiFePO₄ battery modules, Smart BMS, PCS, air-conditioning, temperature control, fire detection, and automatic aerosol fire suppression.
- Premium LiFePO₄ (LFP) battery chemistry delivers exceptional safety, long service life, and high energy efficiency.
- Intelligent Smart BMS continuously monitors cell voltage, temperature, current, and overall system health.
- Built-in aerosol fire suppression system provides automatic fire detection and protection.
- Air-cooled thermal management system maintains optimal operating temperatures for maximum reliability.
- Optional Wi-Fi remote monitoring with dedicated mobile app for real-time monitoring and diagnostics.
- High-voltage architecture reduces cable losses while improving overall system efficiency.
- Factory-integrated cabinet enables rapid deployment and simplified installation.
- Suitable for commercial buildings, factories, warehouses, agricultural facilities, schools, hospitals, and large backup power systems.
- Long service life with 6,000+ operating cycles and a 10-year warranty.
📐 Specifications
| Specification | Value |
|---|---|
| Model | CUBE 70-50 |
| Battery Chemistry | LiFePO₄ (LFP) |
| Nominal Energy | 71 kWh |
| Nominal Voltage | 716.8 V |
| Nominal Capacity | 100 Ah |
| Standard Charge Voltage | 806.4 V |
| Discharge Cut-Off Voltage | 645 V |
| Maximum Charge Current | 100 A |
| Maximum Discharge Current | 100 A |
| Cooling Method | Air-Cooled |
| Fire Protection | Integrated Aerosol Fire Suppression |
| Cycle Life | ≥6,000 Cycles (25°C, 0.2C, 80% EOL) |
| Operating Temperature | -20°C to 50°C |
| Maximum Operating Altitude | ≤2,000 m |
| Operating Humidity | ≤95% RH (Non-Condensing) |
| Warranty | 10 Years |
📏 Physical Specifications
| Specification | Details |
|---|---|
| Dimensions (W × D × H) | 1066 × 1174 × 1561 mm |
| Weight | Approximately 850 kg |
🔧 Technical & Build
| Specification | Details |
|---|---|
| System Type | Integrated Commercial Battery Energy Storage System (ESS) |
| Battery Management | Intelligent Smart BMS |
| Power Conversion | Integrated PCS |
| Cooling | Air-Cooled Climate Control |
| Fire Protection | Automatic Aerosol Fire Suppression |
| Monitoring | Optional Wi-Fi Remote Monitoring |
| Mobile Monitoring | Self-Developed Mobile App |
| Installation | Floor-Standing Integrated Cabinet |
| Application | Commercial & Industrial Energy Storage |
ℹ️ Additional Information
- Fully integrated battery storage cabinet designed for fast installation and simplified commissioning.
- Ideal for commercial buildings, manufacturing plants, agricultural operations, warehouses, hospitals, educational facilities, and backup power applications.
- Intelligent monitoring enables real-time diagnostics and remote system management.
- High-voltage design minimizes current losses while maximizing overall system efficiency.
- Professional installation and commissioning are recommended.
🏷️ Quality & Support
The Volta Cube 70-50 is a fully integrated commercial battery energy storage system engineered for safe, efficient, and reliable high-voltage energy storage. Combining premium LiFePO₄ battery technology, intelligent battery management, integrated cooling, PCS, and automatic aerosol fire suppression in a single cabinet, it delivers dependable long-term performance with simplified deployment. Backed by a 10-year warranty and 6,000+ operating cycles, the Cube 70-50 is an ideal solution for commercial, industrial, and large-scale backup energy storage applications.
