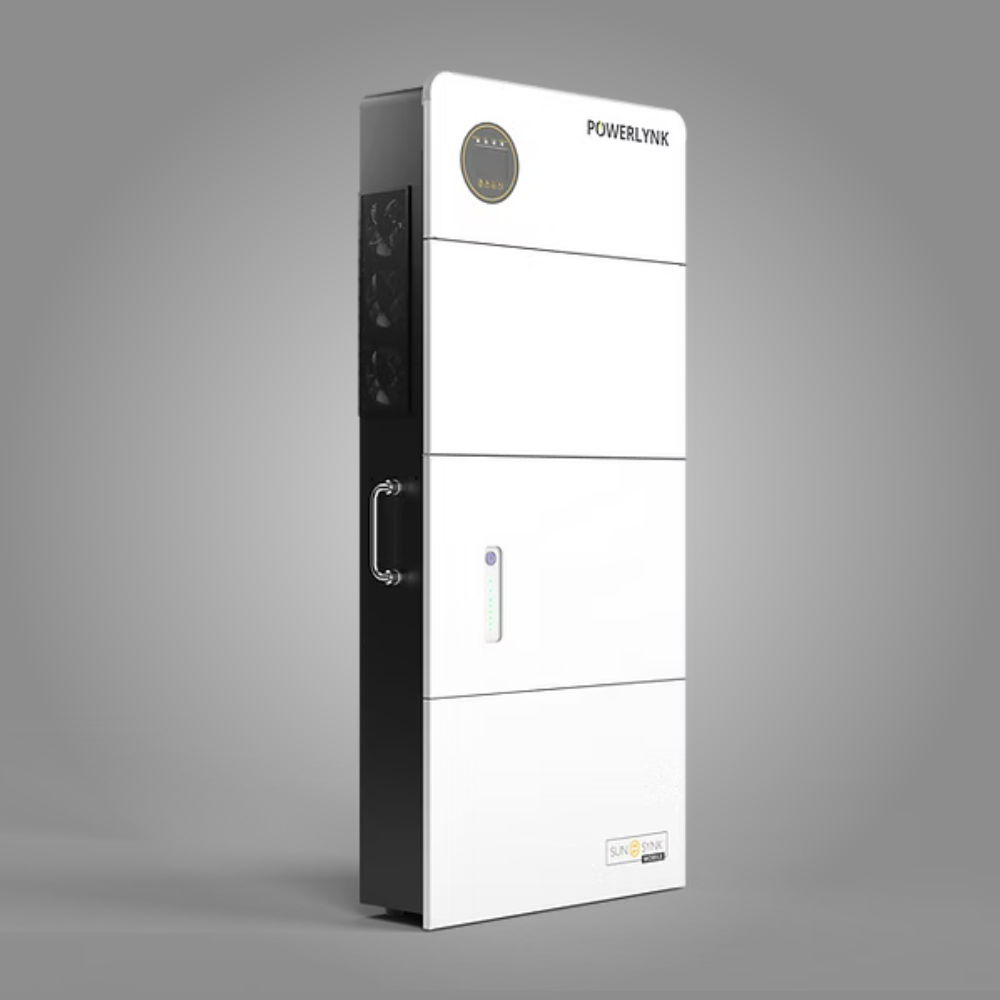

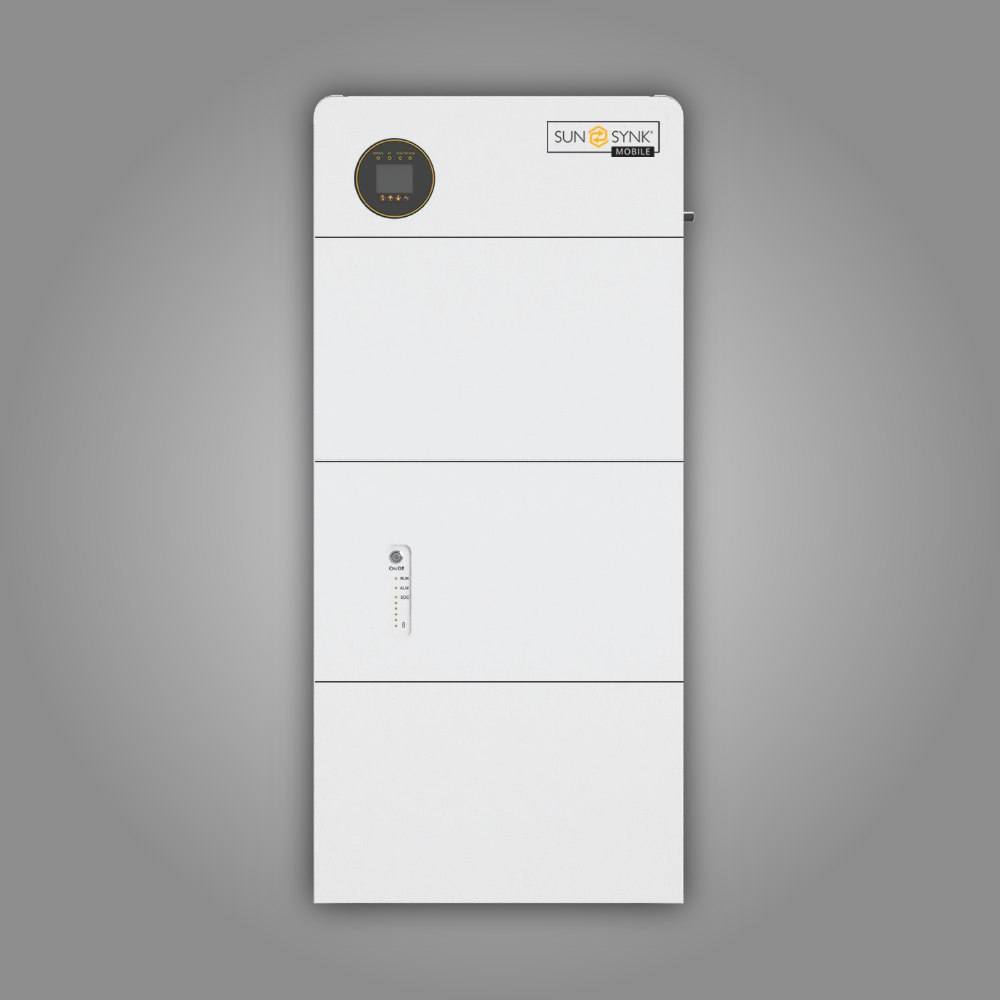

Sunsynk Powerlynk XLS 6kW Hybrid Inverter and 5.12kWh Battery
Couldn't load pickup availability
Sunsynk Powerlynk XLS 6kW Hybrid Inverter & 5.12kWh Battery
Model: Powerlynk XLS 6kW
Brand: Sunsynk
Type: All-In-One Hybrid Inverter & Lithium Battery Energy Storage System
Key Features
• All-in-one hybrid energy storage system — inverter and lithium battery integrated into one compact solution
• Plug-and-play installation — designed for rapid deployment in new builds and retrofit projects
• 6kW hybrid inverter output — suitable for residential and light commercial applications
• Integrated 5.12kWh LiFePO₄ battery — reliable backup and daily energy storage
• Dual MPPT solar inputs — supports up to 8kW PV array capacity
• Fast UPS switching — seamless transition within 10ms during outages
• High conversion efficiency — up to 97.6% inverter efficiency and 99.9% MPPT efficiency
• Parallel battery scalability — supports up to 15 battery modules in parallel
• Smart monitoring included — Wi-Fi logger with Sunsynk Connect platform integration
• Advanced battery protection — overcharge, low-voltage, over-temperature, and short-circuit protection
• Compact vertical design — ideal for modern residential installations
PV Input Specifications
| Specification | Details |
|---|---|
| Max PV Input Power | 8000W (4000W × 2) |
| Number of MPPTs | 2 |
| MPPT Voltage Range | 120V – 450V |
| Max PV Input Voltage | 500V |
| Max Input Current | 30A (15A per MPPT) |
AC Output & Grid Specifications
| Specification | Details |
|---|---|
| Rated Output Power | 6000W |
| Peak Apparent Power | 12000VA |
| Output Voltage | 220V / 230V / 240V AC |
| Phase Type | Single-Phase |
| Max Output Current | 26A |
| Transfer Time | 10ms |
| Max Efficiency | 97.6% |
| MPPT Efficiency | 99.9% |
Battery Specifications
| Specification | Details |
|---|---|
| Battery Chemistry | LiFePO₄ (LFP) |
| Nominal Voltage | 51.2V |
| Battery Capacity | 100Ah |
| Usable Energy | 5.12kWh |
| Max Charge / Discharge Current | 100A |
| Cycle Life | 3500 Cycles |
| Recommended Depth of Discharge | 80% |
| Scalability | Up to 15 Batteries in Parallel |
General Specifications
| Specification | Details |
|---|---|
| Dimensions | 516 × 179 × 1128 mm |
| Weight | 75.5 kg |
| Protection Rating | IP40 |
| Discharge Temperature | -15°C to +50°C |
| Charge Temperature | 0°C to +50°C |
Monitoring & Communication
| Specification | Details |
|---|---|
| Monitoring Platform | Sunsynk Connect |
| Connectivity | Wi-Fi Data Logger Included |
| Remote Monitoring | Supported |
Protection Features
• Overcharge protection
• Low-voltage protection
• Over-temperature protection
• Short-circuit protection
Applications
• Residential solar backup systems
• Load shedding protection
• Hybrid solar installations
• New-build energy storage systems
• Retrofit solar upgrades
Quality & Support
The Sunsynk Powerlynk XLS 6kW combines hybrid inverter functionality and lithium energy storage into a streamlined plug-and-play platform. With dual MPPT tracking, scalable storage, and intelligent monitoring, it provides a reliable and efficient solution for modern residential backup and solar energy applications.
DATASHEET
USER MANUAL
