  • Sunsynk Lynks Pro 2nd Generation 12kW 48Vdc Single Phase IP65 Hybrid Inverter
1 2

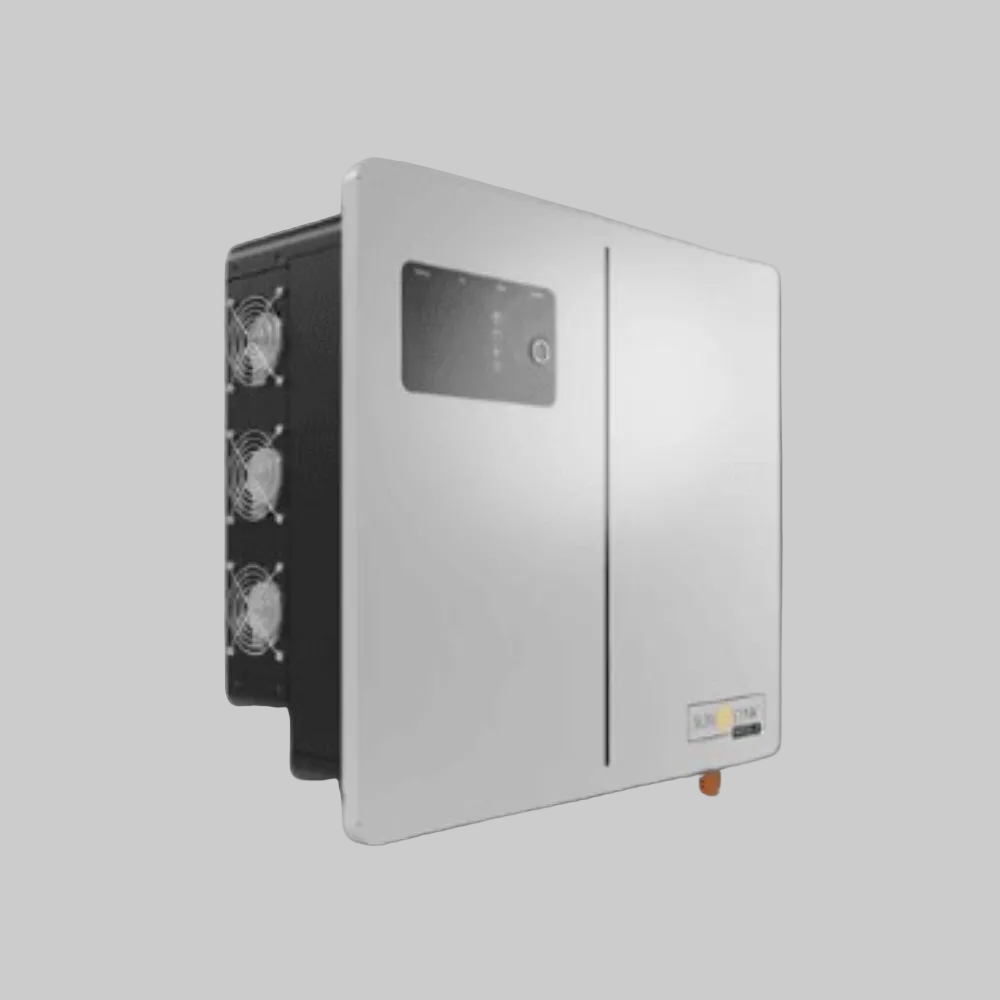

Sunsynk Lynks Pro 2nd Generation 12kW 48Vdc Single Phase IP65 Hybrid Inverter

← Back

R 30,300.00 ZAR
R 36,900.00 ZAR R 30,300.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Sunsynk Lynks Pro 2nd Generation 12kW Hybrid Inverter

Model: Lynks Pro 12kW Gen 2
Brand: Sunsynk
Type: 48Vdc Single-Phase IP65 Hybrid Inverter

Key Features

• Powerful 12kW hybrid inverter — ideal for large residential and light commercial energy systems
• Advanced hybrid functionality — combines solar, battery, grid, and generator integration
• Dual MPPT solar inputs — supports up to 18kW PV array capacity
• High battery charge/discharge capability — up to 220A charging and 260A discharge current
• Compatible with LiFePO₄ and lead-acid batteries — flexible energy storage support
• Fast UPS functionality — seamless 10ms switchover during outages
• High surge capacity — up to 24kVA peak output for demanding loads
• IP65-rated enclosure — suitable for indoor and outdoor installation
• Intelligent battery communication — direct BMS communication support for lithium batteries
• High conversion efficiency — up to 97.6% inverter efficiency and 99.9% MPPT efficiency
• Single-phase output — configurable 220V / 230V / 240V operation
• Smart energy management — optimised backup and self-consumption performance

Battery Specifications

Specification Details
Compatible Battery Types LiFePO₄ / Lead-Acid
Battery Voltage Range 40V – 60V
Max Charge Voltage 60V (Configurable)
Max Charge Current 220A
Max Discharge Current 260A
Recommended Battery Capacity 100Ah – 2000Ah
Battery Communication BMS Communication Supported

PV Input Specifications

Specification Details
Max PV Input Power 18,000W
Max DC Input Voltage 500V
MPPT Voltage Range 120V – 450V
Start-Up Voltage 150V
Number of MPPTs 2
Max Input Current 60A Total (30A × 2)

AC Output Specifications

Specification Details
Rated Output Power 12,000W
Rated Apparent Power 12,000VA
Peak Apparent Power 24,000VA
Max Output Current 55A
Nominal Voltage 220V / 230V / 240V AC
Phase Type Single-Phase
Frequency 50Hz / 60Hz
Max Bypass Current 63A
Transfer Time 10ms

Efficiency

Specification Value
Max Efficiency 97.6%
MPPT Efficiency 99.9%

Protection Features

• Battery overcharge protection
• Battery low-voltage protection
• Over-temperature protection
• Output overload protection
• Output short-circuit protection
• Output over-voltage protection

General Specifications

Specification Details
Dimensions 620 × 585 × 255 mm
Weight 36 kg
Protection Rating IP65
Operating Temperature -20°C to +50°C
Temperature Derating Above 35°C

Applications

• Residential solar systems
• Large backup power systems
• Load shedding protection
• Hybrid solar installations
• Off-grid and grid-assisted energy systems

Quality & Support

The Sunsynk Lynks Pro Gen 2 12kW Hybrid Inverter combines high solar input capacity, powerful battery performance, and advanced backup functionality in a rugged IP65 platform. Designed for demanding residential and commercial installations, it delivers reliable energy management, flexible battery compatibility, and seamless power continuity.
