Sunsynk 10.65kWh Li-ion Battery 51,2V Demo
Couldn't load pickup availability

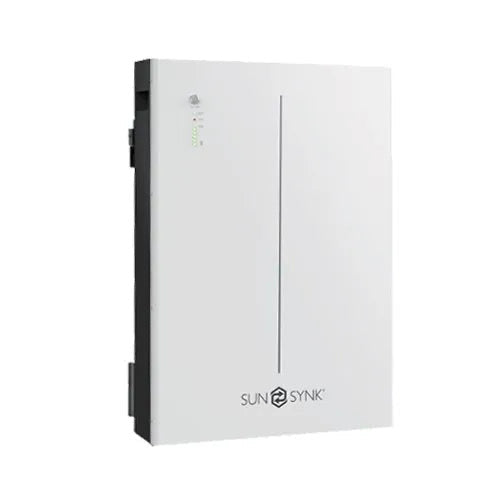

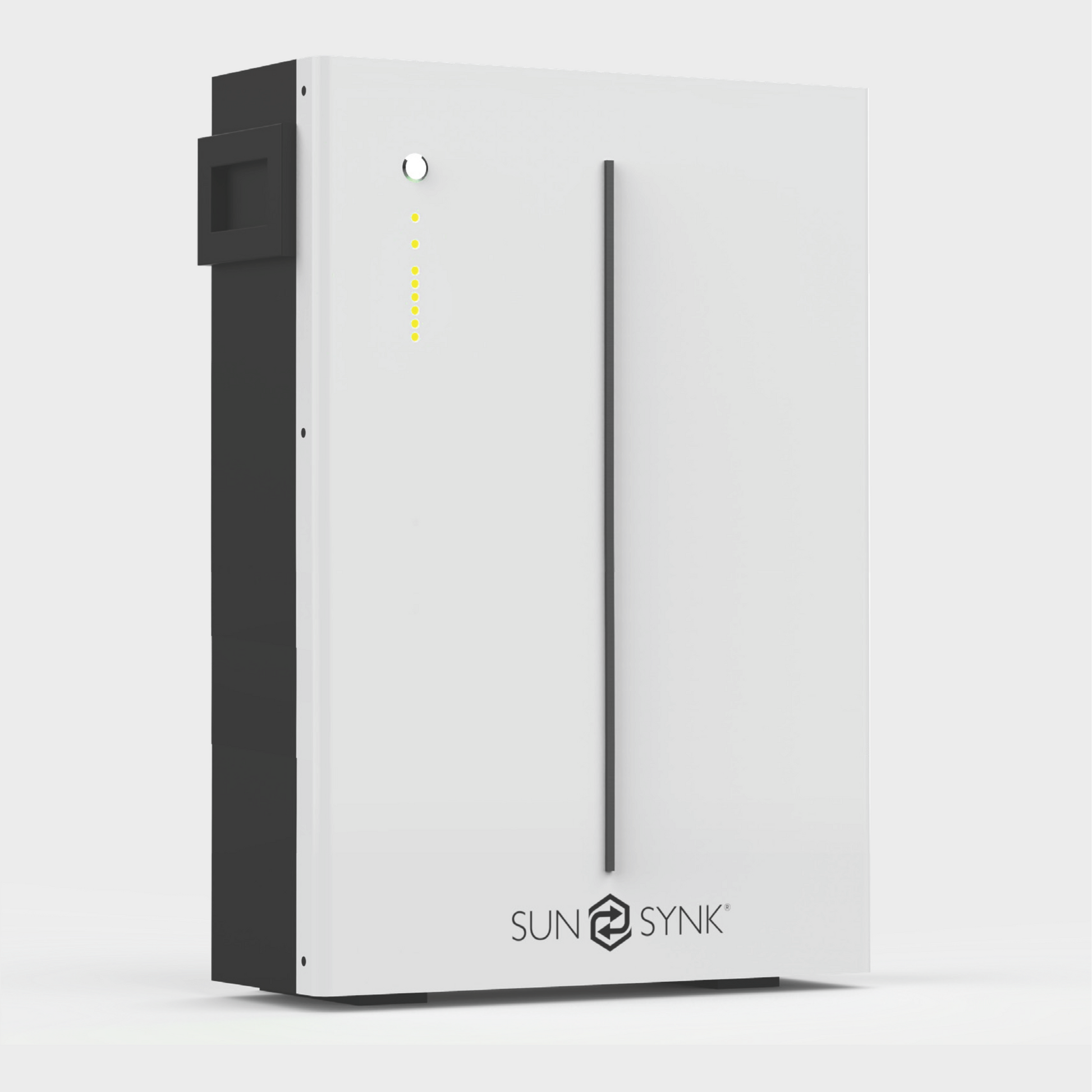

🔋 Sunsynk 10.65 kWh Li-Ion Battery 51.2 V
Model: 10.65
Brand: Sunsynk
Type: Modular Wall/Rack-Mounted LiFePO₄ (Lithium Iron Phosphate) Battery
⚡ Key Features
-
High-Capacity Storage – 10.65 kWh of usable energy for home or commercial backup.
-

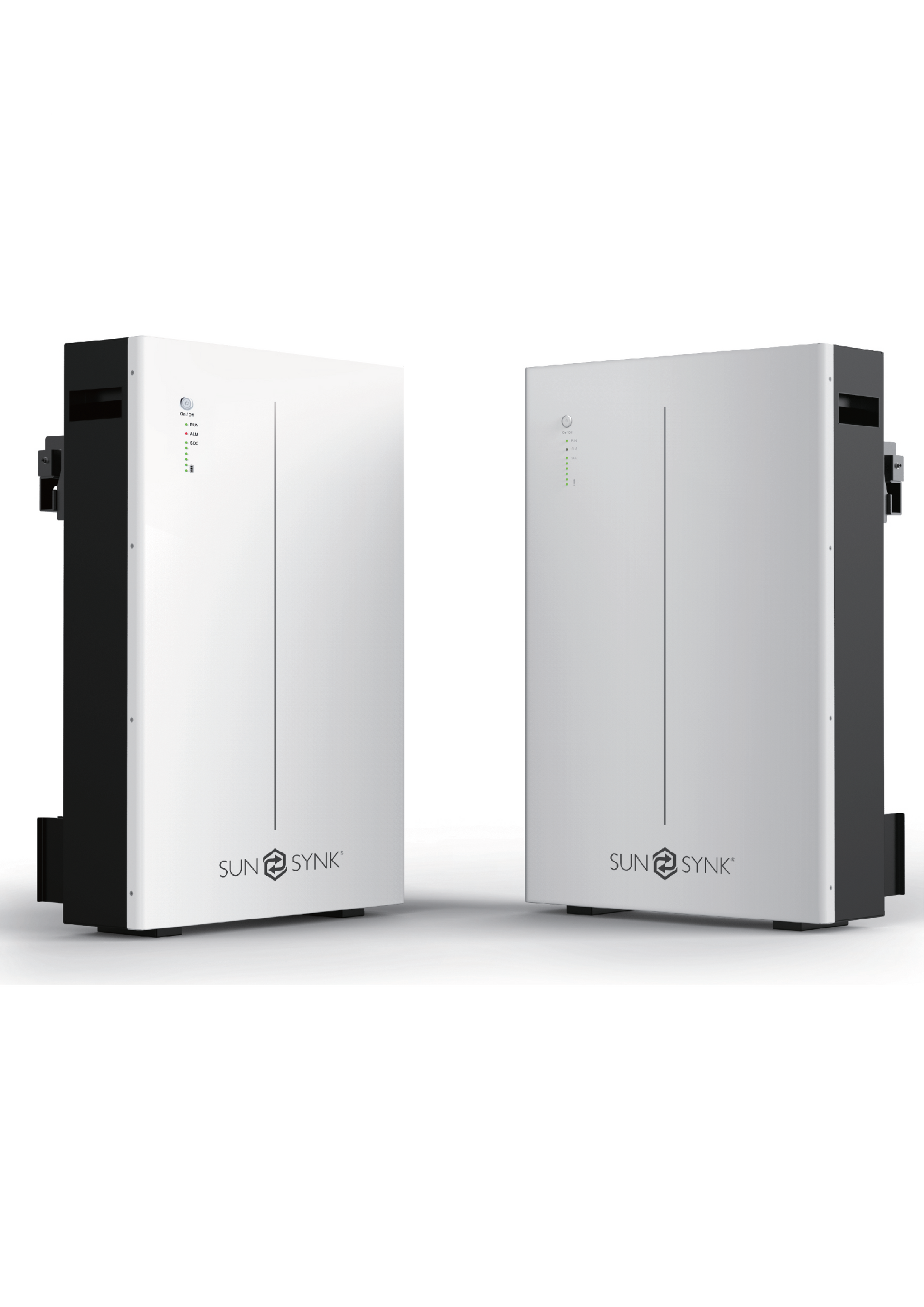

Modular Scalability – Easily expand capacity by connecting multiple units in parallel.
-
Long Cycle Life – Advanced LiFePO₄ cells ensure over 6,000 cycles with minimal degradation.
-
Smart Battery Management System (BMS) – Full protection from overcharge, over-discharge, over-current, and high temperature.
-
Seamless Integration – Compatible with Sunsynk hybrid inverters and other 48 V systems.
📐 Specifications
| Specification | Value |
|---|---|
| Model | G10.65 |
| Usable Energy Capacity | 10.65 kWh |
| Nominal Voltage | 51.2 V |
| Nominal Capacity (Ah) | 208 Ah |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Rated Cycle Life | > 6,000 cycles (@ 80 % DOD) |
| Operating Temperature | −10 °C – 50 °C |
| Communication Interface | CAN / RS485 |
| Scalability | Up to 16 units in parallel |
| Mounting Type | Wall / Rack mount |
| Dimensions (approx.) | 640 × 450 × 160 mm |
| Net Weight (approx.) | ≈ 86 kg |
| Warranty | 10 Years (Limited) |
🏷️ Quality & Support
The Sunsynk 10.65 kWh battery offers dependable, high-efficiency energy storage engineered for modern solar systems. Designed with advanced cell balancing, safety monitoring, and local service support, it ensures long-term performance and energy independence.
