Sunsynk Acure 8 kW Hybrid Inverter – 48 VDC 1-Phase
Couldn't load pickup availability

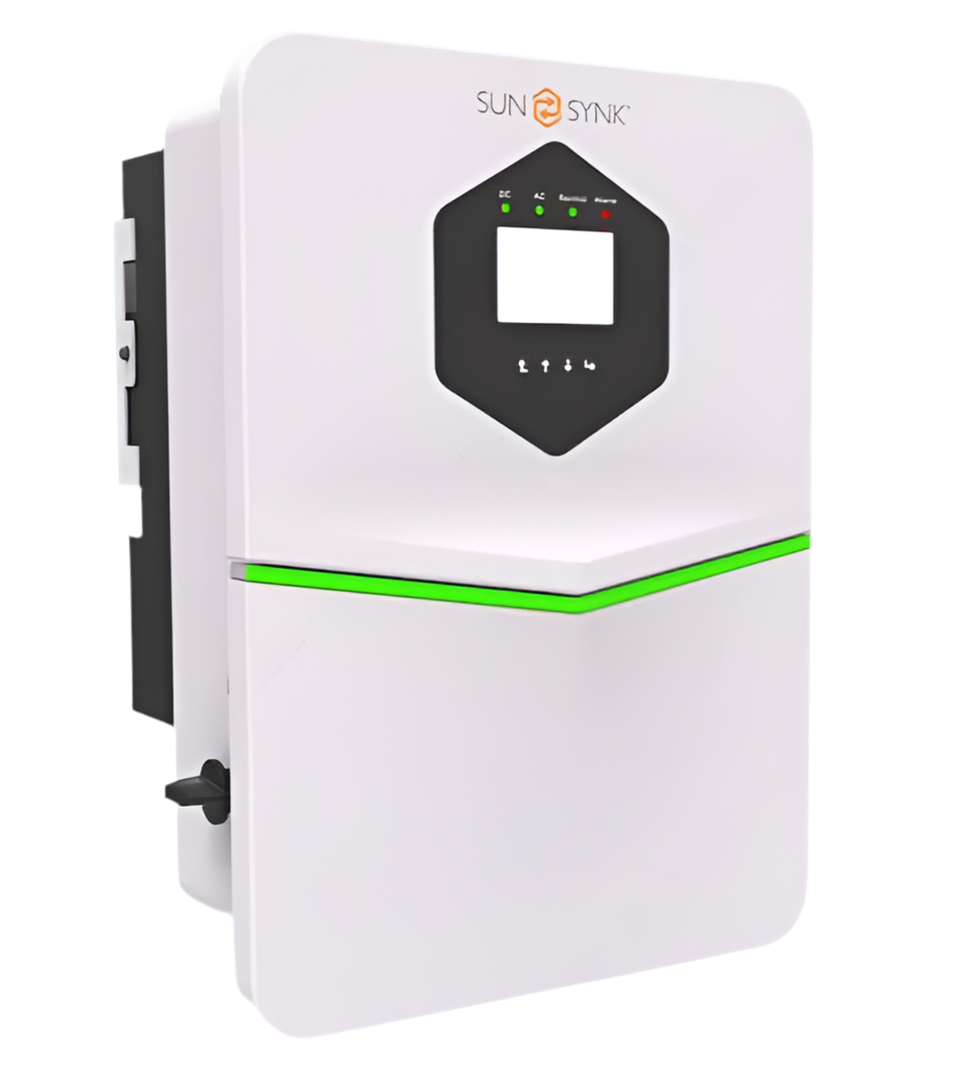

🔌 Sunsynk Acure 8kW 48Vdc Single-Phase Hybrid Inverter
Brand: Sunsynk
Model: Acure 8kW (48Vdc)
Type: Single-Phase Hybrid Inverter
Protection Rating: IP65 (Outdoor Rated)
Application: Residential & Small Commercial Solar + Battery + Grid Systems
⚡ Key Features
- 8kW continuous AC output — ideal for larger residential homes and light commercial installations.
- 48V DC battery compatibility — supports low-voltage LiFePO₄ battery systems.
- Single-phase hybrid design — seamlessly integrates solar PV, battery storage, utility grid, and generator backup.
- IP65-rated enclosure — weatherproof construction suitable for indoor or outdoor installation.

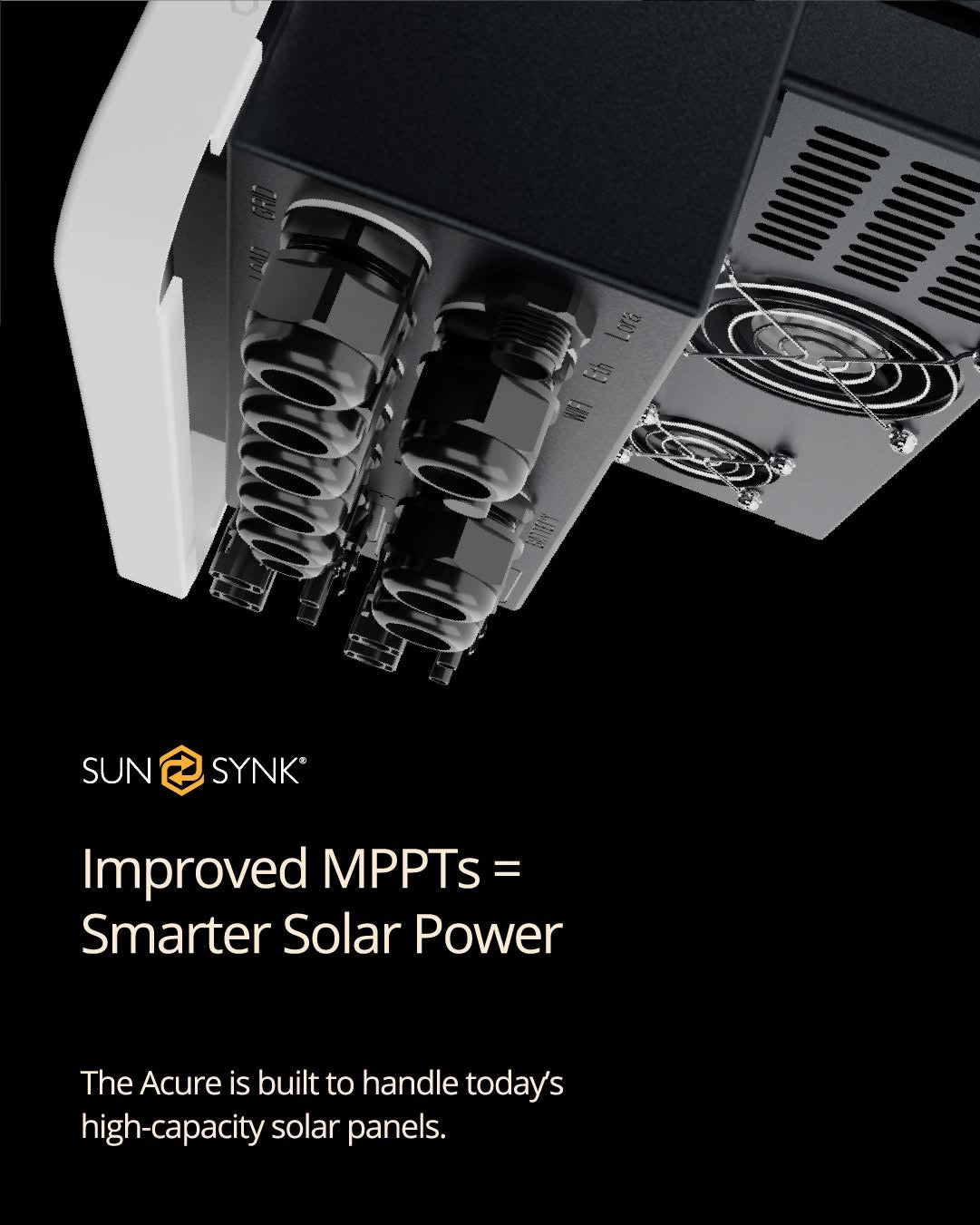

- Dual MPPT technology — maximises solar generation from multiple roof orientations.
- Fast UPS-grade switchover — delivers uninterrupted backup power during grid outages.
- Advanced hybrid energy management — supports self-consumption, time-of-use optimisation, peak shaving, and backup operation.
- Parallel operation supported — connect multiple units for increased power capacity.
- Built-in Wi-Fi monitoring — remote system monitoring, firmware updates, and cloud management.
- Comprehensive protection functions — over-voltage, over-current, anti-islanding, short-circuit, overload, and thermal protection.
📐 Specifications
| Specification | Value |
|---|---|
| Rated AC Output | 8 kW |
| Output Phase | Single Phase |
| AC Output Voltage | 230 V AC |
| Battery Input Voltage | 48 V DC |
| Battery Type | Lithium-ion / Lead-acid |
| MPPT Trackers | Dual MPPT |
| Maximum PV Input Power | High PV Capacity |
| Maximum DC Input Voltage | 500 V |
| MPPT Voltage Range | Wide Operating Range |
| Maximum Efficiency | Up to 97.6% |
| MPPT Efficiency | >99% |
| Protection Rating | IP65 |
| Communication | Wi-Fi, CAN, RS485 |
| Operating Modes | Hybrid, Grid-Tied, Off-Grid, Backup |
| Parallel Operation | Supported |
| Cooling | Intelligent Smart Cooling |
🏡 Applications
- Residential homes with high daily energy consumption.
- Solar and battery hybrid systems with grid connectivity.
- Backup power during load shedding and power outages.
- Off-grid and remote power installations with generator integration.
- Small commercial and office solar energy systems.
- Peak shaving and energy cost optimisation.
🏷️ Quality & Support
The Sunsynk Acure 8kW Hybrid Inverter is engineered to provide reliable, intelligent energy management for modern residential and small commercial solar installations. Combining advanced hybrid functionality, dual MPPT technology, seamless backup switching, and an IP65-rated weatherproof enclosure, it delivers exceptional efficiency and dependable performance in both grid-connected and off-grid applications. With smart monitoring, flexible battery compatibility, and scalable parallel operation, the Acure 8kW is built to meet today's energy demands while supporting future system expansion.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
