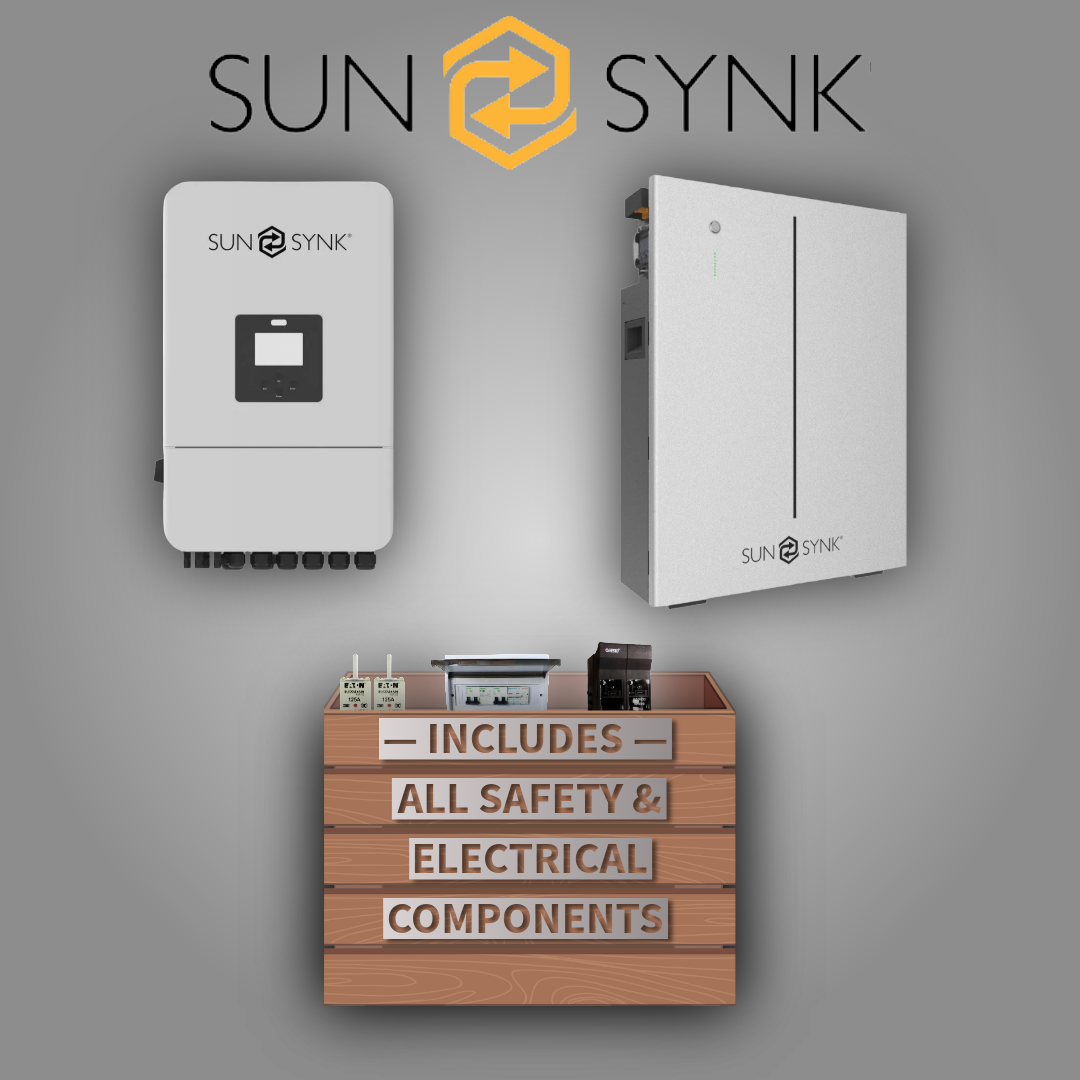

Sunsynk 8kW 1P Inverter + Sunsynk 10.24kWh Battery W Series

Sunsynk 8kW 1P Inverter + Sunsynk 10.24kWh Battery

🆔 Models

• Inverter: Sunsynk 8kW 1P LV Hybrid Inverter (New Generation)
• Battery: Sunsynk 10.24 kWh Lithium Iron Phosphate Battery — W Series (51.2 V)

Includes:

• 8kW Inverter AC DB Kit Box X1
• 250A Battery Fuse Disconnector X1
• 200A Battery Fuse X2

🏷️ Brand
Sunsynk

🔌 Type
Hybrid Inverter + Low-Voltage Lithium Battery Storage System
Ideal for residential, SME, and backup power applications.

⚡ Key Features

🔆 Sunsynk 8kW 1P LV Hybrid Inverter (New Gen)

• 8 kW continuous output — handles larger homes and high-demand loads
• Dual MPPT for maximum solar harvest
• Ultra-fast switching (<10 ms) — seamless loadshedding protection
• Supports Grid-Tie, Hybrid, Off-Grid, and Zero-Export modes
• Fully programmable charging and load scheduling
• Advanced monitoring via Sunsynk Connect (Wi-Fi enabled)
• Parallel-ready for system expansion
• Supports generators and smart load control
• Excellent efficiency and reliability under heavy daily use

🔋 Sunsynk 10.24 kWh Battery — W Series

• True 10.24 kWh storage (≈ 9.7 kWh usable @ 95% DoD)
• High-quality LiFePO₄ chemistry — long lifespan & exceptional safety
• Internal smart BMS with CAN/RS485 communication
• Floor-standing or wall-mounted modular design
• High discharge capability — suitable for 8 kW systems
• Long cycle life (6000+ cycles)
• Expandable — parallel multiple units
• Ideal for homes, solar-hybrid systems, and backup energy applications

📐 Specifications

Inverter — Sunsynk 8kW 1P LV (New Gen)

SpecificationValueRated Power8 kWPhaseSingle-PhaseBattery Voltage48 V (LV)MPPT Trackers2Max PV Input± 10.4 kWMax PV Voltage~500 VMax Efficiency± 97.6%Switching Time< 10 msCommunicationCAN / RS485 / Wi-FiModesHybrid / Grid-Tie / Off-Grid / Zero-ExportParallel OperationSupportedOperating Temp–25 °C to +60 °C

Battery — Sunsynk 10.24 kWh W Series

SpecificationValueNominal Energy10.24 kWhUsable Energy± 9.7 kWhNominal Voltage51.2 VChemistryLiFePO₄Nominal Capacity200 AhCycle Life6000+ cyclesMax Charge/Discharge100 ADepth of Discharge95%CommunicationCAN / RS485Parallel CapabilityYes (multiple units)MountingWall or FloorOperating Temp–20 °C to +55 °C

🏷️ Quality & Support
This premium Sunsynk bundle provides a powerful, scalable hybrid energy solution. The 8 kW 1P LV New Gen inverter delivers high-output performance for demanding households, while the 10.24 kWh W Series battery offers long-lasting, safe, and intelligent energy storage. Designed for solar optimisation, backup power, and long-term reliability.
