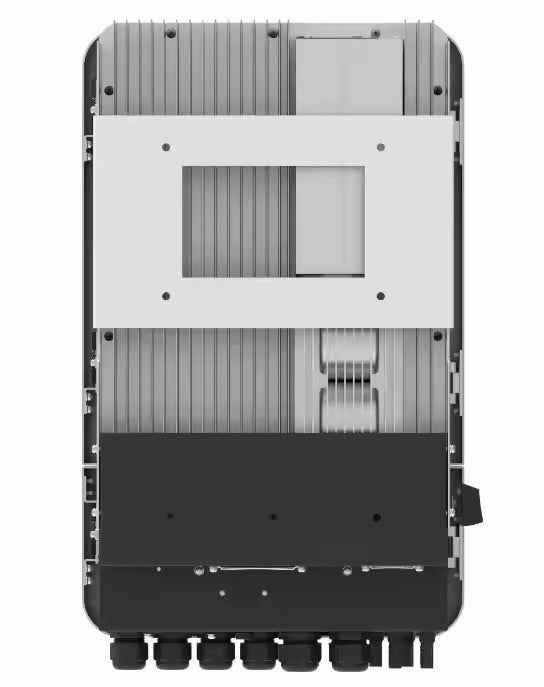

Sunsynk 8 kW 1-Phase Hybrid Inverter (LV) (2nd Gen)
Couldn't load pickup availability
🔌 Sunsynk 8kW 1-Phase Hybrid Inverter
Model: SYNK-ECO-8K-SG05LP1-SM2
Brand: Sunsynk
Type: Single-Phase Low-Voltage Hybrid Inverter
⚡ Key Features
- 8kW continuous single-phase output for residential and light commercial solar systems.
- Supports solar PV, battery storage, grid power, and generator integration in one intelligent hybrid solution.
- Dual MPPT design maximises solar energy production across multiple roof orientations.
- Compatible with 48V lithium-ion and lead-acid battery banks.
- Up to 190A maximum battery charge/discharge current for faster charging and higher backup capability.
- Supports parallel operation of up to 16 inverters for larger installations.
- Intelligent energy management with programmable operating modes, peak shaving, and time-of-use scheduling.
- Seamless UPS-grade changeover for uninterrupted backup power.
- IP65-rated enclosure suitable for indoor or outdoor installation.
- Built-in Wi-Fi monitoring with CAN, RS485, and RS232 communication interfaces.
- Compatible with CT coils for export limitation and zero-export applications.
📐 Technical Specifications
| Specification | Value |
|---|---|
| Model | SUNSYNK-8K-SG05LP1-EU |
| Rated AC Output Power | 8,000W |
| Max. AC Output Power | 8,800W |
| Battery Type | Lithium-ion / Lead-acid |
| Battery Voltage | 40–60V (48V Nominal) |
| Max. Charge Current | 190A |
| Max. Discharge Current | 190A |
| Number of Battery Inputs | 2 |
| Max. PV Input Power | 16,000W |
| Max. DC Input Voltage | 500V |
| Start-up Voltage | 125V |
| MPPT Voltage Range | 150–425V |
| Rated PV Input Voltage | 370V |
| Number of MPPTs | 2 |
| Strings per MPPT | 2 + 1 |
| Max. PV Input Current | 36A + 18A |
| Max. PV Short-Circuit Current | 54A + 27A |
| Rated Output Voltage | 220/230V Single Phase |
| Grid Frequency | 50/60Hz |
| Maximum Efficiency | 97.6% |
| MPPT Efficiency | >99% |
| Transfer Time | <10ms |
| Protection Rating | IP65 |
| Cooling | Intelligent Air Cooling |
| Communication | Wi-Fi, RS485, CAN, RS232 |
| Dimensions (W × H × D) | 420 × 670 × 233mm |
| Weight | Approximately 32kg |
| Operating Temperature | -40°C to +60°C (>45°C derating) |
| Max. Operating Altitude | 3,000m |
| Noise Level | <45dB |
| Warranty | 5 Years (extendable depending on installation and registration) |
🏷️ Quality & Support
The Sunsynk 8kW Hybrid Inverter is a powerful and flexible energy management solution designed for residential and small commercial solar systems. With dual MPPT technology, high battery charging capability, seamless backup switching, and support for up to 16 units in parallel, it delivers exceptional efficiency, reliable backup power, and scalable performance. Its IP65-rated enclosure, intelligent monitoring, and compatibility with a wide range of low-voltage battery systems make it an ideal choice for grid-tied, hybrid, and off-grid energy installations.
Sunsynk 8kW Inverter Spec Sheet
