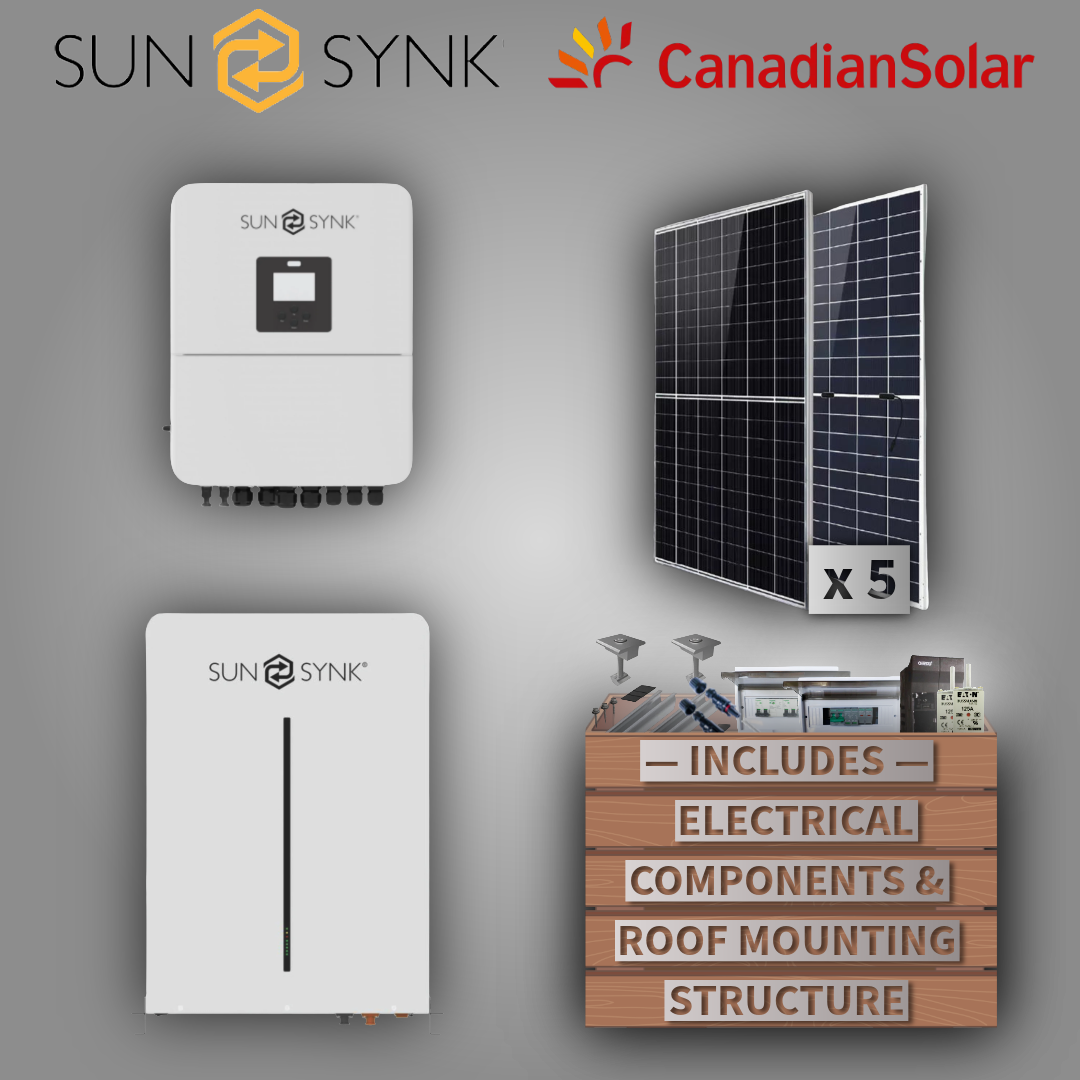

Sunsynk 5kW 1P Inverter + Sunsynk 5,12 kWh + 5 Canadian Solar Panels

Sunsynk 5kW 1P Inverter + Sunsynk 5,12 kWh + 5 Canadian Solar Panels

🆔 Models

Inverter: Sunsynk 5kW 1-Phase Hybrid Inverter (LV)
Battery: Sunsynk 5.12 kWh Lithium Iron Phosphate Battery — G Series (51.2V)
Panels: 5 × Canadian Solar Panels (high-efficiency monocrystalline)

Includes:

Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X5

5kW Inverter AC DB Kit Box X1

DC DB Kit Box (1 String) X1

160A Battery Fuse Disconnector X1

125A Battery Fuse X2

Mc4 Connector Set X2

🏷️ Brand

Sunsynk

🔌 Type

Hybrid Solar Inverter + Lithium Battery + Solar Panel Kit
Perfect for medium homes, backup systems, and solar energy optimisation.

⚡ Key Features

NB: 10 YEAR MANUFACTURER WARRANTY FOR SUNSYNK INVERTERS AND BATTERIES WHEN USED TOGETHER

🔆 Sunsynk 5kW 1P Hybrid Inverter

• 5kW continuous output — ideal for medium-sized households
• Dual MPPT for efficient solar power harvesting
• Ultra-fast switching (<10 ms) — excellent for loadshedding
• Supports Grid-Tie, Hybrid, Off-Grid & Zero-Export modes
• Programmable charging, smart load control & advanced scheduling
• Built-in Wi-Fi for Sunsynk Connect remote monitoring
• Supports generator integration
• Parallel-ready for larger systems

🔋 Sunsynk 5.12 kWh Battery — G Series

• 5.12 kWh total capacity (±4.8 kWh usable @ 95% DoD)
• Long-lasting LiFePO₄ chemistry for safety & durability
• Smart BMS with CAN/RS485 communication
• Compact, wall-mounted design ideal for residential spaces
• Supports high cycle life (6000+ cycles)
• Expandable — add multiple G Series batteries as needed

☀️ Canadian Solar Panels (5 Units)

• High-efficiency monocrystalline modules
• Excellent long-term power performance
• Suitable for rooftop or ground-mount systems


📐 Specifications

Inverter — Sunsynk 5kW 1P

SpecificationValueRated Power5 kWPhaseSingle-PhaseBattery Voltage48 V (LV)MPPT Trackers2Max PV Input± 6.5 kWMax PV Voltage~500 VMax Efficiency± 97.6%Switching Time< 10 msCommunicationCAN / RS485 / Wi-FiModesHybrid / Grid-Tie / Off-Grid / Zero-ExportParallel OperationSupportedOperating Temp–25 °C to +60 °C

Battery — Sunsynk 5.12 kWh G Series

SpecificationValueNominal Energy5.12 kWhUsable Energy± 4.8 kWhNominal Voltage51.2 VChemistryLiFePO₄Nominal Capacity100 AhCycle Life6000+ cyclesMax Charge/Discharge50–100 A (model dependent)Depth of Discharge95%CommunicationCAN / RS485Parallel CapabilityYesMountingWall-MountOperating Temp–20 °C to +55 °C

🏷️ Quality & Support

This Sunsynk power kit is a dependable and efficient solution for homes looking to reduce electricity costs and maintain backup power during loadshedding. The 5kW inverter offers strong daily performance, while the 5.12kWh G Series battery provides reliable storage and long cycle life. With 5 Canadian Solar panels included, this kit offers a balanced and scalable solar-ready energy solution.
