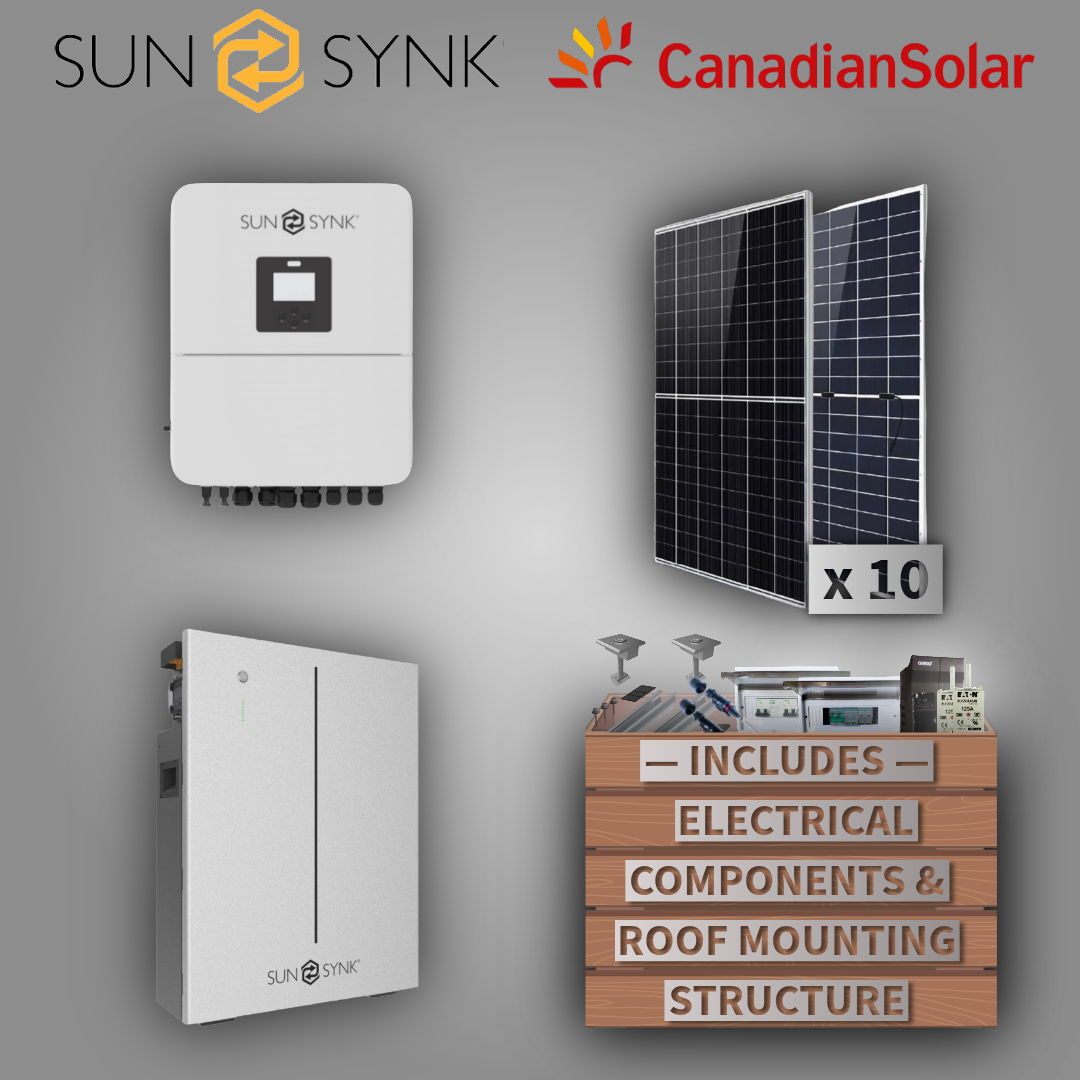

Sunsynk 5kW 1P Inverter + Sunsynk 10.24kWh + 10 Canadian Solar panels

Sunsynk 5kW 1P Inverter + Sunsynk 10.24kWh + 10 Canadian Solar panels

🆔 Models

Inverter: Sunsynk 5kW 1-Phase Hybrid Inverter (LV)
Battery: Sunsynk 10.24 kWh Lithium Iron Phosphate Battery — W Series (51.2V)
Panels: 10 × Canadian Solar Panels (high-efficiency monocrystalline)

Includes:

Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X10

5kW Inverter AC DB Kit Box X1

DC DB Kit Box (2 Strings) X1

250A Battery Fuse Disconnector X1

200A Battery Fuse X2

Mc4 Connector Set X4

🏷️ Brand

Sunsynk

🔌 Type

Hybrid Solar Inverter + Lithium Battery + Solar Panel Kit
Ideal for residential solar, backup systems, and energy-saving installations.

⚡ Key Features

NB: 10 YEAR MANUFACTURER WARRANTY FOR SUNSYNK INVERTERS AND BATTERIES WHEN USED TOGETHER

🔆 Sunsynk 5kW 1P Hybrid Inverter

• 5kW continuous power output — ideal for medium-sized homes
• Dual MPPT for efficient solar harvesting
• Ultra-fast switching (<10ms) for loadshedding protection
• Supports Grid-Tie, Hybrid, Off-Grid, and Zero-Export modes
• Smart load management and programmable charge schedules
• Built-in Wi-Fi for Sunsynk Connect remote monitoring
• Generator-ready and supports parallel installation
• Highly efficient and stable under daily operational loads

🔋 Sunsynk 10.24 kWh Battery — W Series

• True 10.24 kWh storage (≈ 9.7 kWh usable at 95% DoD)
• Premium LiFePO₄ chemistry — long life, stable, and safe
• Smart BMS with CAN/RS485 communication
• Wall-mounted or floor-standing modular design
• High discharge rate — perfectly matched to a 5kW inverter
• Long lifespan: 6000+ cycles
• Parallel-capable for future expansion

☀️ Canadian Solar Panels (10 Units)

• High-efficiency monocrystalline modules
• Excellent performance in low-light and high-heat conditions
• Durable and reliable for long-term rooftop or ground-mount use.


📐 Specifications

Inverter — Sunsynk 5kW 1P

SpecificationValueRated Power5 kWPhaseSingle-PhaseBattery Voltage48 V (LV)MPPT Trackers2Max PV Input± 6.5 kWMax PV Voltage~500 VMax Efficiency± 97.6%Switching Time< 10 msCommunicationCAN / RS485 / Wi-FiModesHybrid / Grid-Tie / Off-Grid / Zero-ExportParallel OperationSupportedOperating Temp–25 °C to +60 °C

Battery — Sunsynk 10.24 kWh W Series

SpecificationValueNominal Energy10.24 kWhUsable Energy± 9.7 kWhNominal Voltage51.2 VChemistryLiFePO₄Nominal Capacity200 AhCycle Life6000+ cyclesMax Charge/Discharge100 ADepth of Discharge95%CommunicationCAN / RS485Parallel CapabilityYesMountingWall/FloorOperating Temp–20 °C to +55 °C

🏷️ Quality & Support

This Sunsynk bundle offers a perfectly balanced residential power solution. The 5kW hybrid inverter delivers dependable performance for homes, while the 10.24kWh W Series battery ensures stable, long-lasting energy storage. Combined with 10 high-efficiency Canadian Solar panels, this kit provides strong solar generation, seamless backup, and long-term reliability.
