Sunsynk 80kWh 3P HV Hybrid Inverter
Couldn't load pickup availability

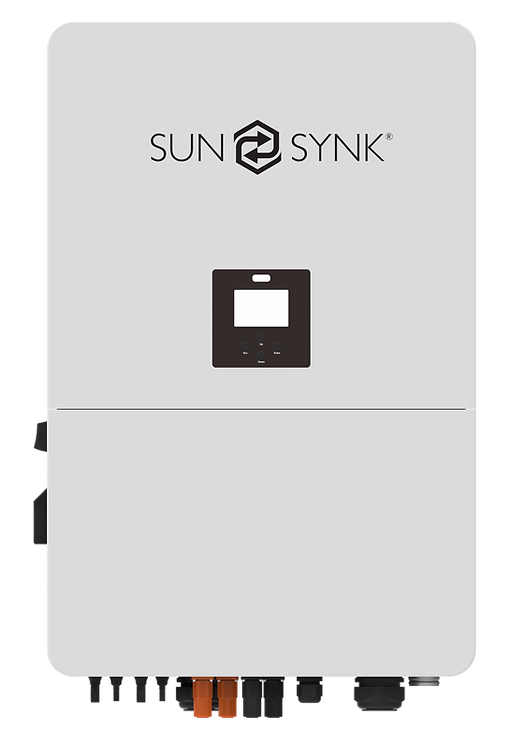

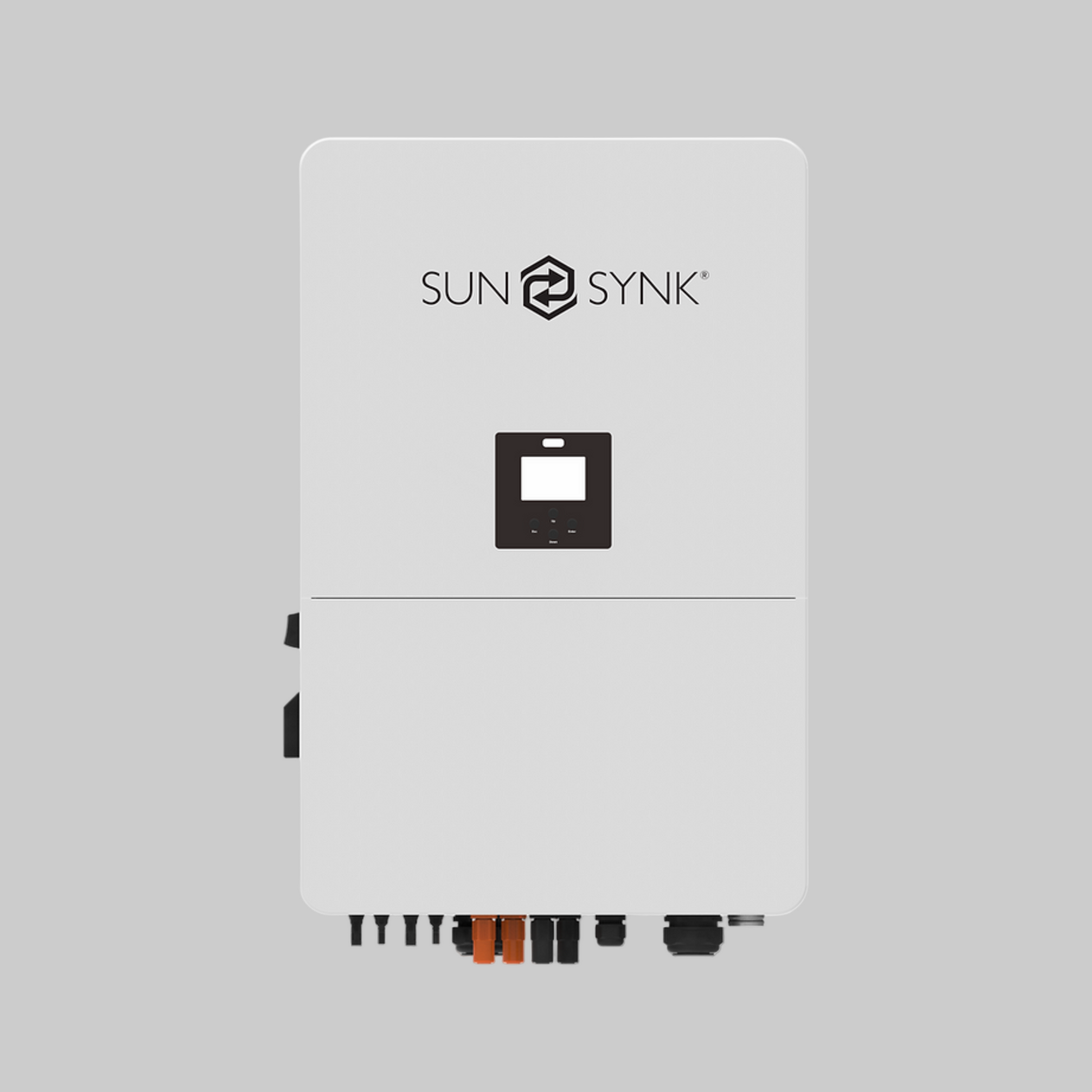

🔌 Sunsynk 80 kW 3-Phase High Voltage Hybrid Inverter
Model: SUNSYNK-80K-SG02HP3-HV
Brand: Sunsynk
Type: Three-Phase Hybrid Inverter (Solar + High-Voltage Battery + Grid Integration)
⚡ Key Features
-
80 kW rated 3-phase output — ideal for large commercial, industrial, or utility-scale installations requiring high-capacity, balanced power.
-
High-voltage hybrid operation — integrates solar PV, high-voltage battery storage, and grid supply for optimized energy management.
-
Dual MPPT tracking — maximizes energy harvesting from multiple PV arrays and orientations.
-
Wide battery voltage range — compatible with 160–1000 V high-voltage battery systems for flexible storage solutions.
-
Parallel-ready design — multiple units can be connected for scalable, high-power installations.
-
Advanced energy management — programmable modes for self-consumption, backup, peak-shaving, and grid support.
-
Comprehensive protection — over-voltage, over-current, short-circuit, and thermal protections included.
-
Durable IP65 enclosure — suitable for indoor or outdoor installation.
-
Smart monitoring — touchscreen display with Wi-Fi, RS485/CAN connectivity, and portal integration for real-time system management.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUNSYNK-80K-SG02HP3-HV |
| Rated AC Output Power | 80 kW |
| Max PV Input Power | ~100 kW |
| Max PV Input Voltage | ~1000 V |
| MPPT Voltage Range | 150 – 850 V |
| Number of MPPTs | 2 |
| Max PV Input Current | ~60 A per MPPT |
| Battery Voltage Range | 160 – 1000 V |
| Max Charge/Discharge Current | ~600 A |
| Max Efficiency | ~97.8 % |
| Protection Rating | IP65 |
| Communication Interfaces | RS485, CAN, Wi-Fi |
| Dimensions (W × H × D) | ~606 × 927 × 314 mm |
| Weight | ~300 kg |
| Warranty | Standard manufacturer warranty |
🏷️ Quality & Support
The Sunsynk 80 kW 3-Phase High Voltage Hybrid Inverter delivers robust, high-capacity energy management for industrial-scale and utility-level solar-plus-storage systems. With advanced MPPT tracking, wide high-voltage battery compatibility, and scalable parallel operation, it ensures maximum efficiency, reliable backup power, and long-term operational durability.
