Sunsynk 25kW 3P Hybrid Inverter (HV)
Couldn't load pickup availability

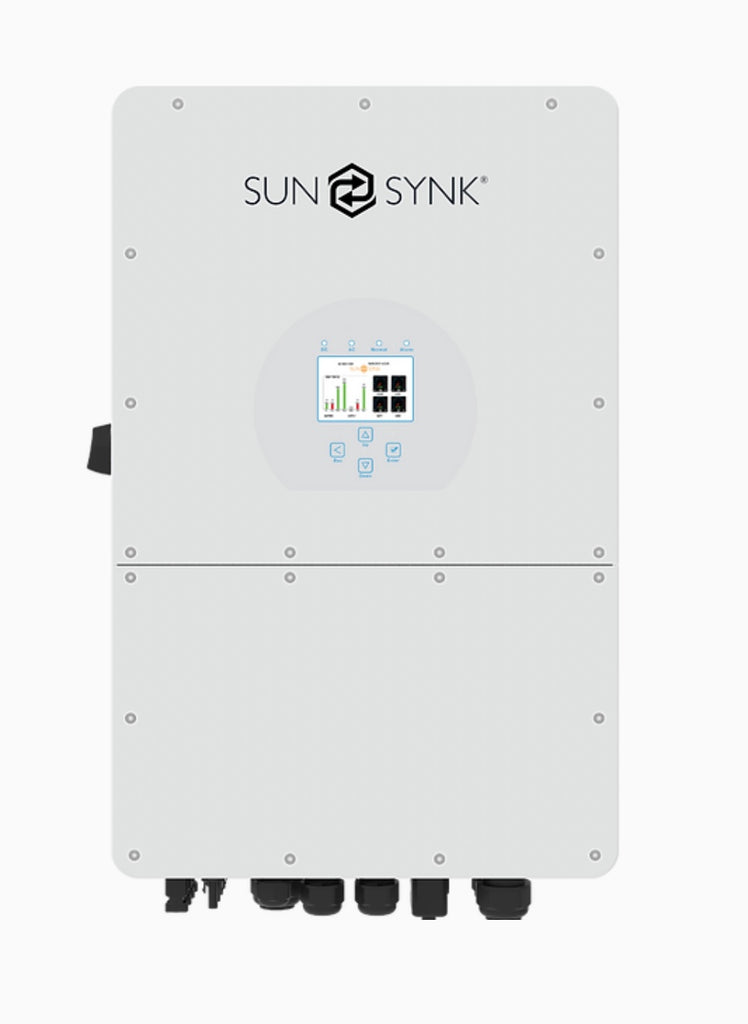

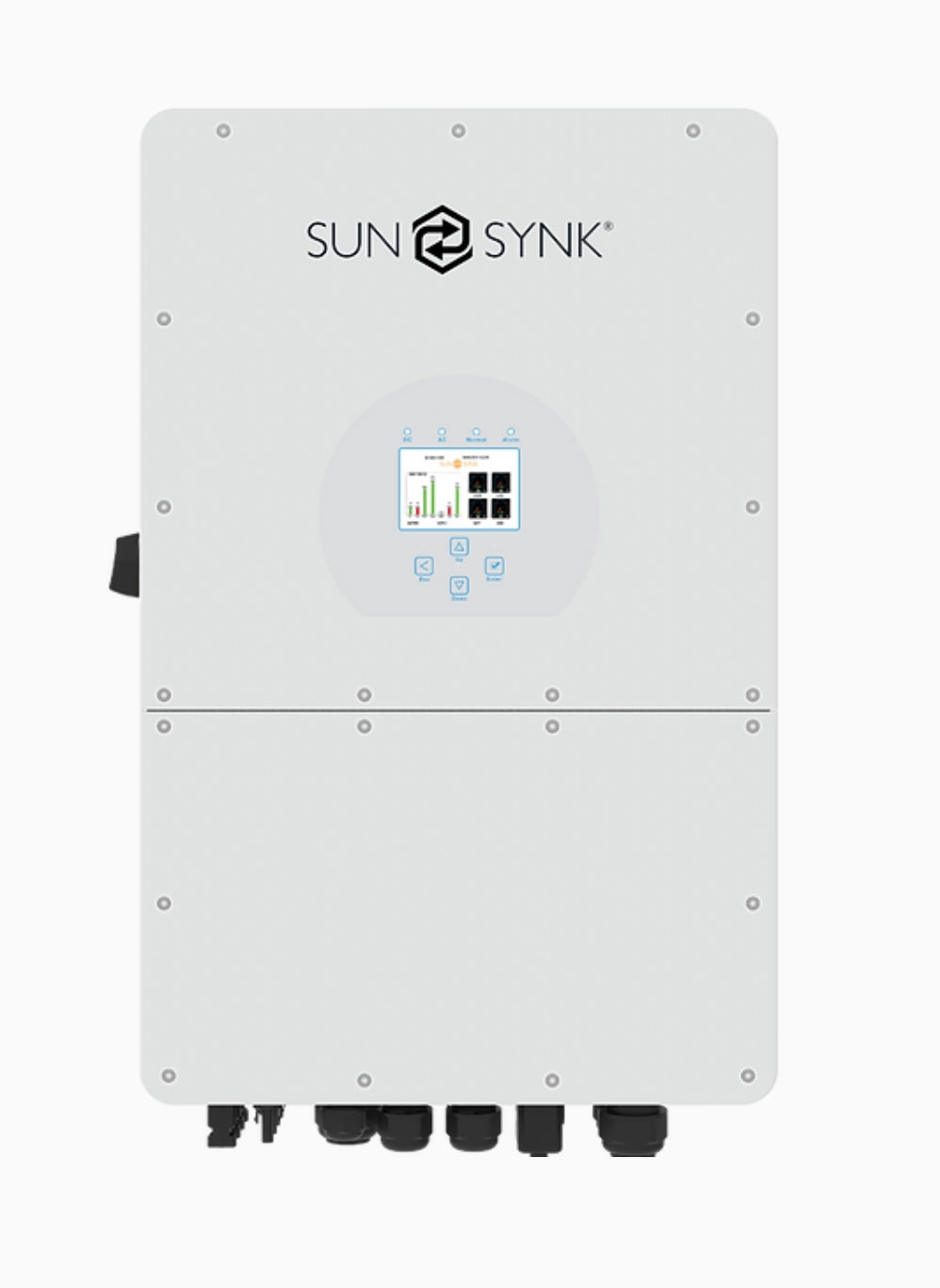

🔌 Sunsynk 25 kW 3-Phase High Voltage Hybrid Inverter
Model: SUNSYNK-25K-SG02HP3-HV
Brand: Sunsynk
Type: Three-Phase Hybrid Inverter (Solar + High-Voltage Battery + Grid Integration)
⚡ Key Features
-
25 kW rated 3-phase output — ideal for commercial or industrial installations requiring high-capacity, balanced 3-phase power.
-
High-voltage hybrid operation — integrates solar PV, high-voltage battery storage, and grid supply for seamless energy management.
-
High PV input capacity — supports up to ~32 kW DC input with dual MPPT tracking for optimized energy harvesting.
-
Wide battery voltage range — compatible with 160–1000 V high-voltage battery systems for efficient energy storage.
-
Parallel-ready design — multiple units can be connected for system scalability.
-
Smart energy management — programmable modes for self-use, backup, and peak-shaving operations.
-
Robust protection suite — safeguards against over-voltage, over-current, short-circuit, and temperature extremes.
-
Durable IP65-rated enclosure — suitable for indoor or outdoor environments.
-
Intelligent monitoring — full-color touchscreen, Wi-Fi connectivity, RS485/CAN communication, and portal integration.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUNSYNK-25K-SG02HP3-HV |
| Rated AC Output Power | 25 kW |
| Max PV Input Power | ~32 kW |
| Max PV Input Voltage | ~1000 V |
| MPPT Voltage Range | 150 – 850 V |
| Number of MPPTs | 2 |
| Max PV Input Current | ~26 A per MPPT |
| Battery Voltage Range | 160 – 1000 V |
| Max Charge/Discharge Current | ~200 A |
| Max Efficiency | ~97.8 % |
| Protection Rating | IP65 |
| Communication Interfaces | RS485, CAN, Wi-Fi |
| Dimensions (W × H × D) | ~606 × 927 × 314 mm |
| Weight | ~97.5 kg |
| Warranty | Standard manufacturer warranty |
🏷️ Quality & Support
The Sunsynk 25 kW 3-Phase High Voltage Hybrid Inverter provides high-capacity, reliable energy management for commercial and industrial applications. Its advanced MPPT tracking, high-voltage battery compatibility, and scalable parallel operation ensure optimized energy efficiency, robust backup capability, and long-term system reliability.
