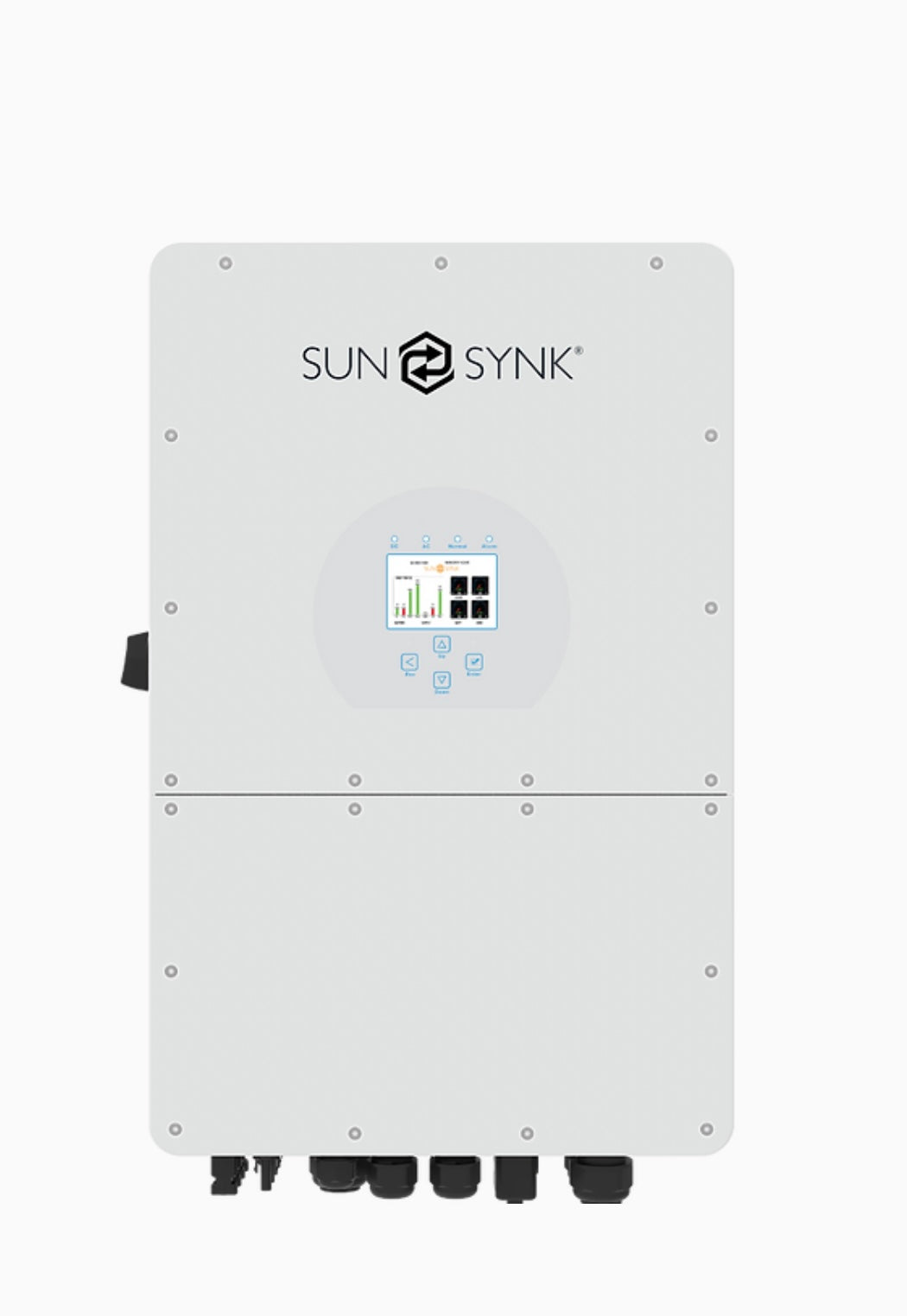

🔌 Sunsynk 30 kW 3-Phase Hybrid Inverter (High Voltage)
Brand: Sunsynk
Model: SUNSYNK-30K-SG02HP3-HV
Type: Three-Phase Hybrid Inverter (Solar + High-Voltage Battery + Grid)
⚡ Key Features
• 30 kW three-phase rated output — designed for large residential, commercial, and industrial solar systems
• High-voltage hybrid functionality — integrates solar PV generation, high-voltage battery storage, and grid interaction
• Wide battery voltage compatibility — supports 160 V – 1000 V HV battery systems for flexible storage integration
• Dual MPPT trackers — enables multiple PV string orientations and improved energy harvesting
• Large PV capacity support — accommodates high-power solar arrays for commercial installations
• Parallel capability — multiple units can be installed together for scalable system expansion
• Advanced energy management — programmable modes for self-consumption, peak-shaving, and backup operation
• Comprehensive protection system — includes over-voltage, over-current, short-circuit, and temperature protection
• Rugged IP65 enclosure — suitable for indoor or outdoor installations
• Smart monitoring and connectivity — touchscreen interface with Wi-Fi, RS485, and CAN communication
📐 Technical Specifications
| Specification | Value |
|---|---|
| Model | SUNSYNK-30K-SG02HP3-HV |
| Rated AC Output Power | 30 kW |
| Grid Type | Three-Phase |
| Max PV Input Power | ~38 kW |
| Max PV Input Voltage | ~1000 V DC |
| MPPT Voltage Range | 150 – 850 V |
| Number of MPPTs | 2 |
| Max PV Input Current | ~28 A per MPPT |
| Battery Voltage Range | 160 – 1000 V |
| Max Charge / Discharge Current | ~220 A |
| Maximum Efficiency | ~97.8% |
| Protection Rating | IP65 |
| Communication | RS485 / CAN / Wi-Fi |
| Display | LCD / Touchscreen |
| Dimensions (W × H × D) | ~606 × 927 × 314 mm |
| Weight | ~105 kg |
| Warranty | Standard manufacturer warranty |
🏷️ Quality & Support
The Sunsynk 30 kW Three-Phase High-Voltage Hybrid Inverter is engineered for demanding solar-plus-storage installations in commercial and industrial environments. With its wide HV battery compatibility, dual-MPPT design, and scalable architecture, it provides efficient solar generation, reliable backup capability, and intelligent energy management for large-scale power systems.
