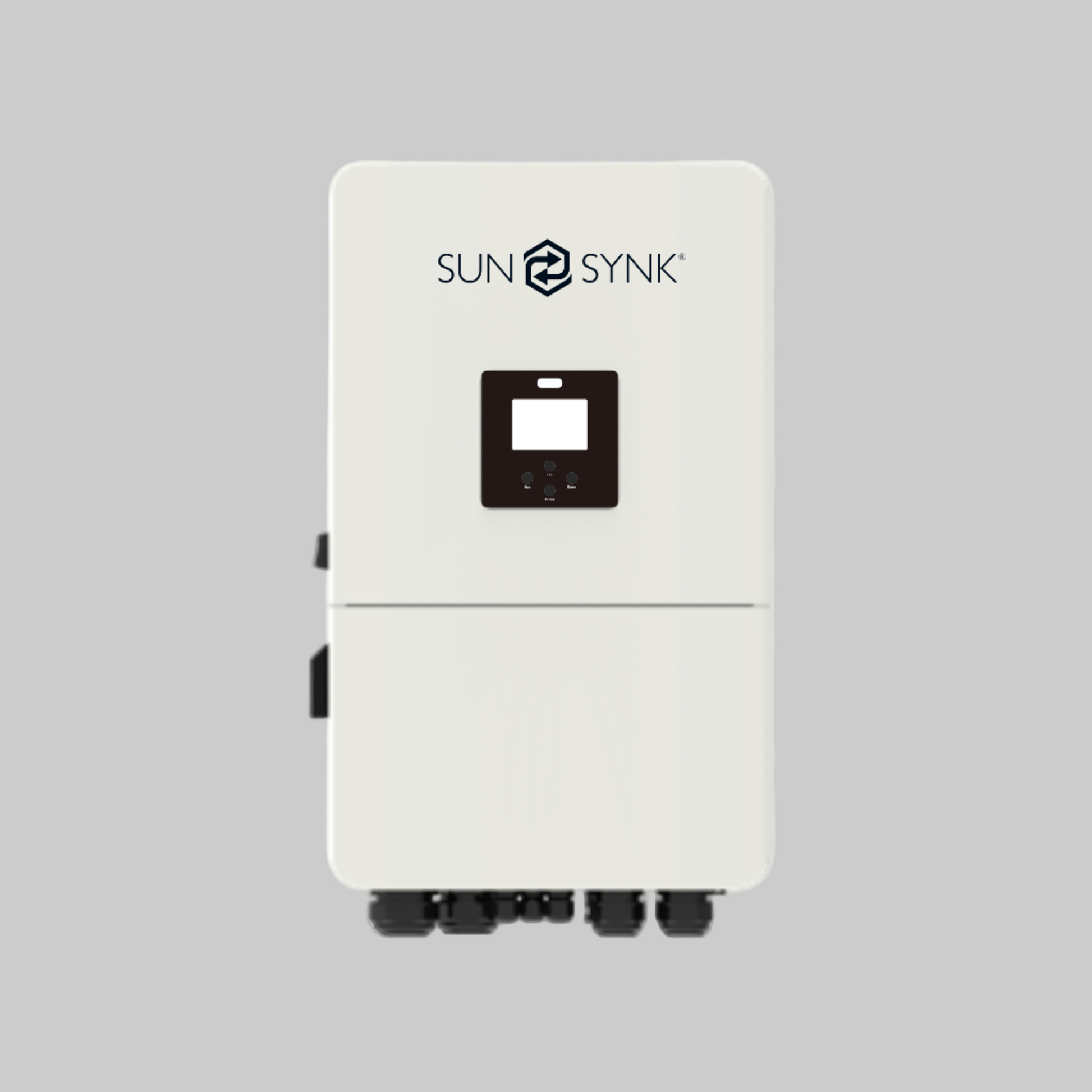

🔌 Sunsynk 20 kW 3-Phase Hybrid Inverter (SUN-20K-SG05LP3-EU-SM2)
Model: SUN-20K-SG05LP3-EU-SM2
Brand: Sunsynk
Type: Three-Phase Hybrid Inverter (Solar + Battery + Grid)
⚡ Key Features
-
20 kW rated AC output — ideal for large residential or light commercial PV + storage systems.
-
Hybrid integration — supports solar generation, battery storage (low-voltage 40–60 V) and grid/off-grid operation.
-
Supports up to 10 units in parallel for expanded system capacity.
-
Max. charging/discharging current ~350 A for rapid battery cycles and large system flexibility.
-
Dual MPPT inputs, wide operating range (-40 °C to +60 °C) and rugged outdoor IP65 build.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUN-20K-SG05LP3-EU-SM2 |
| Rated AC Output Power | 20 kW |
| Number of Phases | 3 (Three-Phase) |
| Battery Voltage Range | 40–60 V dc |
| Max Charging/Discharging Current | ~350 A |
| MPPT Trackers | 2 |
| Max PV Input Voltage | Up to ~800 V dc |
| Max Efficiency | ~97.6% |
| Protection Rating | IP65 |
| Operating Temperature | -40 °C to +60 °C |
| Warranty | Model-dependent (typically 5–10 years) |
🏷️ Quality & Support
Sunsynk’s three-phase hybrid inverter line offers high output, smart battery and grid integration, and scalable design — all backed by local service and installation networks for reliability and long-term performance.
