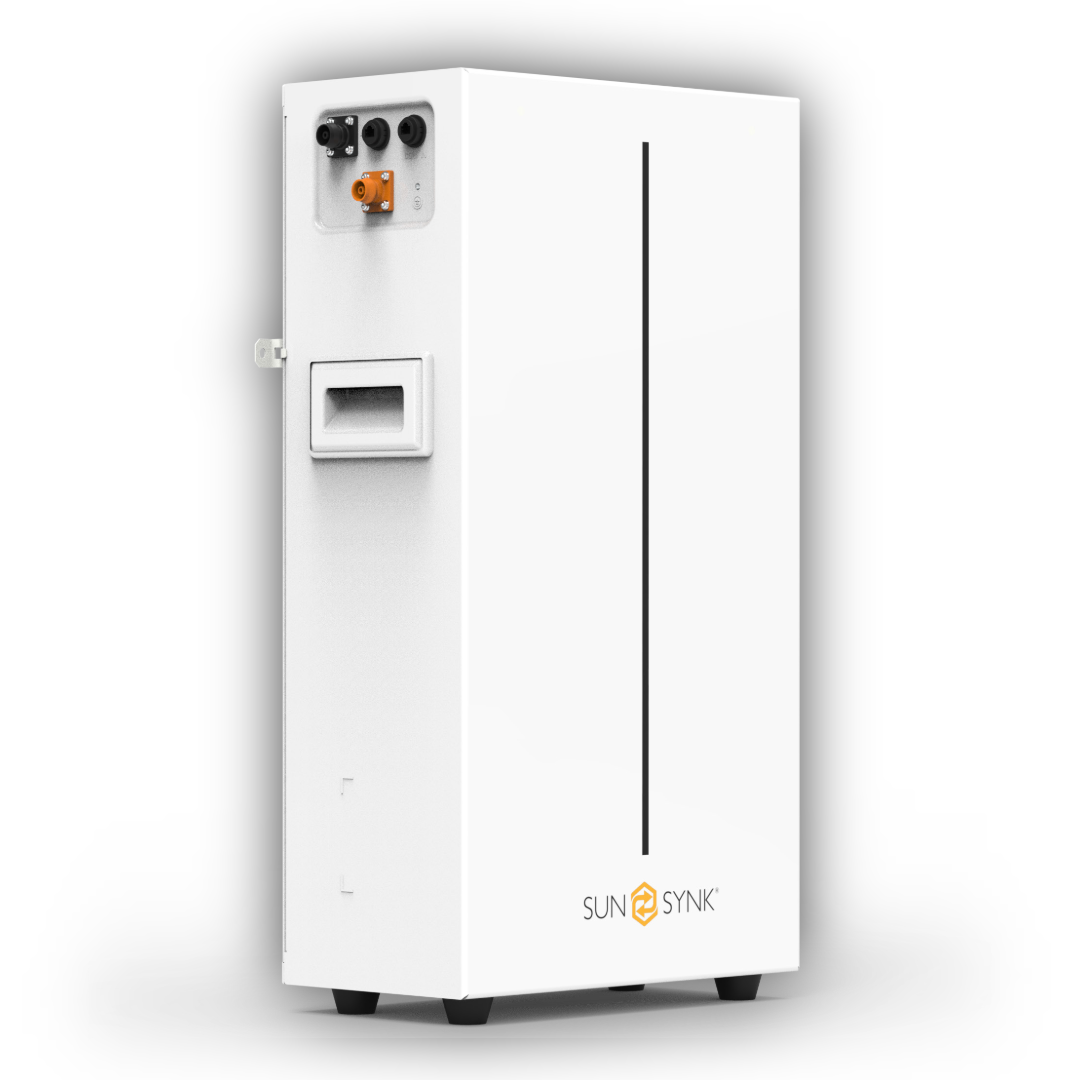

Sunsynk 16.07kWh Battery LV IP65
Couldn't load pickup availability
Sunsynk 16.07kWh Battery LV IP65
Model: SS-BATT-SX-16.07kWh-LV-IP65
Brand: Sunsynk
Type: Low-Voltage Lithium Iron Phosphate (LiFePO₄) Battery — IP65 Floor-Mounted Energy Storage System
Key Features
- 16.07 kWh high-capacity energy storage solution — ideal for residential, commercial, and backup power applications.
- Advanced LiFePO₄ battery chemistry — provides improved thermal stability, safety, and long operational lifespan.
- IP65-rated enclosure — suitable for indoor and protected outdoor installations.
- High current capability — supports up to 157 A charge/discharge current for demanding hybrid inverter systems.
- Scalable energy storage platform — supports parallel expansion of up to 8 battery units.
- Smart BMS integration — advanced battery management system protects against overcharge, over-discharge, overcurrent, and temperature abnormalities.
- CAN and RS485 communication compatibility — seamless integration with Sunsynk and compatible hybrid inverters.
- Wide operating temperature range — designed for harsh environmental conditions and backup applications.
- Long cycle lifespan — rated for more than 6000 cycles at 90% depth of discharge.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SS-BATT-SX-16.07kWh-LV-IP65 |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Cell Configuration | LFP 1P16S |
| Total Energy Capacity | 16.07 kWh |
| Nominal Voltage | 51.2 V |
| Operating Voltage Range | 43.2 – 57.6 V |
| Charging Voltage | 55.2 V |
| Max Charge/Discharge Current | 157 A |
| Communication | RS485 / CAN |
| Cycle Life | >6000 cycles |
| Recommended Depth of Discharge | 90% |
| Scalability | Recommended up to 8 batteries |
| Protection Rating | IP65 |
| Protection Class | Class I |
| Dimensions (W × D × H) | 425 × 233 × 790 mm |
| Weight | 112 kg ±2 kg |
| Operating Temperature | Charge: 0°C to 55°C / Discharge: −20°C to 55°C |
| Storage Temperature | 0°C to 40°C |
| Working Humidity | ≤95% RH (Non-Condensing) |
| Maximum Operating Altitude | ≤2000 m |
Safety & Protection
The Sunsynk 16.07kWh LV IP65 battery is engineered with advanced safety systems and robust environmental protection for reliable long-term operation.
- Integrated Smart BMS protection
- Overcharge and over-discharge protection
- Overcurrent and short-circuit protection
- Temperature monitoring and thermal protection
- IP65 dust and water resistance
- Stable LiFePO₄ chemistry for enhanced safety
- Non-condensing humidity protection
Installation & Scalability
The modular low-voltage platform allows the battery system to scale for larger residential or commercial backup systems.
- Parallel expansion support for up to 8 batteries
- Compatible with hybrid and off-grid inverter systems
- Suitable for indoor utility rooms or protected outdoor installations
- Compact vertical design for efficient space utilisation
Quality & Support
The Sunsynk 16.07kWh LV IP65 battery is designed for high-capacity energy storage applications requiring strong performance, environmental durability, and long-term reliability. With advanced LiFePO₄ technology, IP65 protection, scalable expansion capability, and intelligent battery management, it delivers dependable backup and solar energy storage for demanding residential and commercial systems.
