Sunsynk 16kWh 1P LV Hybrid Inverter
Couldn't load pickup availability

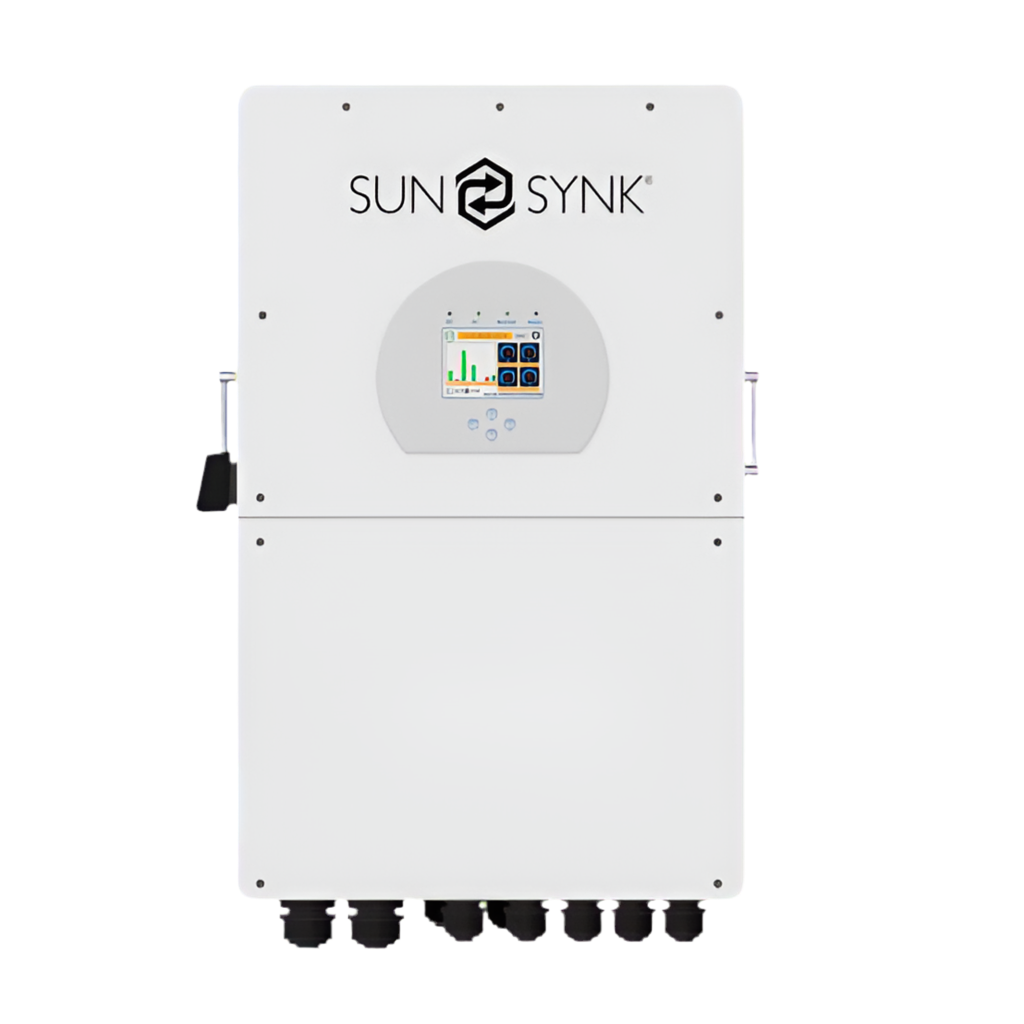

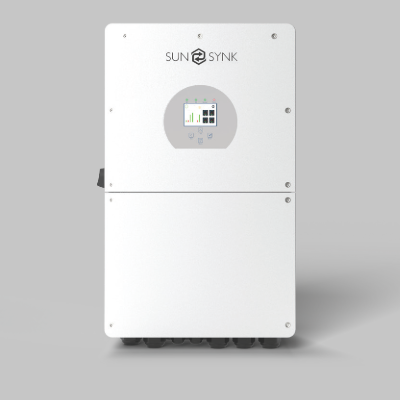

🔌 Sunsynk 16 kW 1-Phase Hybrid Inverter
Model: SUNSYNK-16K-SG04LP1
Brand: Sunsynk
Type: Single-Phase Hybrid Inverter (Solar + Battery + Grid Integration)
⚡ Key Features
-
16 kW rated AC output — suitable for large residential or small commercial installations requiring high single-phase power.
-
Full hybrid functionality — integrates solar PV, battery storage, and grid supply for seamless energy management and backup.
-
Dual MPPT inputs — optimize energy yield from multiple PV string orientations.
-
High battery current support — up to 240 A charge/discharge for fast and efficient storage cycling.
-
Parallel operation ready — supports connection of up to 16 inverters for scalable systems.
-
Advanced energy management — programmable modes for self-use, peak shaving, and backup operation.
-
Durable design — IP65-rated enclosure for indoor or outdoor mounting.
-
Smart monitoring — built-in touchscreen display with Wi-Fi connectivity and portal integration.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUNSYNK-16K-SG04LP1 |
| Rated AC Output Power | 16 kW |
| Max PV Input Power | ~20 kW |
| Max PV Input Voltage | 500 V |
| MPPT Voltage Range | 125 – 425 V |
| Number of MPPTs | 2 |
| Max PV Input Current | 18 A per MPPT |
| Battery Voltage Range | 40 – 60 V (48 V nominal) |
| Max Charge/Discharge Current | Up to 240 A |
| Max Efficiency | ~97.6 % |
| Protection Rating | IP65 |
| Communication Interfaces | RS485, CAN, Wi-Fi |
| Dimensions (W × H × D) | ~460 × 515 × 190 mm |
| Weight | ~28 kg |
| Warranty | Standard manufacturer warranty |
🏷️ Quality & Support
The Sunsynk 16 kW 1-Phase Hybrid Inverter provides high-capacity, reliable energy for large residential or small commercial applications. With intelligent MPPT tracking, robust battery support, and full hybrid functionality, it ensures efficient self-consumption, backup power, and system scalability — all in a durable, weatherproof design.
