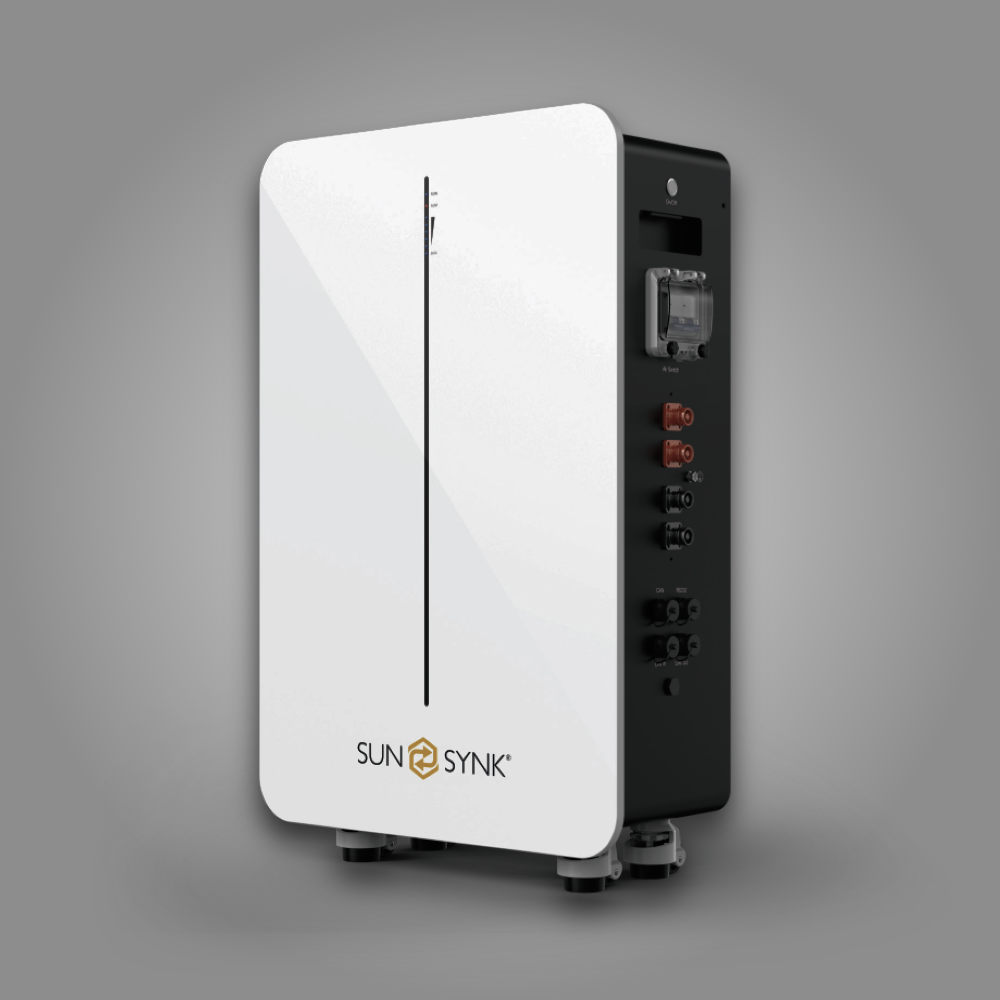

🔋 Sunsynk 16.07kWh R Series Battery LV
Brand: Sunsynk
Model: SUN-BATT-16.07-R-00
Type: Low-Voltage LiFePO₄ Battery Energy Storage System
Application: Residential & Commercial Solar, Backup & Off-Grid Energy Storage
⚡ Key Features
-
16.07kWh energy capacity provides extended backup power for larger residential and commercial systems.
-
High-capacity 314Ah LiFePO₄ battery cells deliver outstanding performance, safety, and long service life.
-
51.2V low-voltage design offers seamless compatibility with leading hybrid inverter brands.
-
Up to 200A charge and discharge current supports high-power loads and rapid battery charging.
-
IP65-rated enclosure suitable for both indoor and outdoor installations.
-
Supports up to 15 batteries in parallel for scalable energy storage solutions.
-
Integrated BMS protects against overcharge, over-discharge, over-current, temperature, and short circuits.
-
Multiple communication options including CAN, RS485, RS232 and built-in Wi-Fi.
-
Floor-standing design simplifies installation and maintenance.
-
Long-life LiFePO₄ chemistry delivers over 6,000 cycles at 80% Depth of Discharge.
-
Compatible with On-Grid, Hybrid Backup, and Off-Grid solar systems.
-
Backed by Sunsynk's manufacturer warranty.
📐 Technical Specifications
| Specification | Value |
|---|---|
| Model | SUN-BATT-16.07-R-00 |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V DC |
| Nominal Capacity | 314Ah |
| Battery Energy | 16.076kWh |
| Operating Voltage Range | 44.8V – 56.16V |
| Nominal Charge / Discharge Current | 157A |
| Maximum Charge / Discharge Current | 200A |
| Cycle Life | ≥6,000 Cycles @ 80% DoD |
| Scalability | Up to 15 Batteries in Parallel |
| Protection Rating | IP65 |
| Communication | CAN / RS485 / RS232 / Wi-Fi |
| Display | SOC Status Indicator & LED Indicators |
| Operating Temperature (Charge) | 0°C to 55°C |
| Operating Temperature (Discharge) | -20°C to 55°C |
| Humidity | ≤95% RH (Non-condensing) |
| Installation | Floor Standing |
| Dimensions (W × D × H) | 530 × 245 × 847 mm |
| Weight | 120 kg |
🏡 Benefits
-
Delivers reliable long-duration backup for homes, businesses, and off-grid installations.
-
High 200A output supports demanding appliances and high-power hybrid inverter systems.
-
Expandable parallel configuration allows storage capacity to grow as energy requirements increase.
-
Weather-resistant IP65 enclosure enables flexible indoor or outdoor installation.
-
Intelligent battery management maximizes battery lifespan while ensuring safe operation.
-
Built-in Wi-Fi and multiple communication protocols simplify remote monitoring and inverter integration.
-
Ideal for solar self-consumption, backup power, peak shaving, and energy independence.
🏷️ Applications
-
Residential solar battery storage
-
Commercial backup power systems
-
Hybrid solar installations
-
Off-grid power systems
-
Load-shedding and emergency backup
-
Peak demand management
🏷️ Quality & Support
The Sunsynk 16.07kWh R Series Battery combines high-capacity LiFePO₄ technology with intelligent battery management, robust IP65 protection, and excellent scalability. Designed for modern residential and commercial energy storage systems, it delivers dependable performance, long cycle life, and seamless compatibility with Sunsynk and other leading hybrid inverter brands, making it an ideal solution for reliable long-term energy storage.
