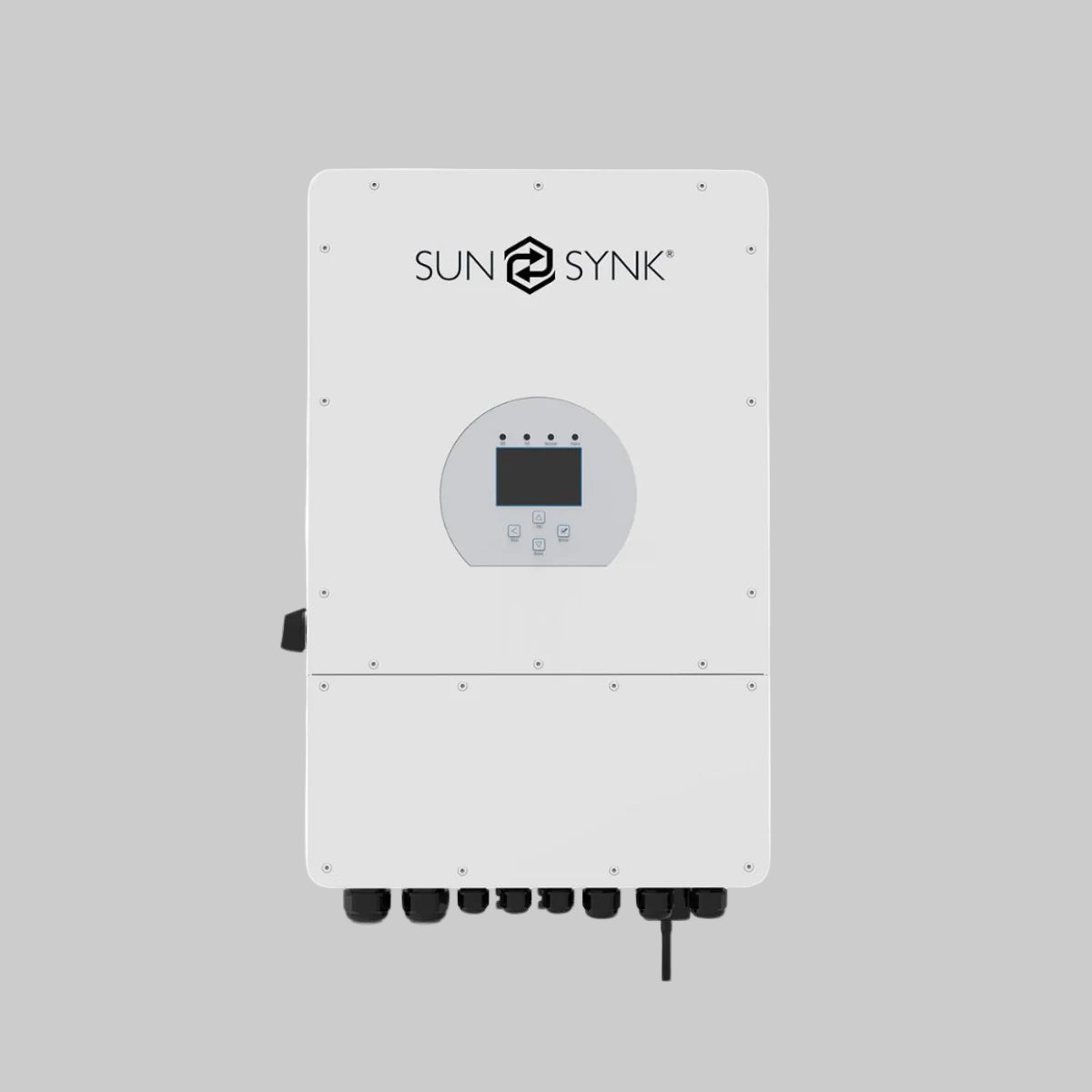

Sunsynk 12kW 3P Hybrid Inverter (LV)
Couldn't load pickup availability
🔌 Sunsynk 12 kW 3-Phase Hybrid Inverter
Model: SUNSYNK-12K-SG01HP3-EU
Brand: Sunsynk
Type: Three-Phase Hybrid Inverter (Solar + Battery + Grid Integration)
⚡ Key Features
-
12 kW rated 3-phase output — engineered for medium-to-large residential and commercial energy systems requiring balanced 3-phase power.
-
Advanced hybrid technology — integrates solar PV, battery storage, and grid supply for seamless, high-efficiency energy control.
-
High PV input capacity — supports up to 18 kW solar input with triple MPPT tracking for optimal energy harvesting from multiple array orientations.
-
Wide battery compatibility — supports 48 V lithium or lead-acid batteries with up to 240 A charge/discharge capability.
-
Parallel-ready architecture — allows connection of up to 16 units for scalable system expansion.
-
Smart management modes — programmable settings for self-consumption, time-of-use, and backup operation.
-
Comprehensive protection — safeguards include over-voltage, over-current, short-circuit, and temperature protection.
-
Weatherproof IP65 enclosure — robust design suitable for indoor or outdoor mounting.
-
Intelligent monitoring — built-in LCD touchscreen, RS485/CAN communication, and Sunsynk data portal via Wi-Fi or LAN.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUNSYNK-12K-SG01HP3-EU |
| Rated AC Output Power | 12 kW |
| Max PV Input Power | ~18 kW |
| Max PV Input Voltage | 1 000 V |
| MPPT Voltage Range | 180 – 850 V |
| Number of MPPTs | 3 |
| Max PV Input Current | 26 A per MPPT |
| Battery Voltage Range | 40 – 60 V (48 V nominal) |
| Max Charge/Discharge Current | Up to 240 A |
| Max Efficiency | ~97.8 % |
| Protection Rating | IP65 |
| Communication Interfaces | RS485, CAN, Wi-Fi / LAN |
| Dimensions (W × H × D) | ~555 × 450 × 220 mm |
| Weight | ~32 kg |
| Warranty | Standard manufacturer warranty |
🏷️ Quality & Support
The Sunsynk 12 kW 3-Phase Hybrid Inverter delivers robust, high-capacity performance for advanced residential and commercial solar-plus-storage systems. Its precision power balancing, triple MPPT architecture, and intelligent control make it ideal for energy-independent applications requiring stable three-phase output. Engineered for durability and backed by Sunsynk’s trusted technical support, it’s a long-term energy solution built for performance and scalability.
