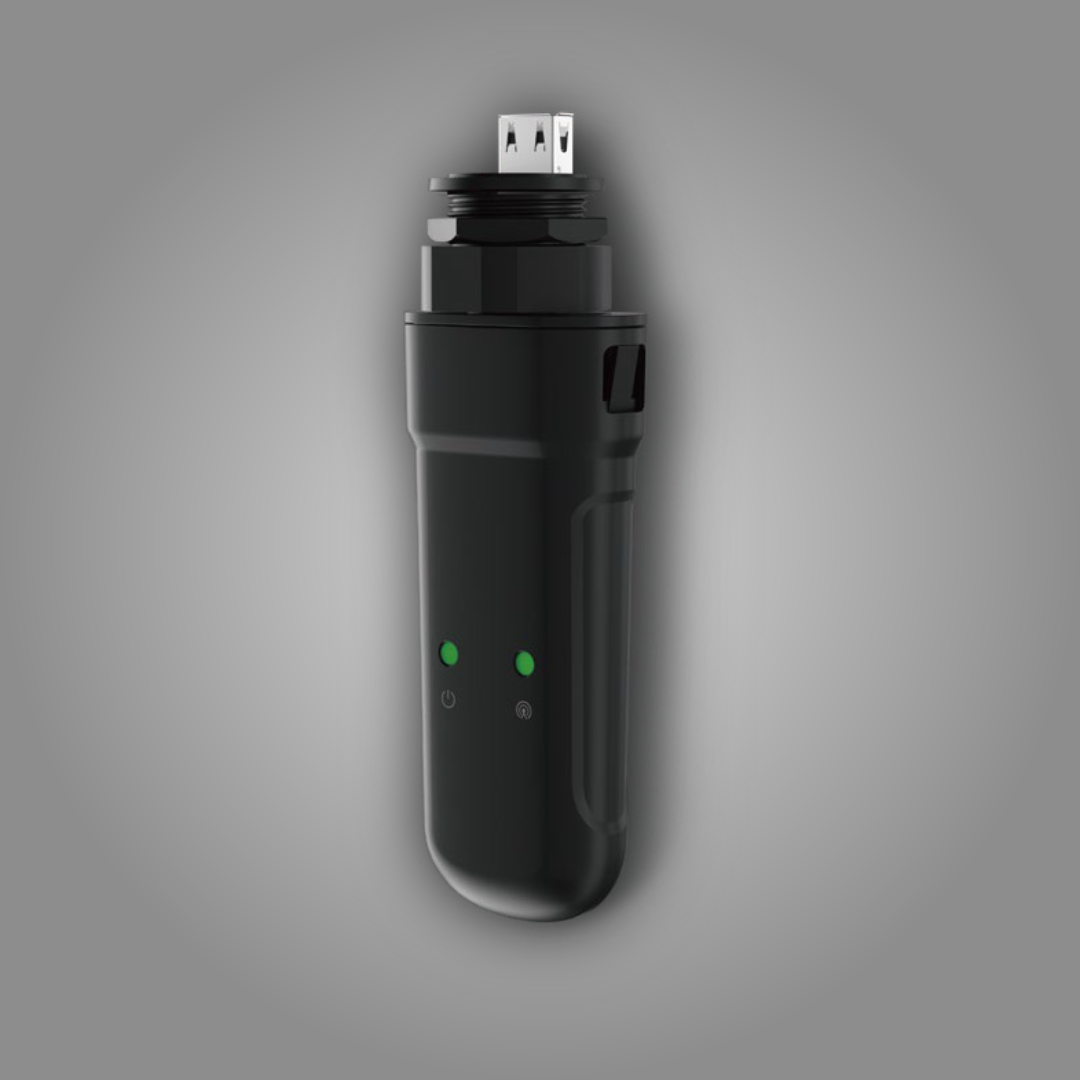

Sigen Communication Module
Couldn't load pickup availability
š SigenStack Communication Module (Global)
Brand: SigenStack / Sigen
Type: Inverter-Battery Communication / BMS Interface Module
Purpose: Provides communication link between battery modules, hybrid inverters/PCS, and monitoring/management systems
āļø Key Features
-
Supports standard communication protocols: RS-485 and CAN ā compatible with most modern hybrid inverters and lithium-ion battery BMS systems.
-
Universal / global compatibility ā designed to work across many inverter/battery brands, ideal for mixed systems or multi-brand setups.
-
Real-time data exchange ā battery voltage/current/SoC, inverter status, charge/discharge commands, and fault signals.
-
Automated battery management support ā enables safe charge/discharge cycles, prevents over-charge/over-discharge, ensures cell balancing.
-
Remote monitoring & control ready ā integrates with inverter/cloud dashboards or local monitoring systems.
-
Compact DIN-rail or rack mountable design ā easy to install in inverter or battery cabinet, minimal footprint.
-
Expandable & scalable ā can support multiple battery modules or multiple inverters in larger systems.
-
Failsafe protections ā protects against communication errors, ensures safe operation during faults or disconnection.
š Specifications (Typical / Reference Design)
| Specification | Description / Value |
|---|---|
| Protocols Supported | RS-485, CAN (Selectable / Auto-detect) |
| Connection Interface | RJ45, Screw-terminals or standard BMS-type connector |
| Communication Baud Rate | 2400 / 4800 / 9600 / 19200 bps (Configurable) |
| Supply Voltage | 5 V ā 12 V DC (powered from inverter / BMS bus) |
| Operating Temperature Range | ā20 Ā°C to +60 Ā°C |
| Mounting | DIN-rail / Rack-mount / Wall-mount compatible |
| Max Number of Modules Managed | 1 inverter ā multiple battery modules (depends on system size) |
| Monitoring Output | Digital communication (no analog signals) |
| Protection Features | Over-current, short-circuit, communication failure detection, galvanic isolation (optional) |
š” Use Cases / Ideal Applications
-
Hybrid solar + storage setups requiring inverter-battery communication
-
Mixed-brand installations (e.g. solar array from one brand, battery from another) needing a universal communication bridge
-
Backup power systems, off-grid installations, or grid-tied hybrid systems
-
Commercial, residential, or industrial energy storage systems needing reliable BMS-inverter data exchange
-
Retrofit projects where existing battery/inverter systems need a universal communication interface
š ļø Installation & Integration Notes
-
Connect module between battery BMS port and inverter communication bus (RS-485 or CAN)
-
Use correct protocol settings (baud rate, parity, address) as required by inverter and battery BMS
-
Ensure proper wiring and isolation ā twisted pair for RS-485 / CAN lines, correct termination at ends
-
Enable monitoring & control via inverter software or external monitoring platform for real-time data (SoC, charge/discharge status, fault alerts)
