Shotto sdc10-box5 5.12kwh
Couldn't load pickup availability

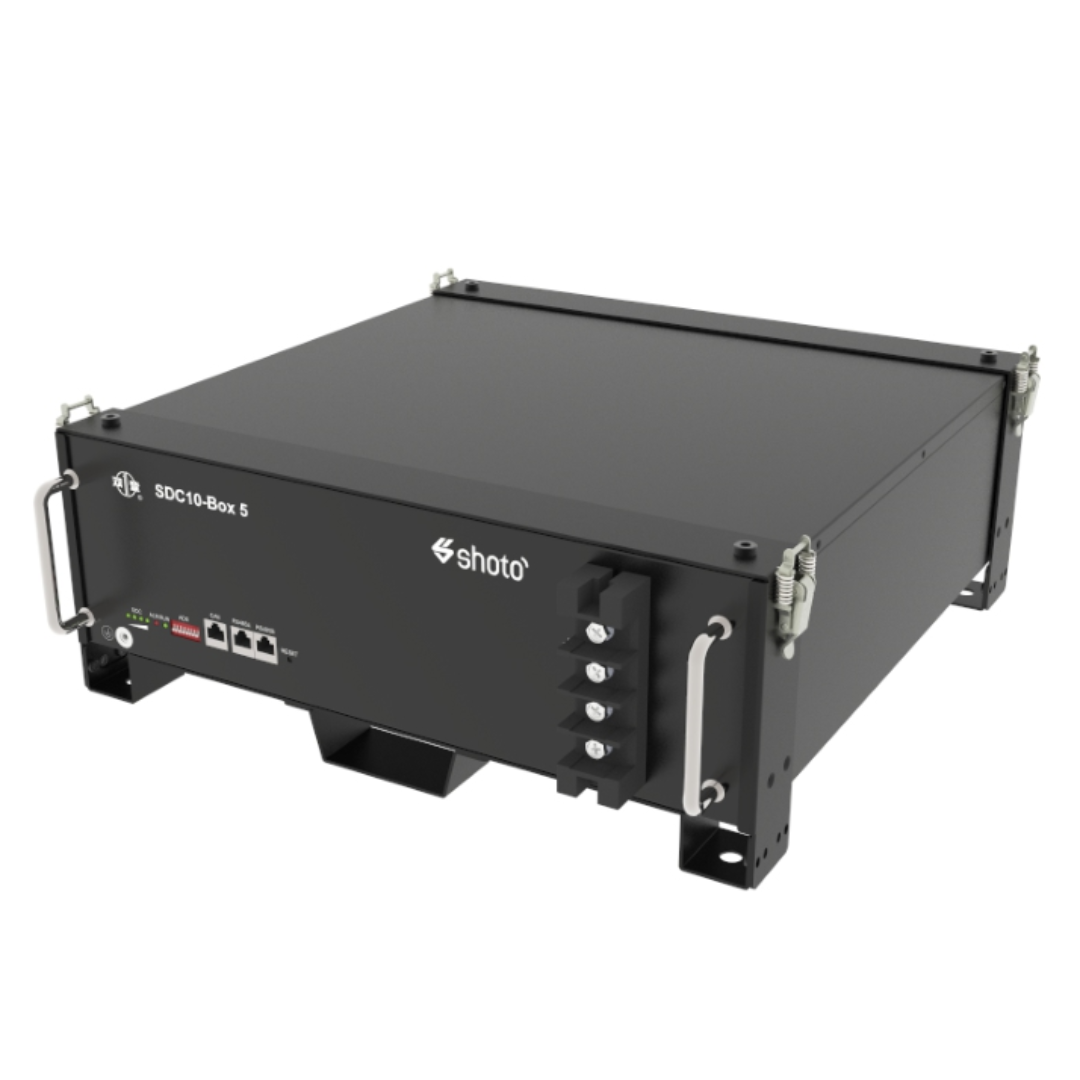

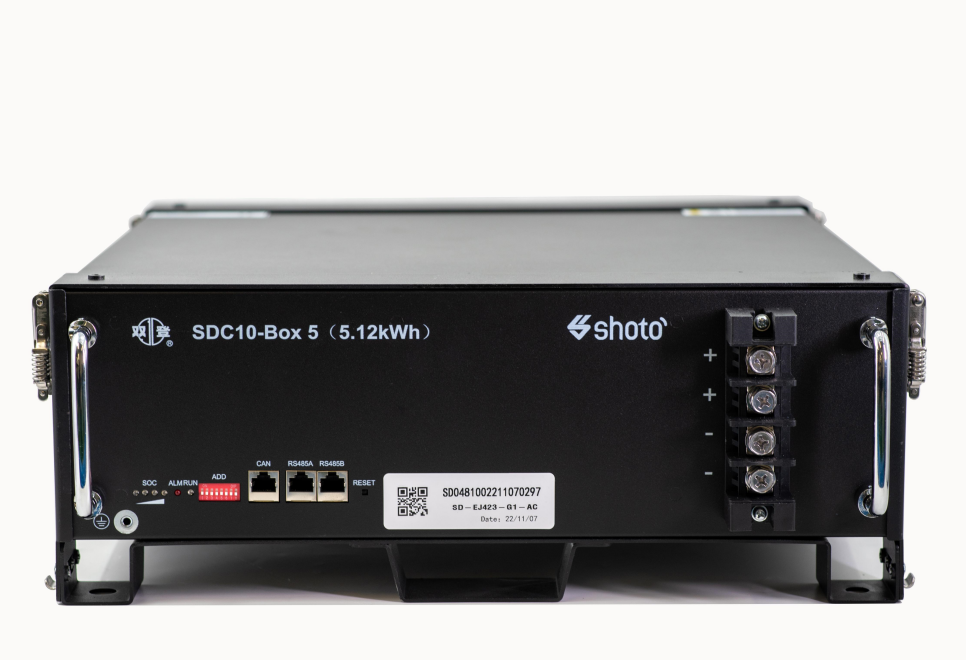

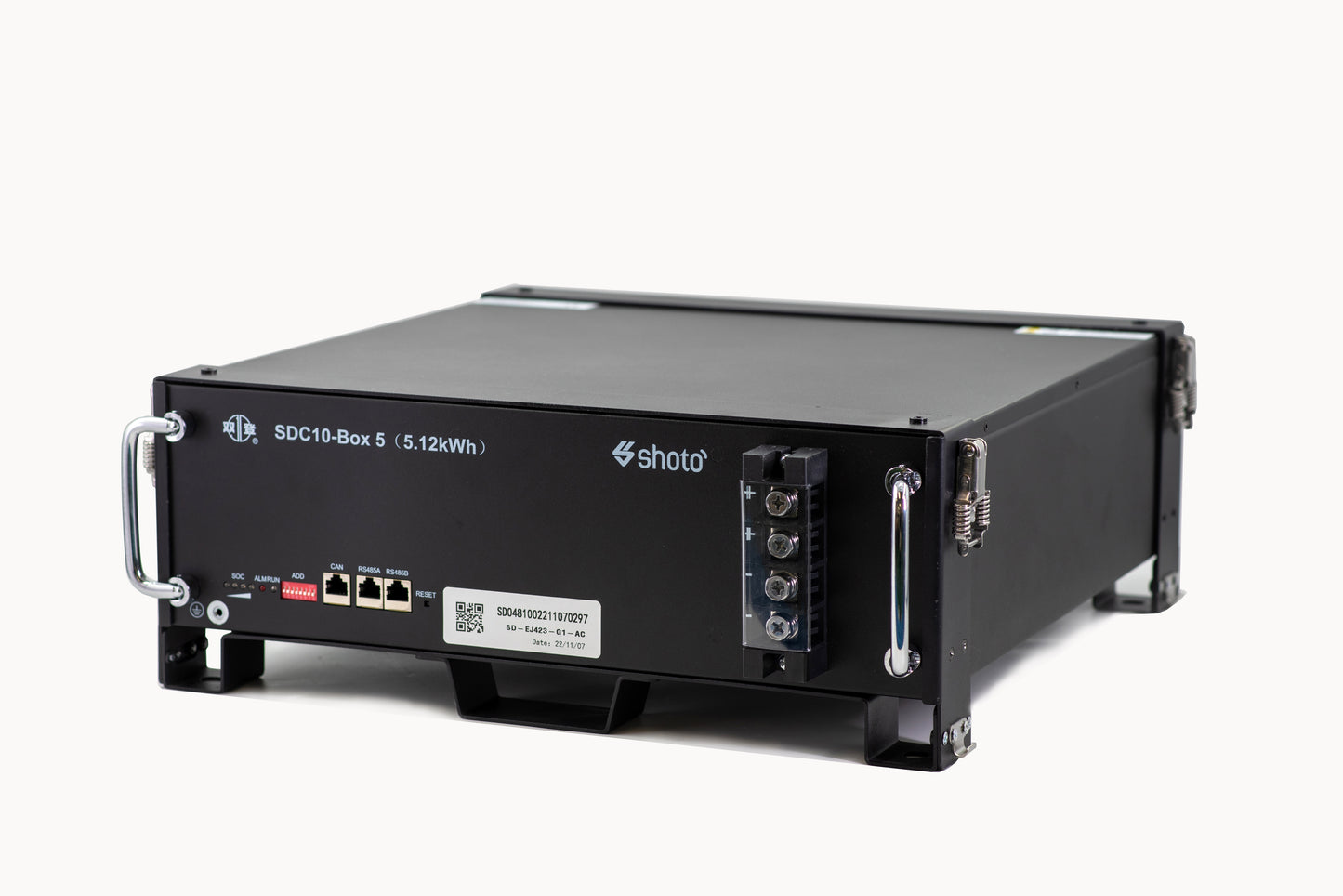

Shoto SDC10-Box5 — 5.12 kWh Lithium Solar Battery (51.2 V)
Product Type: Lithium Iron Phosphate (LiFePO₄) Battery
Brand: Shoto
Model: SDC10-Box5
Application: Home & light-commercial solar storage systems
🔋 Key Features
-
5.12 kWh energy capacity — ideal for residential backup or hybrid solar installations.
-
High-safety LiFePO₄ chemistry — stable performance with excellent thermal protection.
-

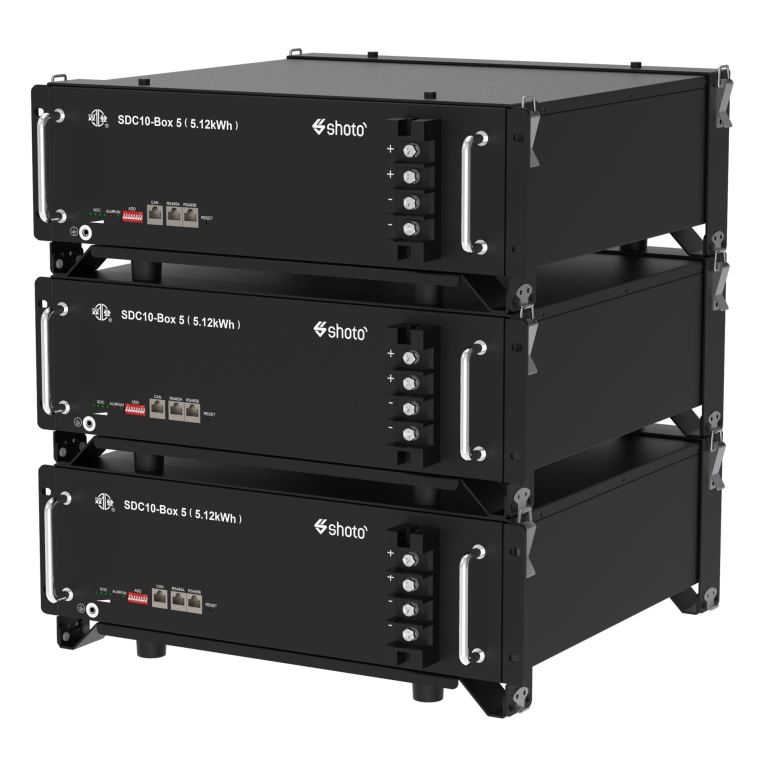

Modular expansion — multiple units can be paralleled to meet higher energy demands.
-
Long cycle life — engineered for heavy daily cycling applications.
-
Smart BMS system — provides real-time protection against over-voltage, deep discharge, over-current & temperature faults.
-
Compact 19-inch rack-mount design — easy cabinet or wall-rack installation.
-
Wide inverter compatibility — supports CAN & RS485 communication for seamless integration.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SDC10-Box5 |
| Nominal Energy | 5.12 kWh |
| Usable Energy | ±4.86 kWh (95% DoD typical) |
| Nominal Voltage | 51.2 V |
| Battery Chemistry | LiFePO₄ |
| Rated Capacity | 100 Ah |
| Cycle Life | 6,000+ cycles @ 80–95% DoD |
| Max Charge/Discharge Current | 100 A |
| Peak Discharge (short duration) | Up to 150–200 A (model-dependent) |
| Communication | CAN / RS485 |
| Parallel Capability | Multiple units in parallel |
| Mounting | 19-inch rack-mount |
| Dimensions | ~442 × 420 × 135 mm (standard rack size) |
| Weight | ~45–50 kg |
| Operating Temp (Charge) | 0 °C to 55 °C |
| Operating Temp (Discharge) | –10 °C to 55 °C |
| IP Rating | IP20 (indoor) |
🏷️ Quality & Support
The Shoto SDC10-Box5 delivers proven durability, excellent depth-of-discharge performance, and long service life using robust LiFePO₄ cells. Built for hybrid and off-grid applications, it integrates smoothly with leading inverter brands and offers a scalable, reliable energy-storage solution for South African homes.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
