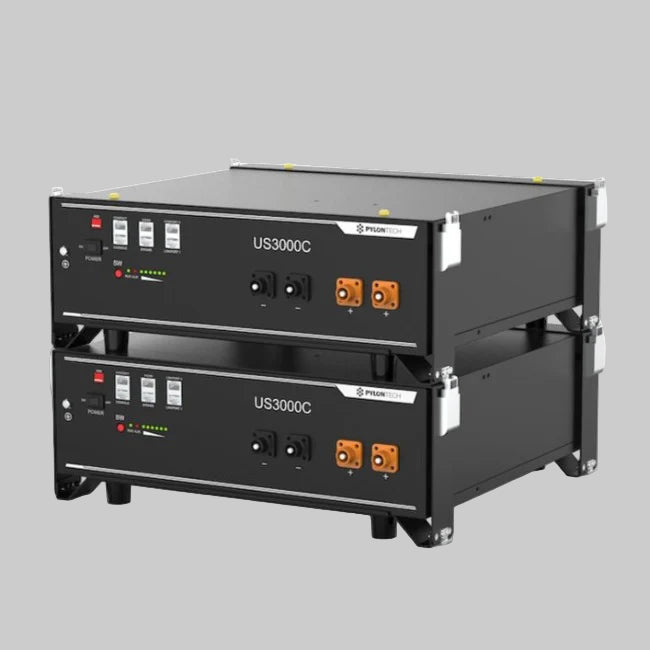

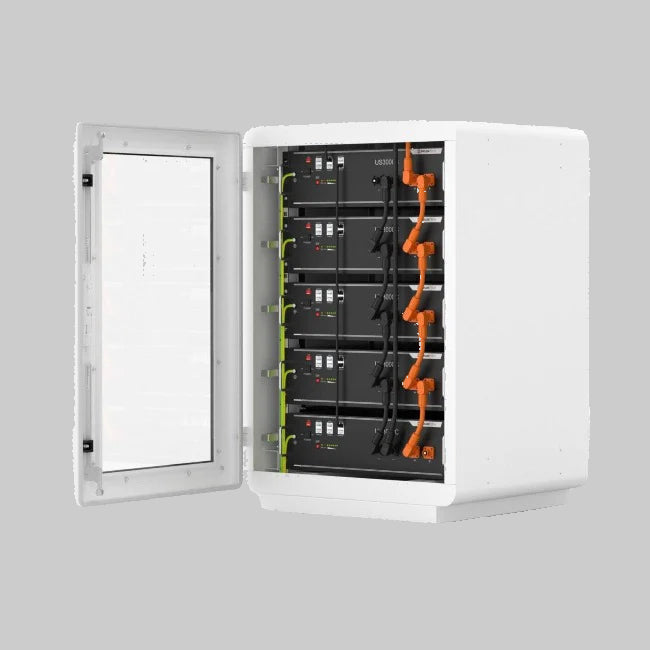

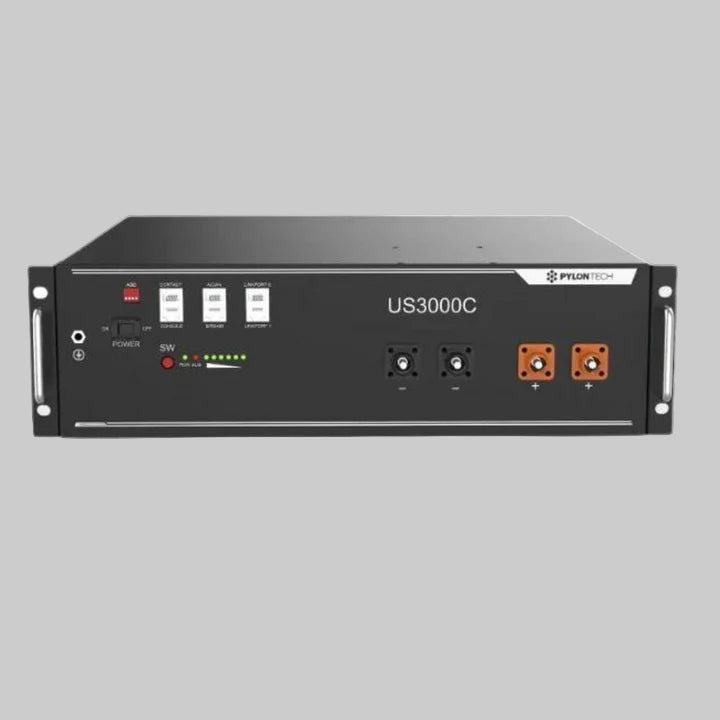

Pylontech US3000C 3.55kWh Li-Ion Solar Battery (48V)
Couldn't load pickup availability
🔋 Pylontech US3000C 3.55kWh 48V Li-Ion Solar Battery
Product Name: Pylontech US3000C
Model: US3000C
Brand: Pylontech
Type: 48V Rack-Mounted Lithium-Ion (LFP) Battery Module
Key Features
-
3.55kWh usable capacity per module
-
Long cycle life with advanced LFP chemistry
-
High charge/discharge capability for hybrid and off-grid systems
-
Modular & scalable – easily expand storage by stacking more units
-
Integrated BMS for protection and real-time monitoring
-
Wide inverter compatibility (Deye, Sunsynk, Victron, LuxPower, etc.)
-
Compact rack-mount design for easy installation
-
10-year design life
Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 48V (51.2V nominal) |
| Nominal Capacity | 3.55kWh |
| Usable Energy | 3.2kWh (approx.) |
| Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Rated Current | 37A |
| Max Charge Current | 74A |
| Max Discharge Current | 74A |
| Cycle Life | > 6,000 cycles @ 90% DOD |
| Operating Voltage Range | 44.5–53.5V |
| Weight | ±32kg |
| Mounting | Rack/Wall mount (brackets required) |
| Scalability | Up to 16 units in parallel |
| Communication | CAN / RS485 |
| Operating Temperature | Charge: 0–50°C / Discharge: -10–50°C |
Quality & Support
The Pylontech US3000C is built for long-term performance with stable LFP chemistry, reliable protection, and robust compatibility. Suitable for home or commercial storage systems requiring dependable daily cycling. Full support and warranty available through authorized distributors.
