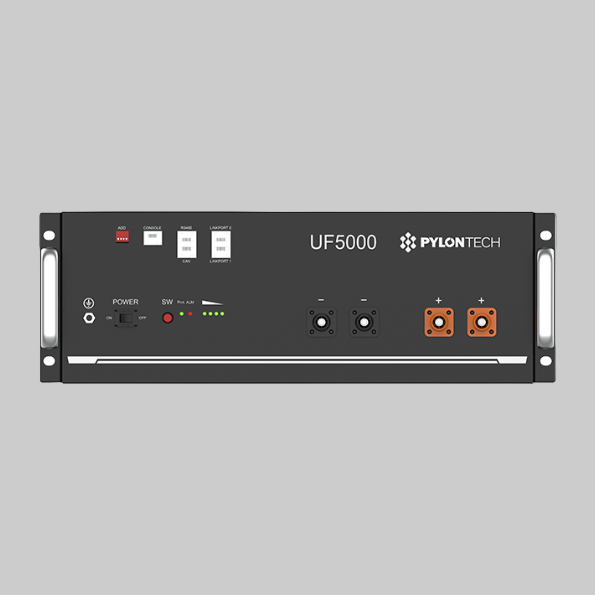

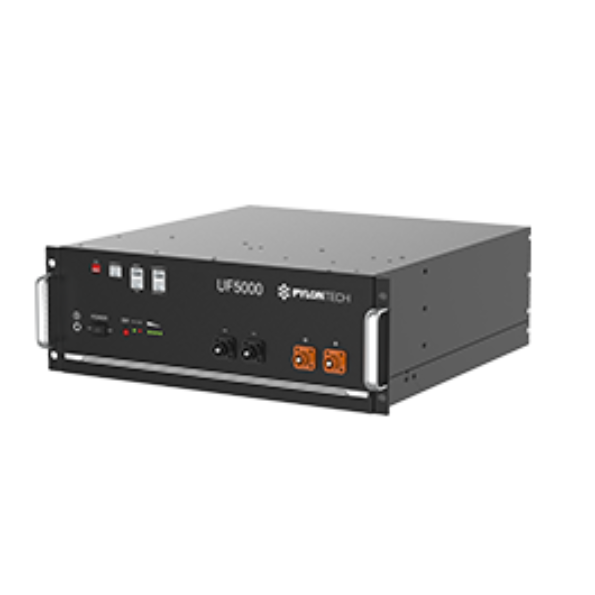

Pylon UF5000 5.12kWh Li-Ion Solar Battery (51.2V)
Couldn't load pickup availability
🔋 Pylon UF5000 5.12 kWh Li-Ion Solar Battery (51.2 V)
Model: UF5000
Brand: Pylontech
Type: 51.2 V LiFePO₄ (Lithium Iron Phosphate) Battery Module
⚡ Key Features
-
5.12 kWh nominal energy capacity — compact and high performance for home solar storage.
-
High usable capacity (~4.864 kWh) due to deep discharge capability (up to ~95% DoD).
-
Nominal voltage of 51.2 V — compatible with many 48 V hybrid inverter systems.
-
Modular and scalable — supports multiple units in parallel (e.g., up to ~20 units) to expand total capacity.
-
Long cycle life — over 6,000 cycles at 25 °C.
-
Communication ports include RS485 / CAN for inverter/smart-system integration.
📐 Specifications
| Specification | Value |
|---|---|
| Model | UF5000 |
| Nominal Energy Capacity | 5.12 kWh |
| Usable Capacity | ~4.864 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Usable Depth of Discharge | Up to ~95% |
| Cycle Life | > 6,000 cycles @ 25 °C |
| Dimensions (W × D × H) | 442 × 452.6 × 161 mm |
| Net Weight | ~42 kg |
| Rated Charge/Discharge Current | 100 A (typical) |
| Peak Current (short term) | ~105-109 A @15 min / 120-200 A @15 s |
| Maximum Units in Parallel | Up to ~20 units (≈102.4 kWh) |
| Operating Temperature | -10 °C to +55 °C (charge/discharge) |
| Storage Temperature | -20 °C to +60 °C |
| Protection Rating | IP20 (Indoor rated) |
| Warranty | Typically ~10 years (region dependent) |
🏷️ Quality & Support
Pylontech’s UF5000 is a trusted module for high-performance energy storage, built for modern residential solar systems with LiFePO₄ chemistry, deep discharge capability and strong durability. Its modular design allows expansion, and it’s backed by a recognized brand with support infrastructure.
