MCE Multifunction Digital Electric Digital Voltage Protector 3 Phase
Regular price
R 1,920.00 ZAR
Regular price
R 2,120.00 ZAR
Sale price
R 1,920.00 ZAR
Unit price
per
VAT included.
Shipping calculated at checkout.
Couldn't load pickup availability

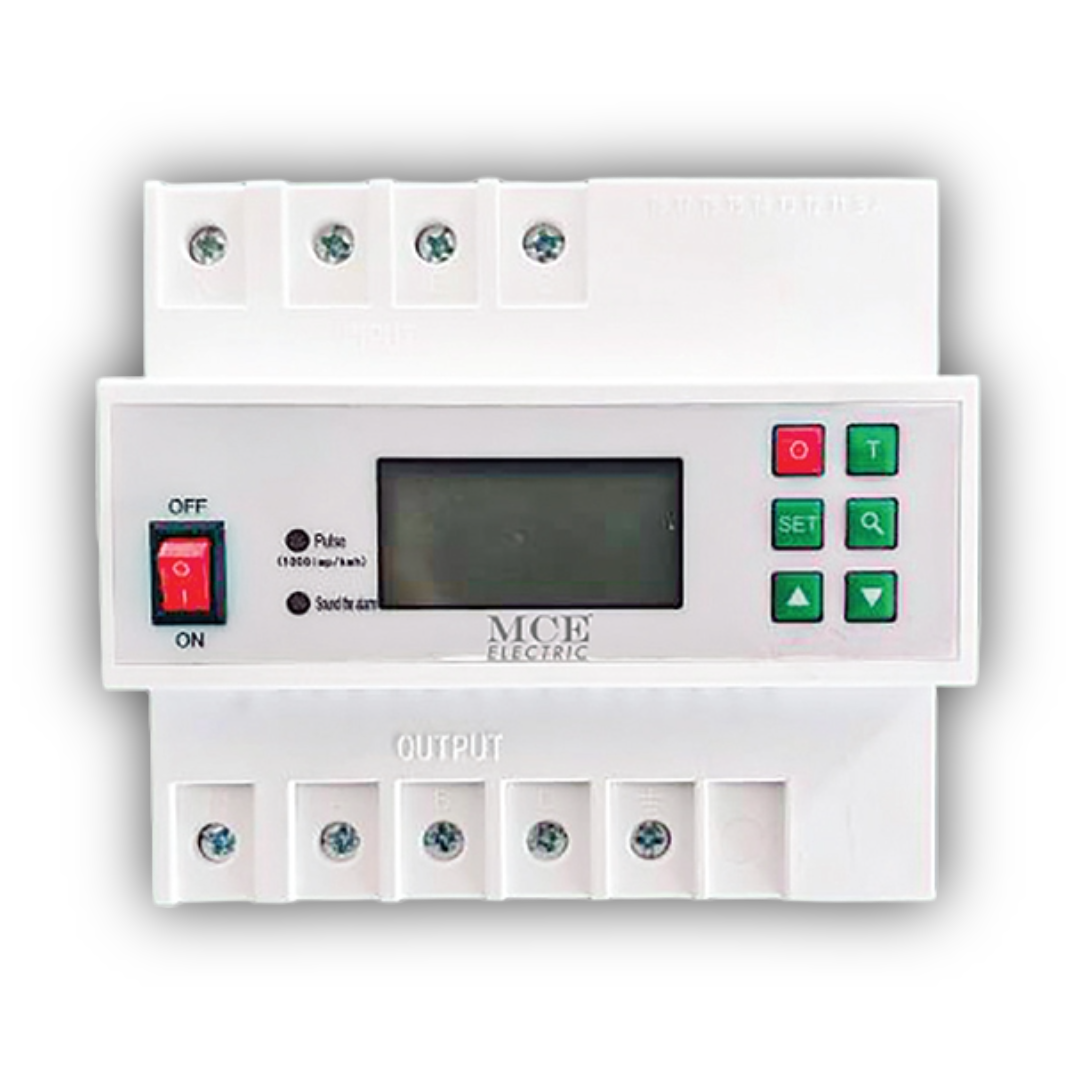

MCE Multifunction Digital Voltage Protector - 3 Phase
🆔 Models
Device: Multifunction Digital Protective Device (3 Phase) - MCE338-VAP
Includes
- 3 Phase Digital Protective Device (DIN Rail Mount)
- Integrated monitoring and protection system
Key Features
- Multi-function protection for 3-phase electrical systems
- Protects against overvoltage, undervoltage, overload, and phase failure
- Built-in energy and electrical parameter monitoring
- DIN rail mount design for easy DB installation
- Advanced fault detection with alarm indication
- RS485 communication for system integration and monitoring
- Ideal as a secondary protection device in electrical installations
Specifications
| Specification | Details |
|---|---|
| Model | MCE338-VAP |
| Type | Multi-Function Digital Protective Device |
| Phase | Three Phase |
| Voltage Rating | 400V / 230V |
| Mounting | DIN Rail |
| Communication | RS485 |
Protection Functions
| Protection Type | Details |
|---|---|
| Over Voltage | Yes |
| Under Voltage | Yes |
| Overload Protection | Yes |
| Earth Leakage | Yes |
| Cable Over Temperature | Yes |
| Phase Failure Protection | Yes |
| Fault Alarm | Yes |
Monitoring Functions
| Parameter | Details |
|---|---|
| Energy | kWh (Bidirectional, 6 digit + 2 decimals) |
| Voltage | Yes |
| Current | Yes |
| Leakage Current | Yes |
| Power | Yes |
| Power Factor | Yes |
| Frequency | Yes |
| Temperature | Yes |
Technical & Build
| Specification | Details |
|---|---|
| Installation | DIN rail mounted in DB board |
| Application | Industrial / Commercial electrical systems |
| Integration | Compatible with monitoring systems via RS485 |
Additional Information
- Designed for 3-phase 400V/230V systems
- Must be used in conjunction with an earth leakage unit
- Intended as a secondary standalone protection device
Quality & Support
The MCE338-VAP provides comprehensive protection and real-time monitoring for three-phase systems, helping prevent electrical faults, improve system reliability, and ensure safe operation in commercial and industrial environments.
