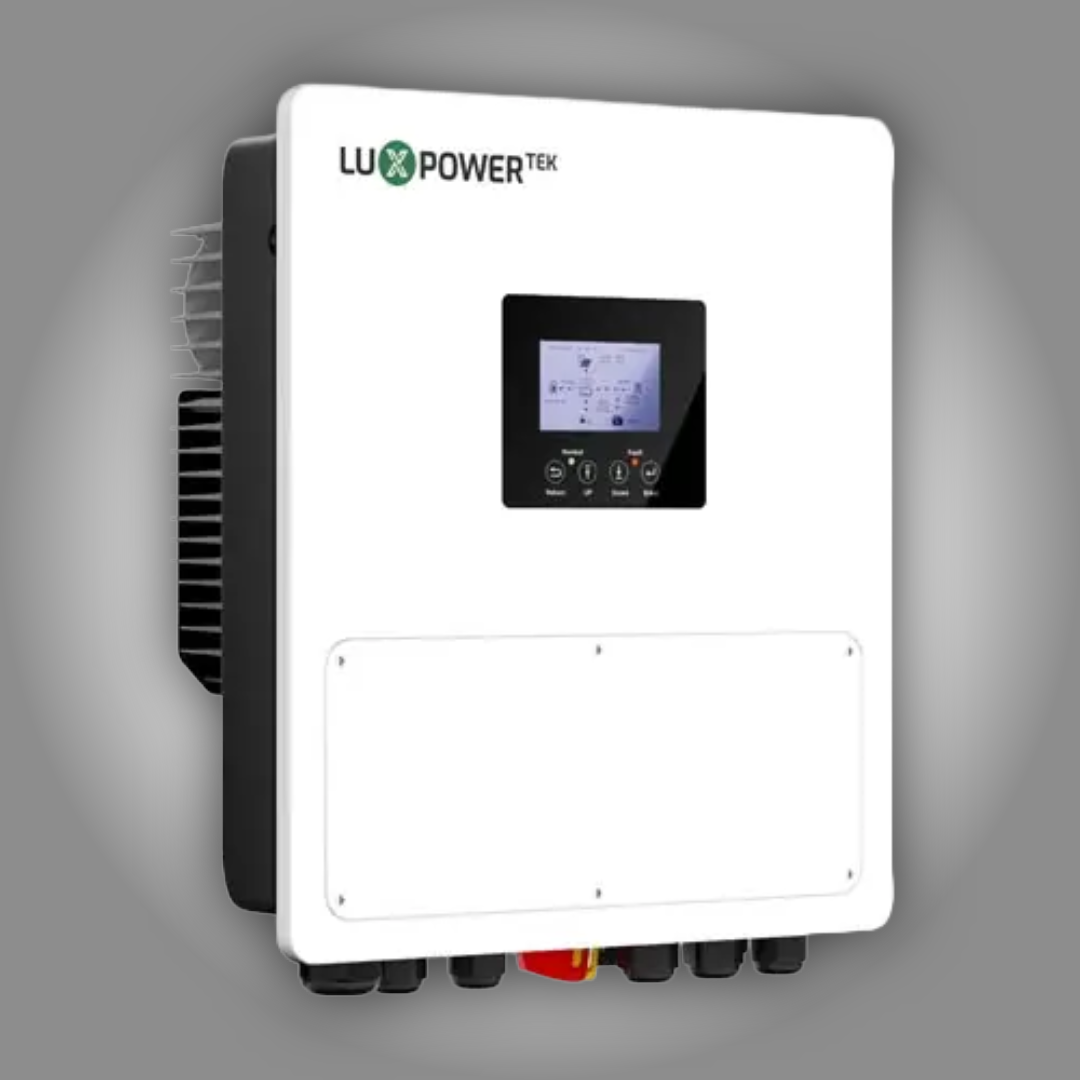

LuxPower SNA PRO-EU 6.5kW Hybrid Inverter

Model: SNA PRO-EU 6.5K
Brand: LuxPower
Type: Single-Phase Hybrid Inverter (Eco Hybrid)

Key Features

• 6.5kW hybrid inverter — suitable for residential and small commercial energy systems
• Dual MPPT design — improved solar generation with up to 12kW PV input
• Parallel capability — supports up to 16 units for scalable installations
• Seamless UPS functionality — automatic switchover (<10ms) for uninterrupted power
• High charge/discharge current — up to 135A / 140A for fast battery response
• Compatible with lithium-ion and lead-acid batteries — flexible storage options
• Dedicated generator/smart load port — enhanced system control and backup integration
• IP66 protection rating — durable for indoor and outdoor installations
• Smart monitoring — remote configuration via WiFi / RS485 / CAN
• Pure sine wave output — safe for sensitive appliances and high-start loads
• Intelligent cooling system — ensures stable and efficient operation

Specifications

PV Input

Specification	Details
Max PV Input Power	12,000W (6,000W / 6,000W)
MPPT Trackers	2
Max PV Input Voltage	500V
MPPT Voltage Range	80 – 400V
Start-up Voltage	80V
Max PV Input Current	20A / MPPT
Max Short-Circuit Current	25A / MPPT

Battery

Specification	Details
Battery Type	Lithium-ion / Lead-acid
Rated Voltage	48V
Voltage Range	40 – 60V
Max Charge / Discharge Current	135A / 140A
Max Charge / Discharge Power	6500W
Battery Wake-Up	PV / Grid / Generator Supported

AC Output (Grid)

Specification	Details
Rated Output Power	6500W
Rated Voltage	230V
Frequency	50 / 60 Hz
Power Factor	0.99
THDi	<5%
Max AC Input Power	9000W
Max Continuous Passthrough Current	40A

UPS Output

Specification	Details
Rated Power	6500W
Surge Power	13,000W (5s)
Switching Time	<10ms (Single)
Waveform	Pure Sine Wave
Motor Load Capacity	Up to 5HP
Overload Capacity	110%–150% (10s), 150%–200% (5s)

Efficiency

Specification	Value
Max Efficiency	97.5%
EU Efficiency	95.5%
MPPT Efficiency	99.0%

Protection Features

• PV reverse polarity protection
• Overcurrent and overvoltage protection
• Anti-islanding protection
• AC short-circuit protection
• Grid monitoring
• Ground fault monitoring
• AC/DC surge protection (Type II)
• Integrated PV switch

General Specifications

Specification	Details
Dimensions	384 × 434 × 187 mm
Weight	16.95 kg
Protection Rating	IP66
Operating Temperature	-25°C to +60°C (>45°C derating)
Storage Temperature	-15°C to +60°C
Humidity	5% – 95%
Cooling	Smart Cooling
Topology	Transformerless (AC Side)
Max Altitude	4000 m (>2000 m derating)
Noise Level	~40 dB

Communication & Monitoring

• Display: LCD + LED
• Interfaces: RS485 / WiFi / CAN
• Remote monitoring and configuration supported

Certifications

• EN61000 / EN62109-1/-2
• IEC61727 / IEC62116
• NRS097 compliant

Applications

• Residential solar systems
• Load shedding backup solutions
• Off-grid and hybrid installations
• Small commercial energy systems

Quality & Support

The LuxPower SNA PRO-EU 6.5kW inverter delivers flexible hybrid functionality, high charging capability, and seamless backup performance, making it a reliable and scalable solution for modern energy systems.
