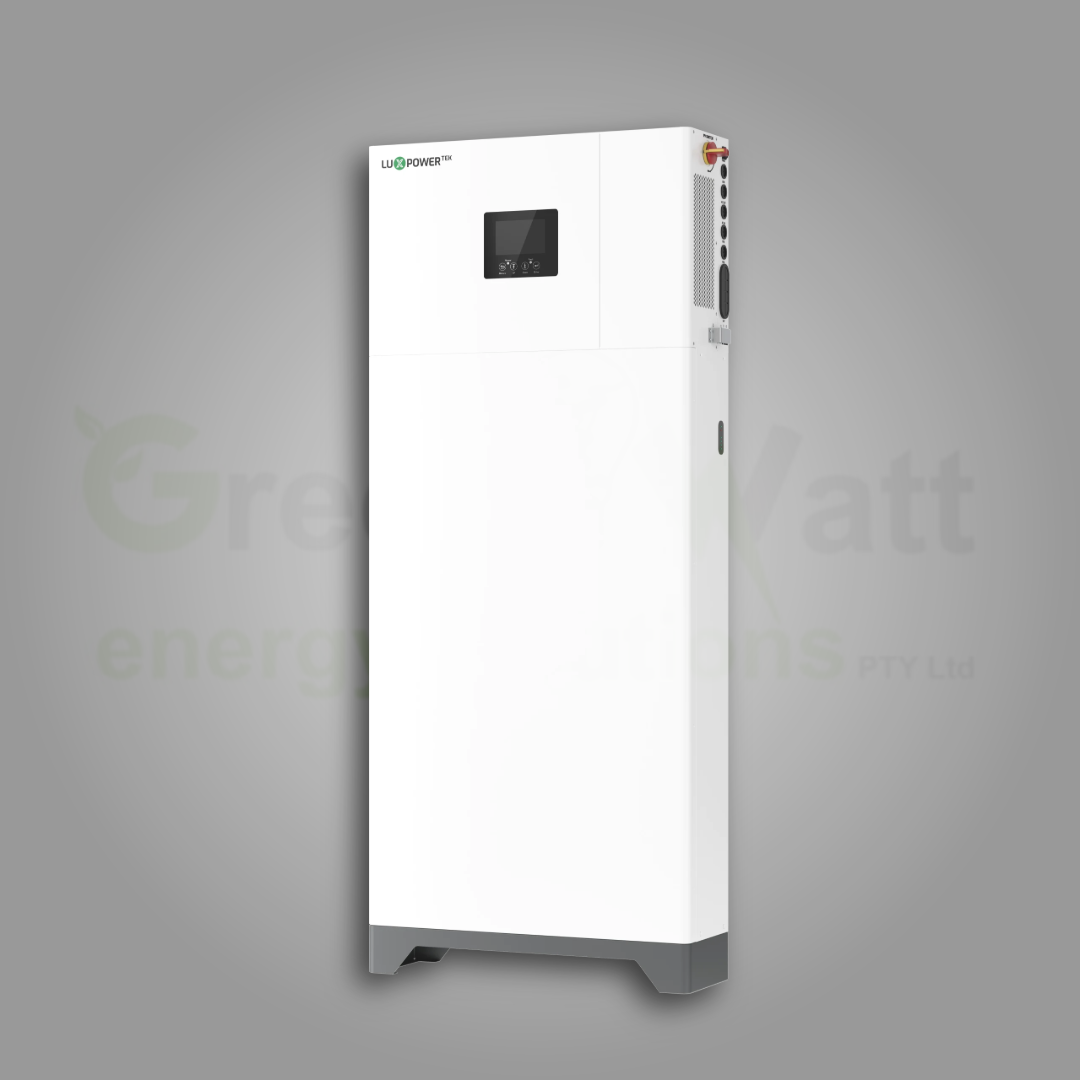

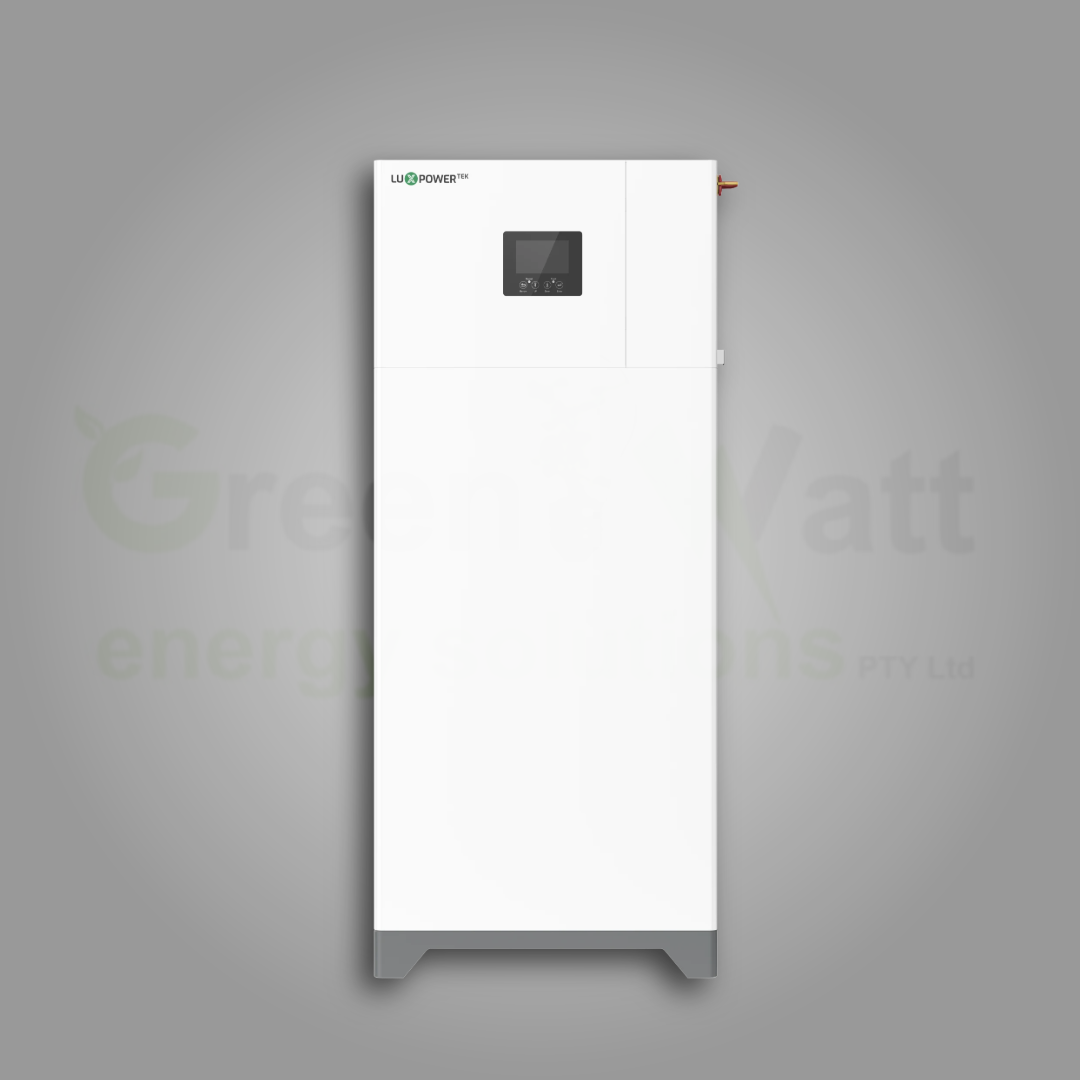

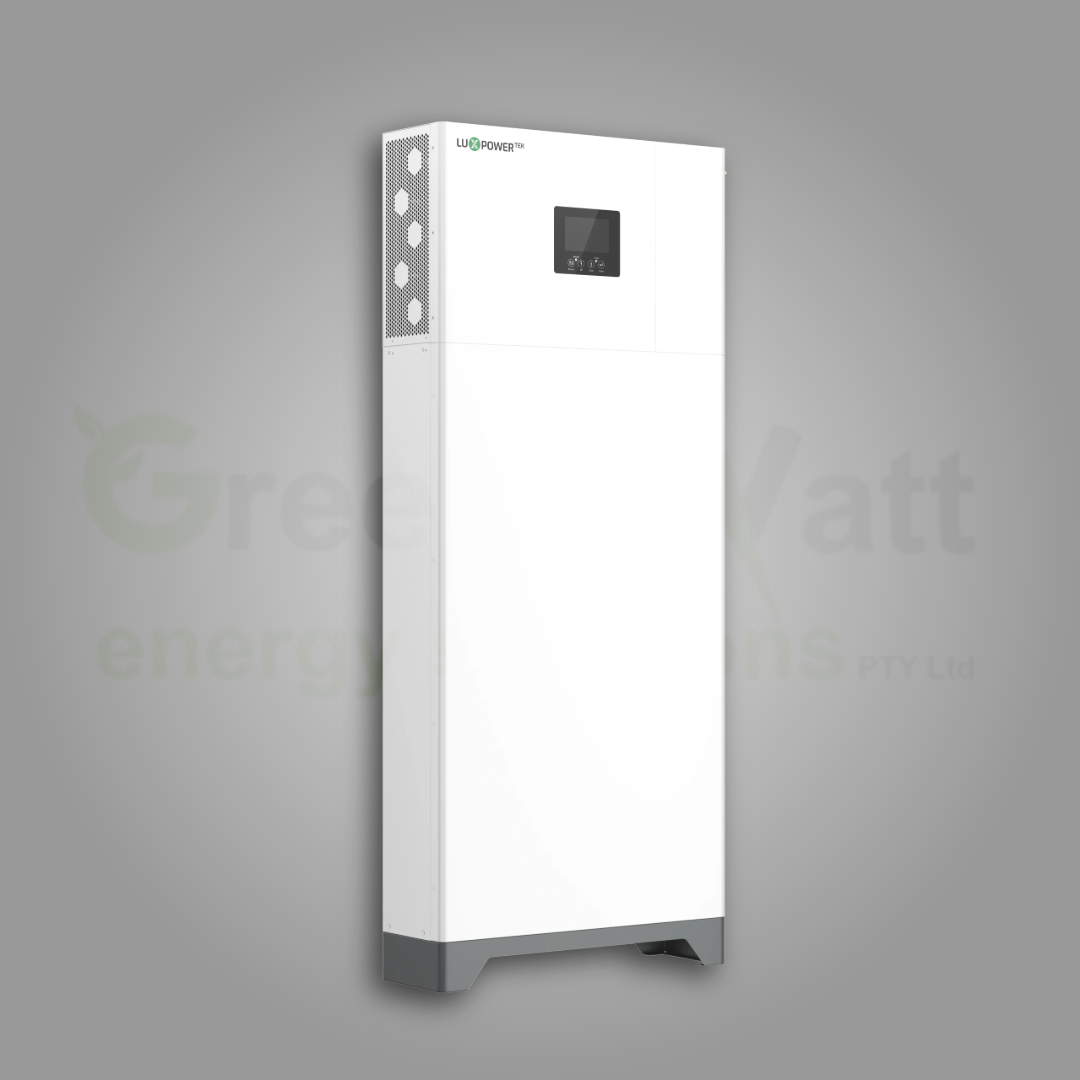

Luxpower EcoBeast Pro 15kWh All in one Energy Storage System
Couldn't load pickup availability
Luxpower EcoBeast Pro 15kWh All-in-One Energy Storage System
Brand: Luxpower
Model: EcoBeast Pro
Type: All-in-One Energy Storage System
Battery Capacity: 15kWh
Inverter Output: 6.5kW
PV Input: 9.6kW
Battery Type: Lithium-Ion
Battery Modules: 1
Key Features
- 6.5kW Continuous Output – Stable backup power for residential energy needs.
- 9.6kW PV Input – Supports substantial solar generation capacity.
- 15kWh Integrated Battery – Provides increased energy storage for longer backup periods.
- 140A Charge/Discharge – High battery charging and discharging capability.
- <7ms Seamless Switching – Rapid transition to backup power.
- All-in-One Design – Integrated inverter and battery system for a streamlined installation.
- 93% System Efficiency – Efficient energy conversion and storage.
- 2× Surge Power for 5 Seconds – Handles short-duration high-power loads.
- Pure Sine Wave Output – Stable power for household electrical equipment.
- PV, Grid & Generator Input – Multiple energy sources supported.
- Real-Time System Visibility – Monitor system performance and energy flow.
- LuxCloud Remote Control – Remote monitoring, control and system upgrades.
- AC Surge Protection & Grid Monitoring – Integrated protection and grid monitoring.
- Smart Cooling – Intelligent inverter cooling.
Inverter Module Specifications
| Specification | Details |
|---|---|
| Max. PV Input Power | 9,600W |
| Rated PV Input Voltage | 320V |
| Independent MPPT Inputs | 2 |
| Max. PV Input Voltage | 500V |
| MPPT Voltage Range | 120–400V |
| Start-Up Voltage | 100V |
| Max. PV Input Current per MPPT | 17A |
| Max. PV Short-Circuit Current per MPPT | 25A |
| Max. PV Charging Current | 140A |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 208 / 220 / 230 / 240V ±5% |
| Output Frequency | 50 / 60Hz |
| Rated Output Power | 6,500W |
| Rated Output Current | 28.3A |
| Peak Efficiency | 93% |
| Surge Power | 2 × Rated Power for 5 seconds |
| Switching Time | <7ms Single / <20ms Parallel |
| AC Input Voltage | 230V |
| AC Input Frequency | 50 / 60Hz |
| Max. AC Input Current | 45A |
| Max. AC Input Power | 9,000W |
| Max. AC Charging Current | 140A |
| Bypass Relay Rated AC Current | 40A |
| GEN Input Voltage | 230V |
| GEN Input Frequency | 50 / 60Hz |
| Max. GEN Input Current | 32A |
| Max. GEN Input Power | 7,370W |
| Max. Efficiency | 93% |
| Max. Charge / Discharge Efficiency | 93% |
| Grid Monitoring | Yes |
| AC Surge Protection | Type III |
| Topology | Transformerless |
| Cooling | Smart Cooling |
| Communication | RS485 / Wi-Fi / CAN |
| Display | LCD + LED |
| Ingress Protection | IP20 |
| Inverter Weight | 16.5kg |
| Inverter Dimensions (W × H × D) | 580 × 425 × 175mm |
| Noise Emission | <50dB |
| Operating Temperature | 0–50°C |
| Storage Temperature | -15–60°C |
| Humidity | 5–95% RH, non-condensing |
| Max. Operating Altitude | 2,000m |
| Warranty | 3 years – Inverter Module |
15kWh Battery Module Specifications
| Specification | Details |
|---|---|
| Battery Type | Lithium-Ion |
| Battery Energy | 15kWh |
| Battery Voltage Range | 38.4–60V |
| Number of Modules per Inverter | 1 |
| Rated Voltage | 51.2V |
| Max. Discharge Current | 140A |
| Max. Charge Current | 140A |
| Battery Module Dimensions (W × H × D) | 580 × 950 × 175mm |
| Battery Module Weight | 98kg |
| Warranty | 5 years – Battery Module |
System Benefits
The Luxpower EcoBeast Pro 15kWh combines a 6.5kW inverter with a 15kWh integrated lithium-ion battery, providing a compact all-in-one solution for solar energy storage, backup power and energy management.
With 9.6kW PV input, 140A battery charging/discharging and <7ms switching, the system is designed for efficient solar utilisation and rapid backup power response.
Quality & Support
Genuine Luxpower equipment supplied by Green Watt Energy Solutions, with professional installation support and after-sales assistance.
