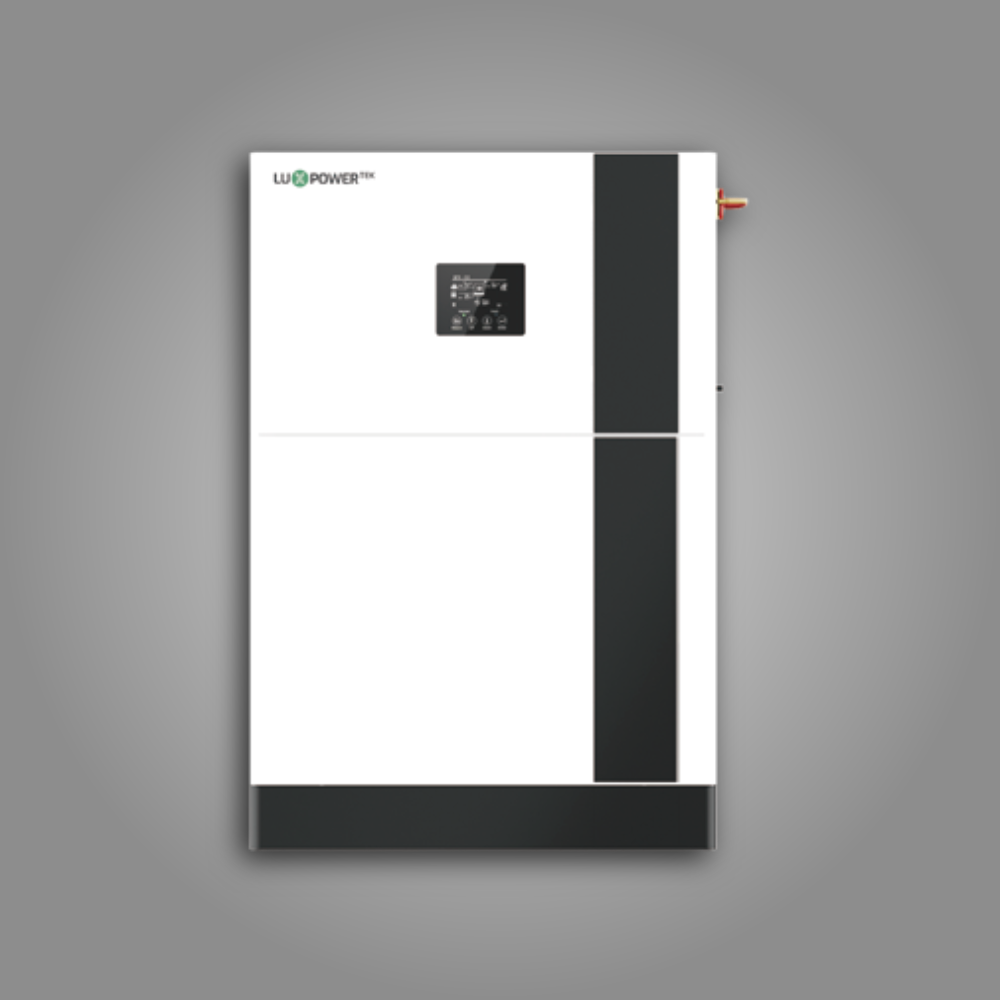

LuxPower Eco Beast 5.12kWh All-in-One Energy Storage System (Single Phase)
Couldn't load pickup availability
🔋 LuxPower Eco Beast 5.12kWh All-in-One Energy Storage System (Single Phase)
Model: Eco Beast 6000 (5kWh)
Brand: LuxPower
Type: Single-Phase All-in-One Hybrid Inverter & LiFePO₄ Battery Energy Storage System
⚡ Key Features
- Integrated all-in-one energy storage system combining a 6kW hybrid inverter with 5.12kWh LiFePO₄ battery storage.
- Supplied with 1 × 5.12kWh Battery Beast-5 battery module for reliable residential backup and solar energy storage.
- High-efficiency 6kW hybrid inverter featuring 2 independent MPPTs supporting up to 9.6kW of solar PV input.
- Expandable battery storage with support for up to 3 battery modules, allowing future expansion to 15.36kWh.
- Supports up to 16 complete systems in parallel for increased power and storage capacity.
- Ultra-fast UPS switching time below 7ms ensures uninterrupted power during outages.
- Operates seamlessly in both on-grid and off-grid applications.
- Battery can be activated directly from solar PV, AC grid, or generator.
- Intelligent battery module-level monitoring maximizes performance and battery lifespan.
- Built-in Wi-Fi, CAN and RS485 communications for remote monitoring and firmware updates.
- Pure sine wave output suitable for sensitive household appliances and electronics.
- Smart cooling system ensures reliable operation with low noise.
- Compact, space-saving design simplifies installation.
📐 Specifications
| Specification | Value |
|---|---|
| Inverter Model | Eco Beast 6000 |
| Battery Configuration | 1 × Battery Beast-5 Module |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Battery Capacity | 5.12 kWh |
| Battery Voltage | 51.2 V |
| Battery Capacity (Ah) | 100 Ah |
| Nominal AC Output Power | 6,000 W |
| Surge Power | 12,000 W (2× Rated Power for 5 sec) |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 208 / 220 / 230 / 240 V |
| Output Frequency | 50 / 60 Hz |
| UPS Transfer Time | <7 ms (Single Unit) |
| Peak Efficiency | 93% |
| Maximum PV Input Power | 9,600 W |
| MPPT Inputs | 2 |
| Maximum PV Voltage | 480 V |
| MPPT Voltage Range | 120 – 385 V |
| Start-Up Voltage | 100 V |
| Maximum PV Charging Current | 140 A |
| Maximum AC Charging Current | 60 A |
| Generator Charging Support | Yes |
| Maximum Battery Charge Current | 100 A |
| Maximum Battery Discharge Current | 100 A |
| Parallel Capability | Up to 16 Units |
| Cooling | Smart Cooling |
| Communication | Wi-Fi / CAN / RS485 |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -15°C to 60°C |
| Maximum Altitude | 2,000 m |
| Certification | NRS097-2-1:2024, EN/IEC62109-1/-2, EN61000, UN38.3 |
📏 Physical Specifications
| Specification | Details |
|---|---|
| Inverter Dimensions (W × H × D) | 580 × 350 × 165 mm |
| Inverter Weight | 17.5 kg |
| Battery Module Dimensions (W × H × D) | 580 × 434 × 165 mm |
| Battery Module Weight | 54 kg |
| Total System Weight | Approximately 71.5 kg |
🔧 Technical & Build
| Specification | Details |
|---|---|
| System Type | All-in-One Hybrid Energy Storage System |
| Inverter Type | Single-Phase Hybrid Inverter |
| MPPT Trackers | 2 Independent MPPTs |
| Battery Technology | LiFePO₄ (LFP) |
| Battery Monitoring | Module-Level Monitoring |
| Communication Protocols | CAN / RS485 / Wi-Fi |
| Display | LCD + LED |
| Topology | Transformer-less |
| Cooling | Intelligent Smart Cooling |
| Installation | Floor Mounted |
| Applications | Residential Backup, Solar Self-Consumption, Hybrid & Off-Grid Systems |
ℹ️ Additional Information
The LuxPower Eco Beast 5.12kWh is a compact all-in-one energy storage solution that combines a powerful 6kW hybrid inverter with a high-performance 5.12kWh LiFePO₄ battery. Designed for residential solar installations, it delivers reliable backup power, intelligent energy management, and efficient solar self-consumption in a single integrated unit.
Its modular design allows battery expansion up to 15.36kWh by adding additional Battery Beast-5 modules, while support for up to 16 systems in parallel provides flexibility for larger installations. With dual MPPT inputs, generator compatibility, built-in Wi-Fi monitoring, and fast UPS backup switching, the Eco Beast offers dependable performance for grid-connected, hybrid, and off-grid applications.
🏷️ Quality & Support
The LuxPower Eco Beast 5.12kWh All-in-One Energy Storage System combines advanced LiFePO₄ battery technology with a high-performance 6kW hybrid inverter to deliver reliable, efficient, and intelligent energy storage. Featuring dual MPPT solar charging, seamless backup power, remote monitoring, and future expansion capability, it is an ideal solution for homeowners seeking dependable energy independence and long-term performance.
