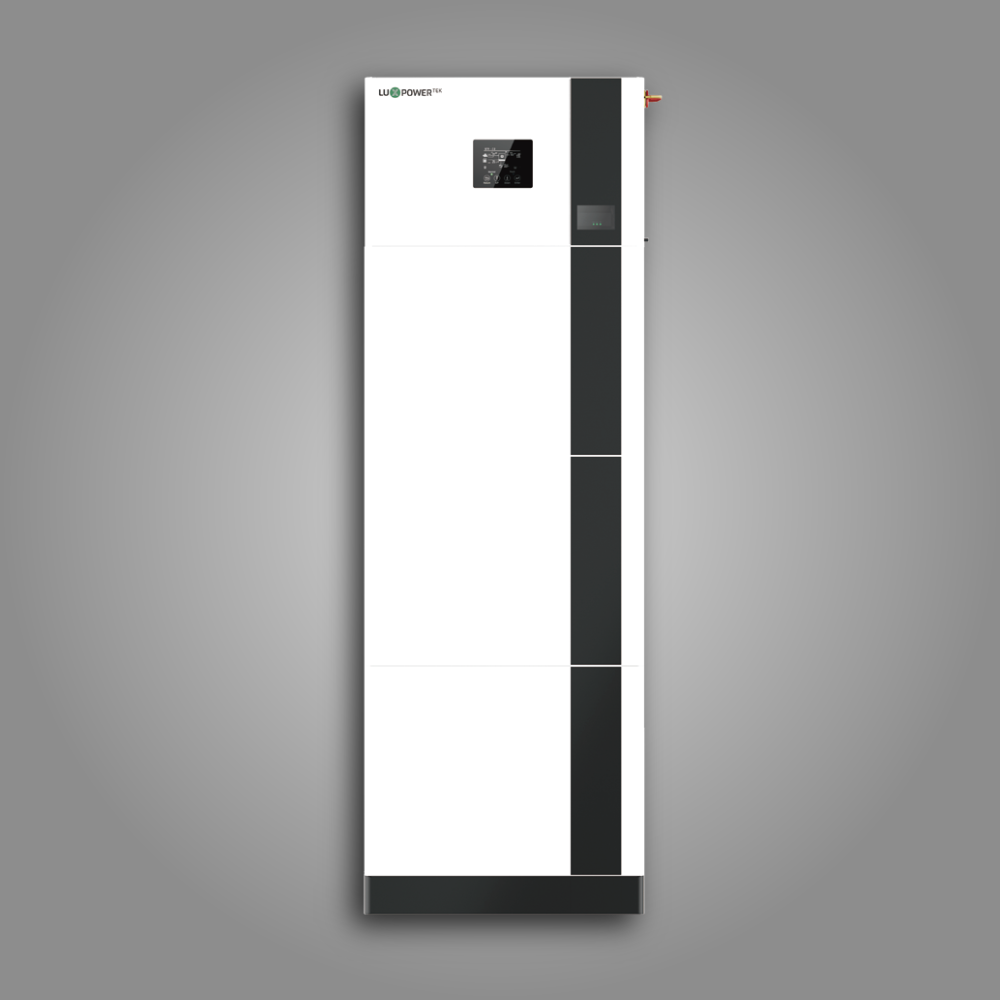

LuxPower Eco Beast 15.36kWh All-in-One Energy Storage System (Single Phase)
Couldn't load pickup availability
🔋 LuxPower Eco Beast 15.36kWh All-in-One Energy Storage System (Single Phase)
Model: Eco Beast 6000 (15kWh)
Brand: LuxPower
Type: Single-Phase All-in-One Hybrid Inverter & LiFePO₄ Battery Energy Storage System
⚡ Key Features
- Integrated all-in-one energy storage system combining a 6kW hybrid inverter with 15.36kWh LiFePO₄ battery storage.
- Supplied with 3 × 5.12kWh Battery Beast-5 battery modules for high-capacity residential energy storage and backup power.
- High-efficiency 6kW hybrid inverter featuring 2 independent MPPTs supporting up to 9.6kW of solar PV input.
- Maximum battery configuration supported by a single Eco Beast system, delivering 15.36kWh of expandable energy storage.
- Supports up to 16 complete systems in parallel for increased power output and large-scale energy storage.
- Ultra-fast UPS switching time below 7ms provides uninterrupted backup power during grid failures.
- Operates seamlessly in both on-grid and off-grid applications.
- Battery can be activated directly from solar PV, AC grid, or generator, ensuring reliable operation under all conditions.
- Intelligent battery module-level monitoring optimizes battery performance, safety, and longevity.
- Built-in Wi-Fi, CAN and RS485 communications enable remote monitoring and firmware updates.
- Pure sine wave output provides clean, stable power for sensitive electronics and household appliances.
- Smart cooling system delivers efficient thermal management with quiet operation.
- Compact integrated design reduces installation time while maintaining a clean, professional appearance.
📐 Specifications
| Specification | Value |
|---|---|
| Inverter Model | Eco Beast 6000 |
| Battery Configuration | 3 × Battery Beast-5 Modules |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Battery Capacity | 15.36 kWh |
| Battery Voltage | 51.2 V |
| Battery Capacity (Ah) | 300 Ah (3 × 100 Ah) |
| Nominal AC Output Power | 6,000 W |
| Surge Power | 12,000 W (2× Rated Power for 5 sec) |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 208 / 220 / 230 / 240 V |
| Output Frequency | 50 / 60 Hz |
| UPS Transfer Time | <7 ms (Single Unit) |
| Peak Efficiency | 93% |
| Maximum PV Input Power | 9,600 W |
| MPPT Inputs | 2 |
| Maximum PV Voltage | 480 V |
| MPPT Voltage Range | 120 – 385 V |
| Start-Up Voltage | 100 V |
| Maximum PV Charging Current | 140 A |
| Maximum AC Charging Current | 60 A |
| Generator Charging Support | Yes |
| Maximum Battery Charge Current | 100 A |
| Maximum Battery Discharge Current | 100 A |
| Parallel Capability | Up to 16 Units |
| Cooling | Smart Cooling |
| Communication | Wi-Fi / CAN / RS485 |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -15°C to 60°C |
| Maximum Altitude | 2,000 m |
| Certification | NRS097-2-1:2024, EN/IEC62109-1/-2, EN61000, UN38.3 |
📏 Physical Specifications
| Specification | Details |
| Inverter Dimensions (W × H × D) | 580 × 350 × 165 mm |
| Inverter Weight | 17.5 kg |
| Battery Module Dimensions (W × H × D) | 580 × 434 × 165 mm |
| Battery Module Weight | 54 kg each |
| Total System Weight | Approximately 179.5 kg |
🔧 Technical & Build
| Specification | Details |
| System Type | All-in-One Hybrid Energy Storage System |
| Inverter Type | Single-Phase Hybrid Inverter |
| MPPT Trackers | 2 Independent MPPTs |
| Battery Technology | LiFePO₄ (LFP) |
| Battery Monitoring | Module-Level Monitoring |
| Communication Protocols | CAN / RS485 / Wi-Fi |
| Display | LCD + LED |
| Topology | Transformer-less |
| Cooling | Intelligent Smart Cooling |
| Installation | Floor Mounted |
| Applications | Residential Backup, Solar Self-Consumption, Hybrid & Off-Grid Systems |
ℹ️ Additional Information
The LuxPower Eco Beast 15.36kWh is the highest-capacity configuration in the Eco Beast all-in-one energy storage range, combining a powerful 6kW hybrid inverter with 15.36kWh of premium LiFePO₄ battery storage. Designed for homes with high daily energy consumption and extended backup requirements, it delivers reliable power, intelligent energy management, and maximum solar self-consumption within a compact integrated solution.
Equipped with three Battery Beast-5 modules, this system provides the maximum supported battery capacity for a single Eco Beast inverter while retaining support for up to 16 systems in parallel for larger residential and light commercial installations. Featuring dual MPPT solar inputs, generator compatibility, built-in Wi-Fi monitoring, and ultra-fast UPS switching, the Eco Beast offers dependable performance for grid-connected, hybrid, and off-grid energy systems.
🏷️ Quality & Support
The LuxPower Eco Beast 15.36kWh All-in-One Energy Storage System combines advanced LiFePO₄ battery technology with a powerful 6kW hybrid inverter to deliver exceptional energy storage performance, intelligent power management, and reliable backup protection. With dual MPPT solar charging, seamless UPS functionality, remote monitoring, and future scalability, it provides a premium energy solution for homeowners seeking maximum energy independence, lower electricity costs, and long-term reliability.
