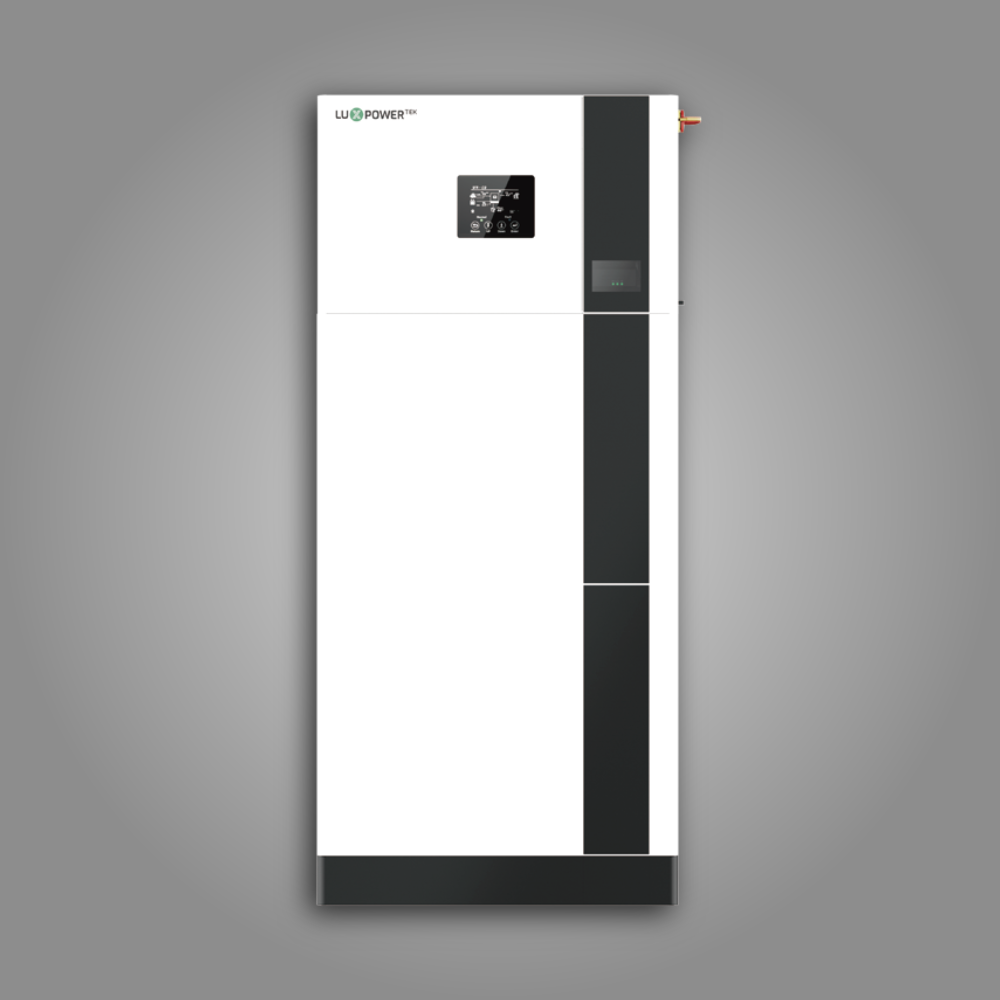

LuxPower Eco Beast 10.24kWh All-in-One Energy Storage System (Single Phase)
Couldn't load pickup availability
🔋 LuxPower Eco Beast 10.24kWh All-in-One Energy Storage System (Single Phase)
Model: Eco Beast 6000 (10kWh)
Brand: LuxPower
Type: Single-Phase All-in-One Hybrid Inverter & LiFePO₄ Battery Energy Storage System
⚡ Key Features
- Integrated all-in-one energy storage system combining a 6kW hybrid inverter with 10.24kWh LiFePO₄ battery storage.
- Supplied with 2 × 5.12kWh Battery Beast-5 battery modules for dependable residential energy storage and backup power.
- High-efficiency 6kW hybrid inverter featuring 2 independent MPPTs supporting up to 9.6kW of solar PV input.
- Expandable battery storage with support for up to 3 battery modules, allowing future expansion to 15.36kWh.
- Supports up to 16 complete systems in parallel for increased power output and energy storage capacity.
- Ultra-fast UPS switching time below 7ms ensures uninterrupted power during grid outages.
- Operates seamlessly in both on-grid and off-grid applications.
- Battery can be activated directly from solar PV, AC grid, or generator for maximum flexibility.
- Intelligent battery module-level monitoring optimizes performance, safety, and battery lifespan.
- Built-in Wi-Fi, CAN and RS485 communications for remote monitoring and firmware updates.
- Pure sine wave output provides clean, stable power for sensitive household appliances and electronics.
- Smart cooling system ensures quiet, reliable operation and extended component life.
- Compact integrated design simplifies installation while reducing wiring and installation time.
📐 Specifications
| Specification | Value |
|---|---|
| Inverter Model | Eco Beast 6000 |
| Battery Configuration | 2 × Battery Beast-5 Modules |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Battery Capacity | 10.24 kWh |
| Battery Voltage | 51.2 V |
| Battery Capacity (Ah) | 200 Ah (2 × 100 Ah) |
| Nominal AC Output Power | 6,000 W |
| Surge Power | 12,000 W (2× Rated Power for 5 sec) |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 208 / 220 / 230 / 240 V |
| Output Frequency | 50 / 60 Hz |
| UPS Transfer Time | <7 ms (Single Unit) |
| Peak Efficiency | 93% |
| Maximum PV Input Power | 9,600 W |
| MPPT Inputs | 2 |
| Maximum PV Voltage | 480 V |
| MPPT Voltage Range | 120 – 385 V |
| Start-Up Voltage | 100 V |
| Maximum PV Charging Current | 140 A |
| Maximum AC Charging Current | 60 A |
| Generator Charging Support | Yes |
| Maximum Battery Charge Current | 100 A |
| Maximum Battery Discharge Current | 100 A |
| Parallel Capability | Up to 16 Units |
| Cooling | Smart Cooling |
| Communication | Wi-Fi / CAN / RS485 |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -15°C to 60°C |
| Maximum Altitude | 2,000 m |
| Certification | NRS097-2-1:2024, EN/IEC62109-1/-2, EN61000, UN38.3 |
📏 Physical Specifications
| Specification | Details |
| Inverter Dimensions (W × H × D) | 580 × 350 × 165 mm |
| Inverter Weight | 17.5 kg |
| Battery Module Dimensions (W × H × D) | 580 × 434 × 165 mm |
| Battery Module Weight | 54 kg each |
| Total System Weight | Approximately 125.5 kg |
🔧 Technical & Build
| Specification | Details |
| System Type | All-in-One Hybrid Energy Storage System |
| Inverter Type | Single-Phase Hybrid Inverter |
| MPPT Trackers | 2 Independent MPPTs |
| Battery Technology | LiFePO₄ (LFP) |
| Battery Monitoring | Module-Level Monitoring |
| Communication Protocols | CAN / RS485 / Wi-Fi |
| Display | LCD + LED |
| Topology | Transformer-less |
| Cooling | Intelligent Smart Cooling |
| Installation | Floor Mounted |
| Applications | Residential Backup, Solar Self-Consumption, Hybrid & Off-Grid Systems |
ℹ️ Additional Information
The LuxPower Eco Beast 10.24kWh is a powerful all-in-one energy storage solution that combines a high-performance 6kW hybrid inverter with 10.24kWh of LiFePO₄ battery storage. Designed for homes with higher daily energy consumption, it provides reliable backup power, intelligent energy management, and maximum solar self-consumption within a compact, integrated system.
Its modular design allows battery expansion up to 15.36kWh by adding an additional Battery Beast-5 module, while support for up to 16 systems in parallel offers exceptional scalability for larger residential or light commercial installations. Featuring dual MPPT solar inputs, generator compatibility, built-in Wi-Fi monitoring, and ultra-fast UPS switching, the Eco Beast delivers dependable performance for grid-connected, hybrid, and off-grid applications.
🏷️ Quality & Support
The LuxPower Eco Beast 10.24kWh All-in-One Energy Storage System combines advanced LiFePO₄ battery technology with a feature-rich 6kW hybrid inverter to deliver efficient, intelligent, and reliable energy storage. With dual MPPT solar charging, seamless backup power, remote monitoring, and flexible expansion capability, it is an ideal solution for homeowners seeking greater energy independence, reduced electricity costs, and long-term system reliability.
