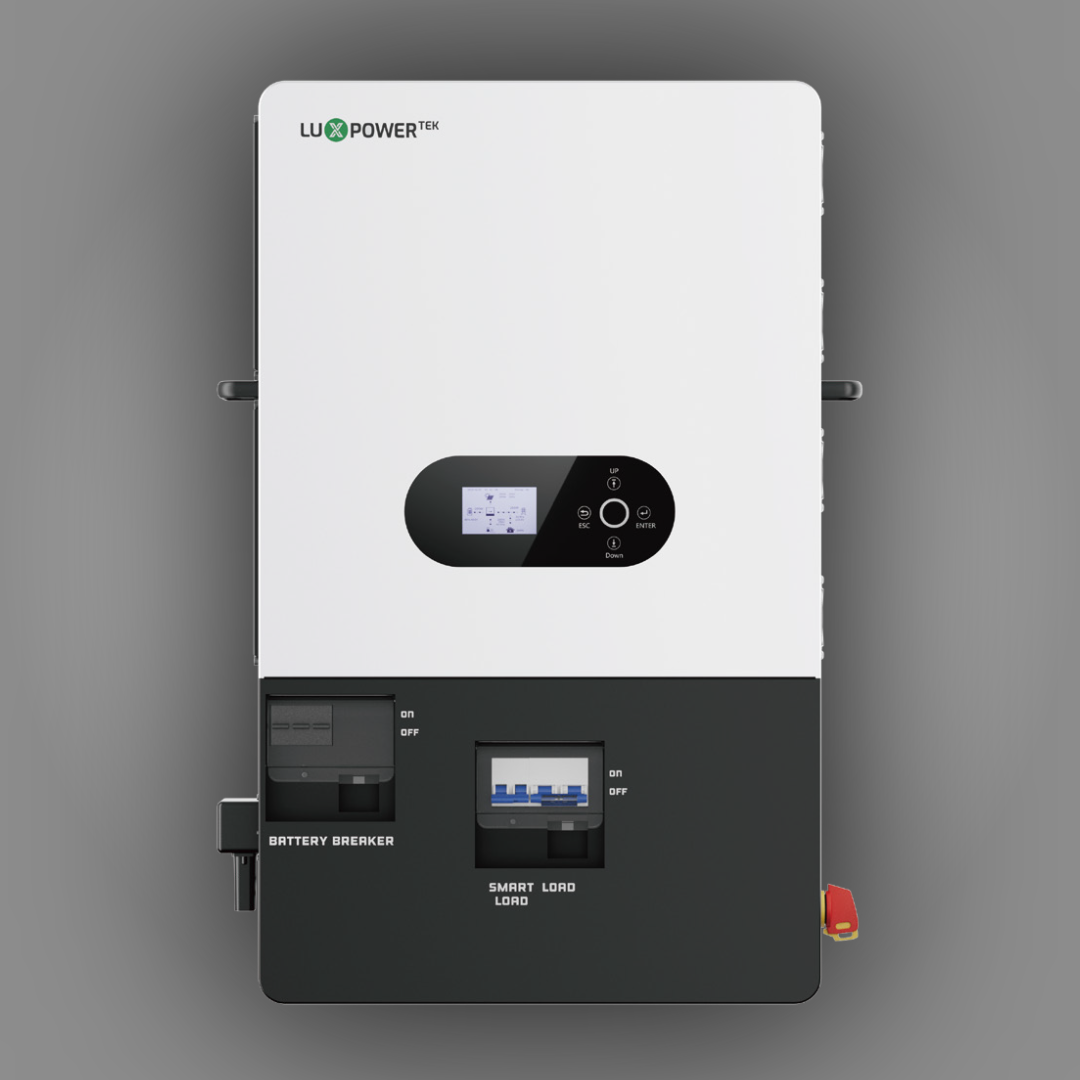

Lux Power 14kW Single Phase Inverter(SNA14000)
Couldn't load pickup availability
LuxPower 14 kW Single-Phase Hybrid Inverter (SNA14000)
Brand: LuxPower
Model: SNA14000
Type: Single-Phase Hybrid Inverter
Application: Large residential & commercial solar systems
⚡ Key Features
-
Powerful 14 kW continuous output for high-demand homes and businesses
-
Hybrid operation: solar + battery + grid + generator
-
Large dual MPPT array capability with high PV input power
-
Wide PV voltage window for flexible string configurations
-
Compatible with 48 V / 51.2 V lithium batteries
-
Fast, UPS-grade switching (<10 ms)
-
Independent essential & non-essential load ports
-
High charge/discharge capability for larger battery banks
-
Parallel operation supported for system scaling
-
Built-in Wi-Fi / RS485 / CAN for monitoring and BMS communication
📐 Specifications
| Specification | Value |
|---|---|
| Rated Output Power | 14 000 W (14 kW) |
| AC Output Voltage | 230 V AC (Single Phase) |
| Max PV Input Power | Up to 28 000 W (28 kW) |
| MPPT Inputs | 2 MPPT / 4 Strings |
| PV Voltage Range | 100–480 V DC (MPPT approx. 120–385 V DC) |
| Battery Voltage | 48–51.2 V |
| Max Charge/Discharge Current | Up to ±250 A (battery side, model-dependent) |
| Max Grid Input Current | 100 A |
| Transfer Time | < 10 ms |
| Parallel Capability | Supported (system-dependent) |
| Cooling | Intelligent fan cooling |
| Enclosure Rating | IP20 (indoor) |
| Communication | Wi-Fi, RS485, CAN |
| Generator Input | Supported |
🏡 Applications
-
Large homes with multiple high-load appliances
-
Businesses, offices, workshops, and commercial premises
-
Hybrid solar-battery systems
-
Off-grid, grid-tie, and zero-export installations
-
Systems requiring future expansion
🏷️ Quality & Support
The LuxPower SNA14000 delivers exceptional output, flexible solar input design, and high-efficiency hybrid operation. With strong load handling, advanced protection features, and scalable architecture, it is ideal for heavy-duty residential and commercial energy systems.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
