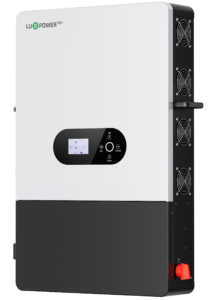

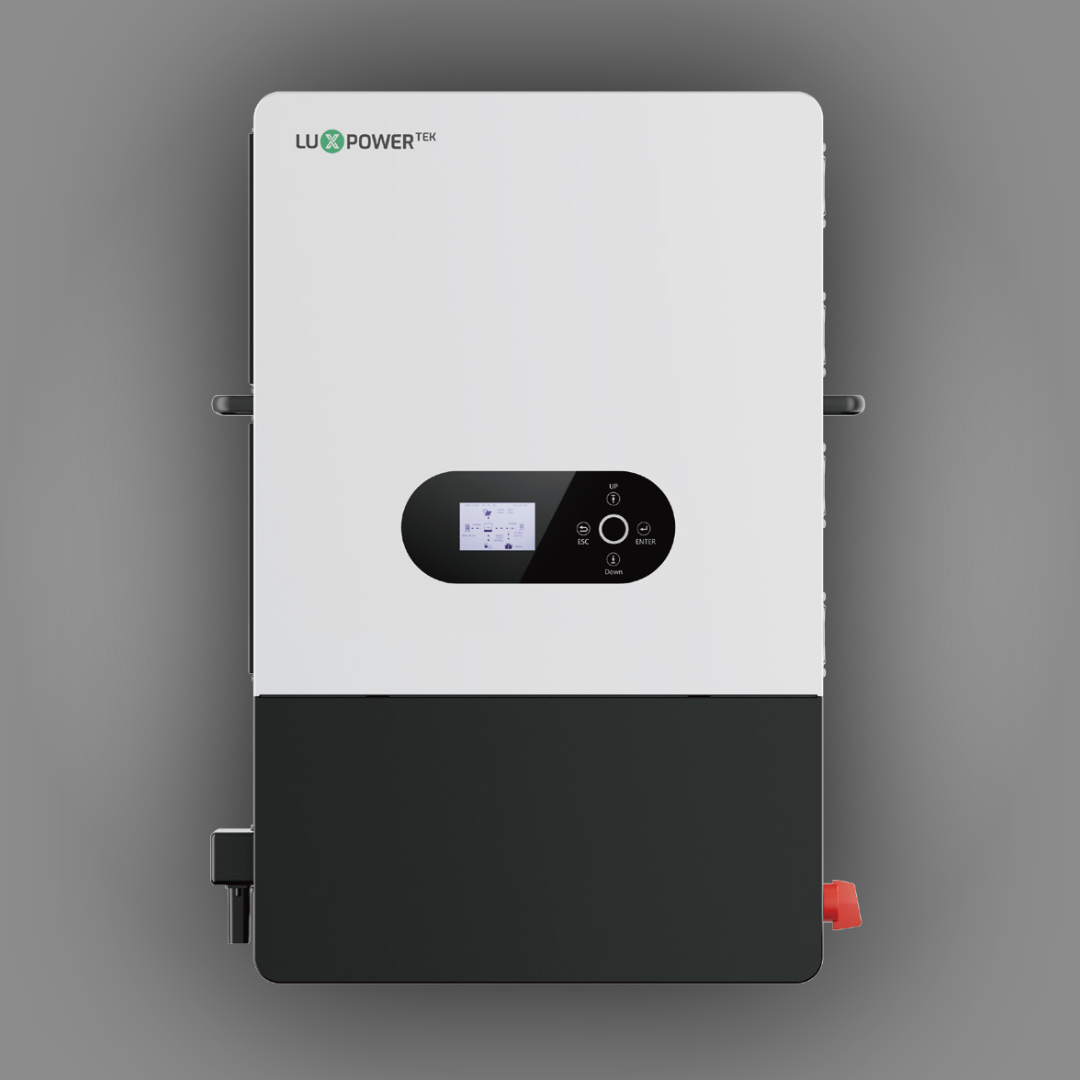

Lux Power 12kW Single Phase Inverter(SNA12000)
Couldn't load pickup availability
🔌 Product: LuxPower 12 kW Single-Phase Hybrid Inverter (SNA12000)
Brand: LuxPower
Model: SNA12000
Type: Single-Phase Hybrid Inverter
Application: Large residential & small commercial solar systems
⚙️ Key Features
-
12 kW continuous AC output for high-demand homes or small businesses
-
Hybrid input: solar + battery + grid + generator
-
Dual MPPT inputs with up to 24 kW PV handling
-
Wide PV voltage range for flexible array design
-
Compatible with 48 V / 51.2 V lithium and other supported batteries
-
Fast UPS-grade switching (<10 ms)
-
Independent ports for essential and non-essential loads
-
High charge/discharge capability for large battery banks
-
Supports generator input and smart load management
-
Parallel-ready for system expansion
-
Built-in monitoring: Wi-Fi / CAN / RS485
📐 Specifications
| Specification | Value |
|---|---|
| Rated Output Power | 12 000 W (12 kW) |
| AC Output Voltage | 230 V AC (single phase) |
| Max PV Input Power | 24 000 W (24 kW total) |
| MPPT Inputs | 2 MPPT / 4 strings total |
| PV Voltage Range | 100–480 V DC (MPPT window approx. 120–385 V DC) |
| Battery Voltage | 48 V / 51.2 V nominal |
| Max Charge/Discharge Current | Up to ±250 A (battery side) |
| Max Grid Input Current | 100 A |
| Transfer Time | < 10 ms |
| Parallel Capability | Multiple units supported (varies 3–16 per system) |
| Cooling | Intelligent fan cooling |
| Enclosure Rating | Indoor rated (IP20) |
| Communication | Wi-Fi, RS485, CAN |
| Generator Support | Yes |
🏡 Applications
-
Large residential homes with heavy loads (geysers, ovens, pumps)
-
Small commercial / office environments
-
Hybrid solar + battery systems
-
Off-grid and grid-tie setups
-
Systems requiring scalable expansion
🏷️ Quality & Support
The LuxPower SNA12000 is engineered for robust hybrid operation, offering high power output, strong PV capabilities, efficient charging, and reliable backup performance. With flexible battery compatibility, advanced monitoring, and parallel expansion options, it serves as a powerful and future-ready solution for modern solar energy systems.
